I. GENERAL INFORMATION
The MINI two-channel receiver series is designed to work with gate controllers, roller shutters and other
automation devices where a control pulse is required. It provides a simple and inexpensive way to extend
the functionality of the installation of a remote control. The small dimensions allow the receiver to be
mounted inside Φ60 installation boxes or larger or inside the enclosures of other automation devices.
II. TECHNICAL DATA
ź memory 200 remotes RDA868MHz
ź frequency 868MHz
ź power supply 12...24V AC/DC
ź outputs 1xNO/NC + 1xNO, 1A/24V AC/DC
ź dimensions 46 (68 with mounting brackets) x46x22mm
ź operating temperature -20°C to +55°C
ź assembly in an installation box Φ60 or larger inside the housings of other automation
devices
descriptions of screw terminals
12-24V
power
receiver outputs
NC1NO1 C1 NO2 C2

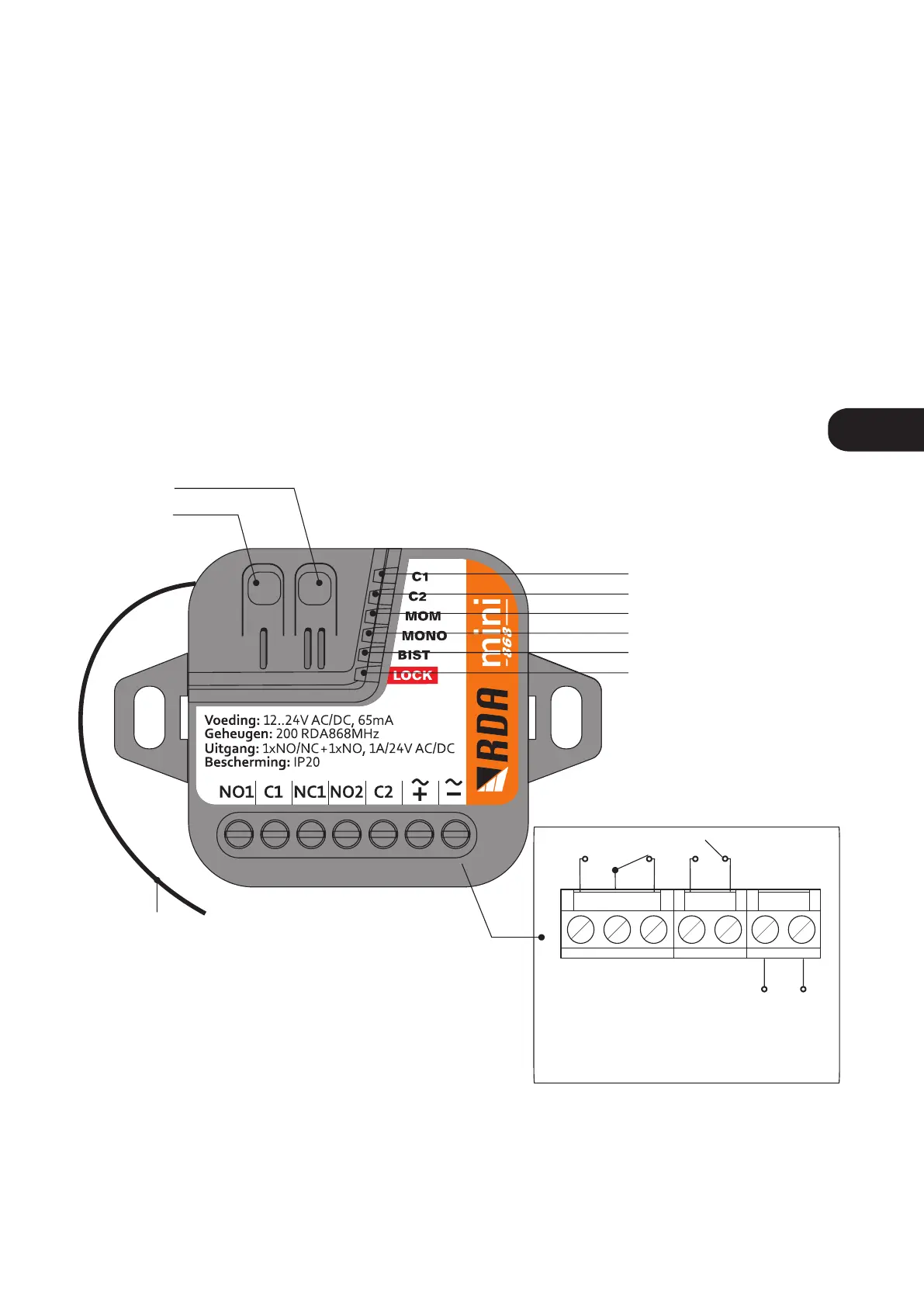

Fig. 1. View of the receiver
with a description of the terminals.
C1 LED red
C2 LED red
MOM LED yellow
MONO LED yellow
BIST LED yellow
LOCK LED red
C1 button
C2 button
antenna
ENEN
