Re S.p.A. TL01-A
03/07/12 9/13
E.M.D. (Micrometrical Electronic Movement)

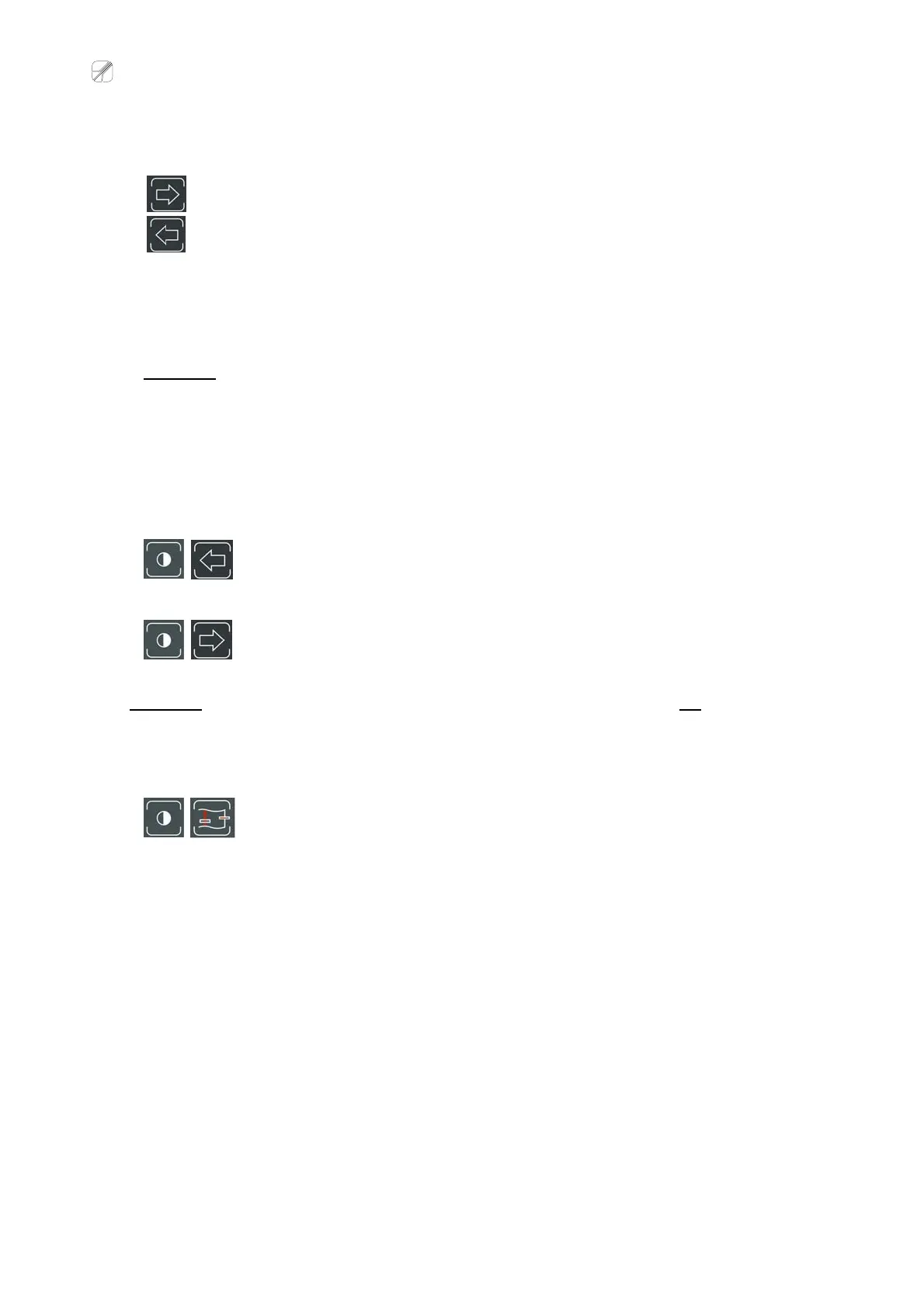

If necessary, you can move the line or edge to follow from ±0,1 to ±14 millimetres, from the position
indicated by the laser.
Simply press the right arrow for a positive movement,
or the left arrow for a negative movement.
Once a certain movement value is exceeded (±50% ca. of the viewing area set), the laser indicator
will start flashing.
The movement value will be reset automatically when you access the change the viewing area
function.
Attention! When the line reading mode is selected, the E.M.D. function is blocked each time that the
LED that signals the lack of the index line is active (LED on).
INTERRUPTED LINE FUNCTION:
You can activate the interrupted line function so that when the print is not present, the belt guide does
not perform any adjustment, but it remains in stand-by until the line appears again. This option is
available only if the line reading has been selected.
To activate this function keep the calibration/contrast and the left arrow keys pressed
at the same time. The line reading LED will start flashing, indicating that the function
is active.
To disable the function keep the calibration/contrast and the right arrow keys pressed
at the same time.
Attention! If this function is active, the wait time of the belt guide system must not be set (infinite wait
time) and the Work Zone of the belt guide must be less than 100.
SW VERSION:
Press the calibration/contrast and line/edge keys contemporaneously to display the
Sw version of the TL01-A.
