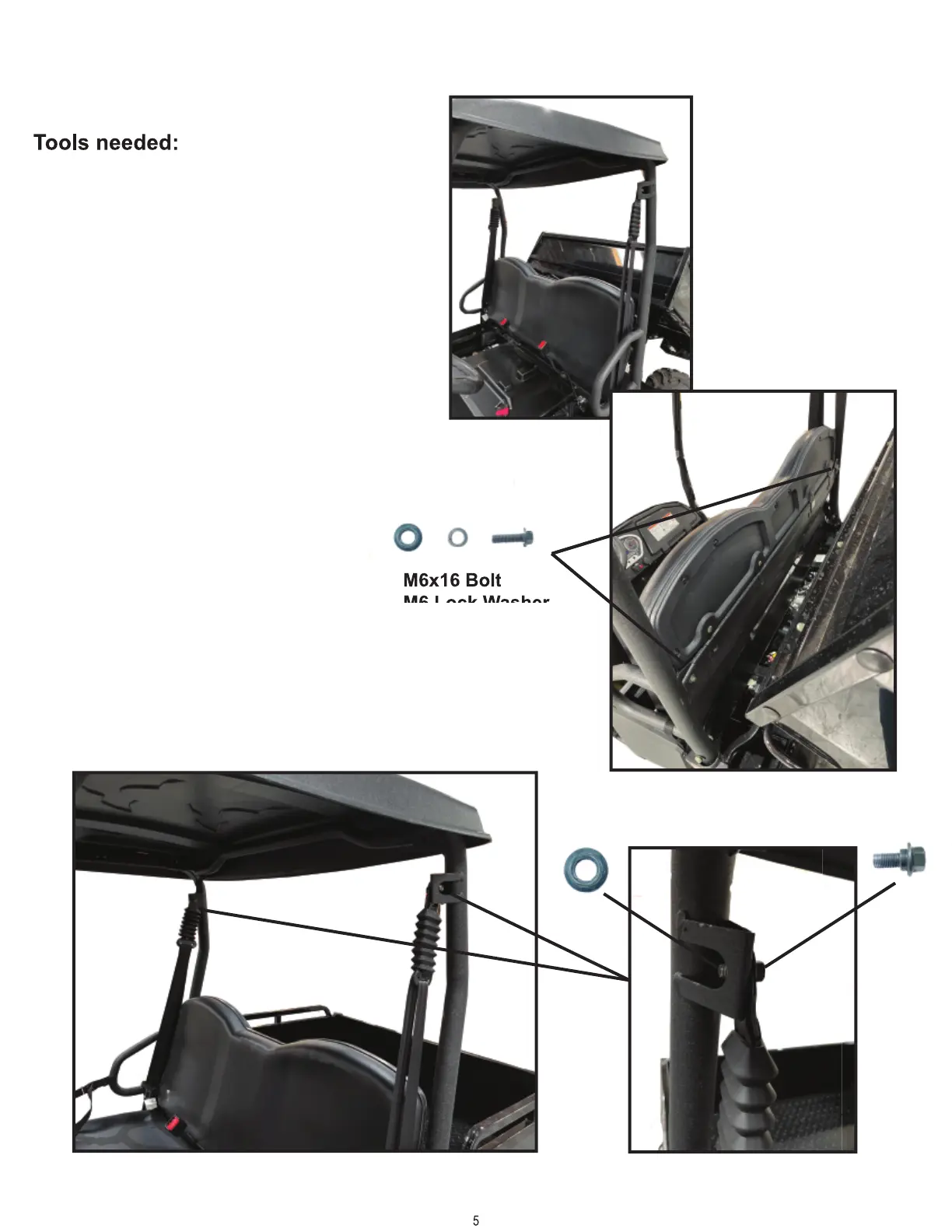

SEAT BACK AND SEAT BELTS INSTALLATION
1. Pull rear bed latch so bed is in
the dump position.
2. Attach each end of seat back to
roll cage assembly using M6x16 Bolts,
M6 Lock Washers and M6 Flat
Washers.
NOTE: ensure seat back is installed
with curved side facing up.
3. Attach seat belt assembly to roll
cage using M10x15 shoulder bolts and
14mm lock nuts on both sides of the
UTV.
NOTE: Ensure seat belt bracket is
assembled with curved side facing the
center of the vehicle.
Dump Position
M6x16 Bolt
M6 Lock Washer
M6 Flat Washer
Reference Page 2 for hardware sizes
14mm
Lock Nut
M10x15
Shoulder Bolt
8mm Wrench
14mm Socket/ Wrench
To Next Page
