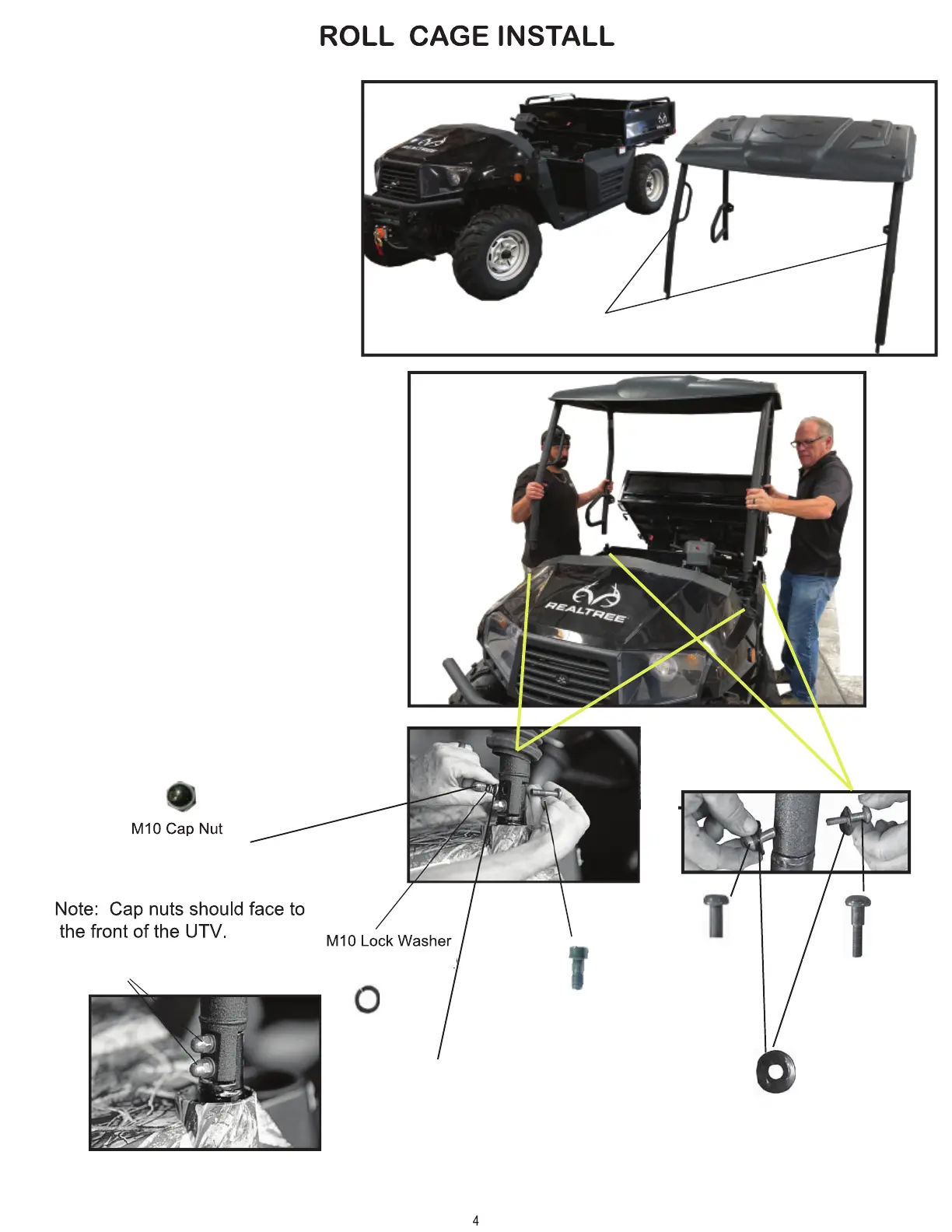

1. Orient Roll Cage Assembly next
to the vehicle with the grab bars facing
the forward and seat brackets facing
back.
2. With assistance, lift cage
assembly onto the mounting locations.
NOTE: the rear mounting points install
through the bars vertically and the
front points are side by side.
3. Install roll cage using provided
hardware. Specifications outlined
below. Do not tighten any hardware
until all hardware is in place.
Tools Needed:
8mm - Allen Head Wrench
16mm Socket/Wrench
Grab Bars
Reference Page 2 for hardware sizes
M10 Lock Washer
Curved Washer (Large)
M8x25-M10x16
Hex Button Bolt
M10x15
Hex Head Bolt
M10x15
Hex Bolt
To Next Page
