No. Ref. Number Description Quantity
1 ZANA Hood 1
2 ZAST Drum lid 1
3 ZASU Body 1
4 ZAND Inlet 1
5 ZASE Round ferrite 1
6 ACGN Cable gland nut 1
7 ZASW Switch 1
8 ZAPH 3M Cable and moulded plug (U.K.) 1
9 ZAMS Suppressor capacitor 1
10 ZAMI Cable gland 1
11 ZANU Drum lid seal 1
12 - M6 x 20 Hex Head Set Screw 3
13 ZACZ M6 Nut 3
14 - M6 x 20 Washer 9
15 ZAMN Motor and leads with gasket 1
16 - No. 8 x 3/4” Pozi Pan Screw 4
17 012206 M5 washer external shake proof 2
18 ZAMT P-Type Cable Clip 1
19 - M6 Self adjusting nut 3
20 BQNW M5 nut 2
21 ABXG M5 x 16mm Hex. head screw 1
22 ZAVA Cartridge filter 1
23 ZAVB Paper filter bag 1
24 ZAMV 100mm x 2m PVC hose, LH helix, per metre 2

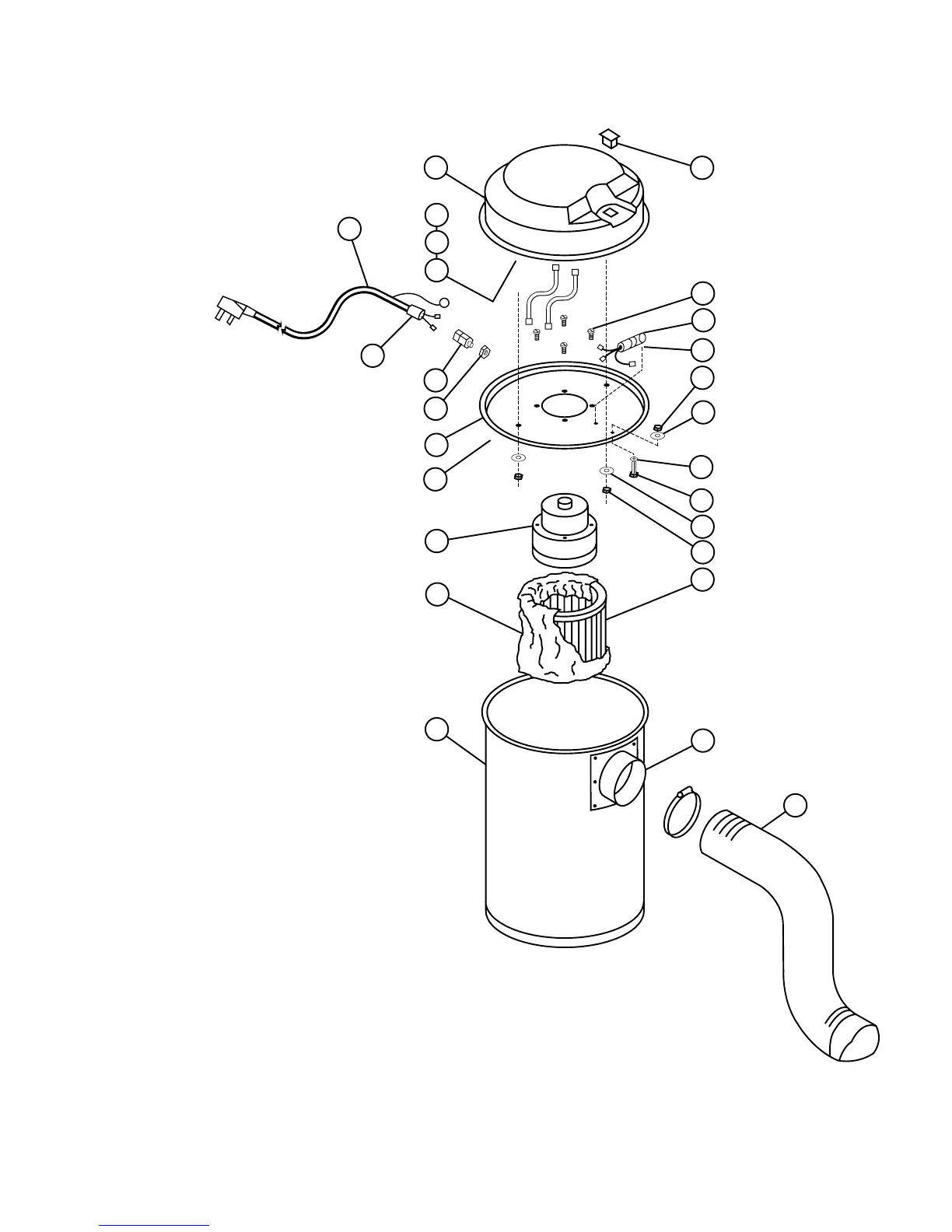

11. Parts Diagram & List - RSDE1
