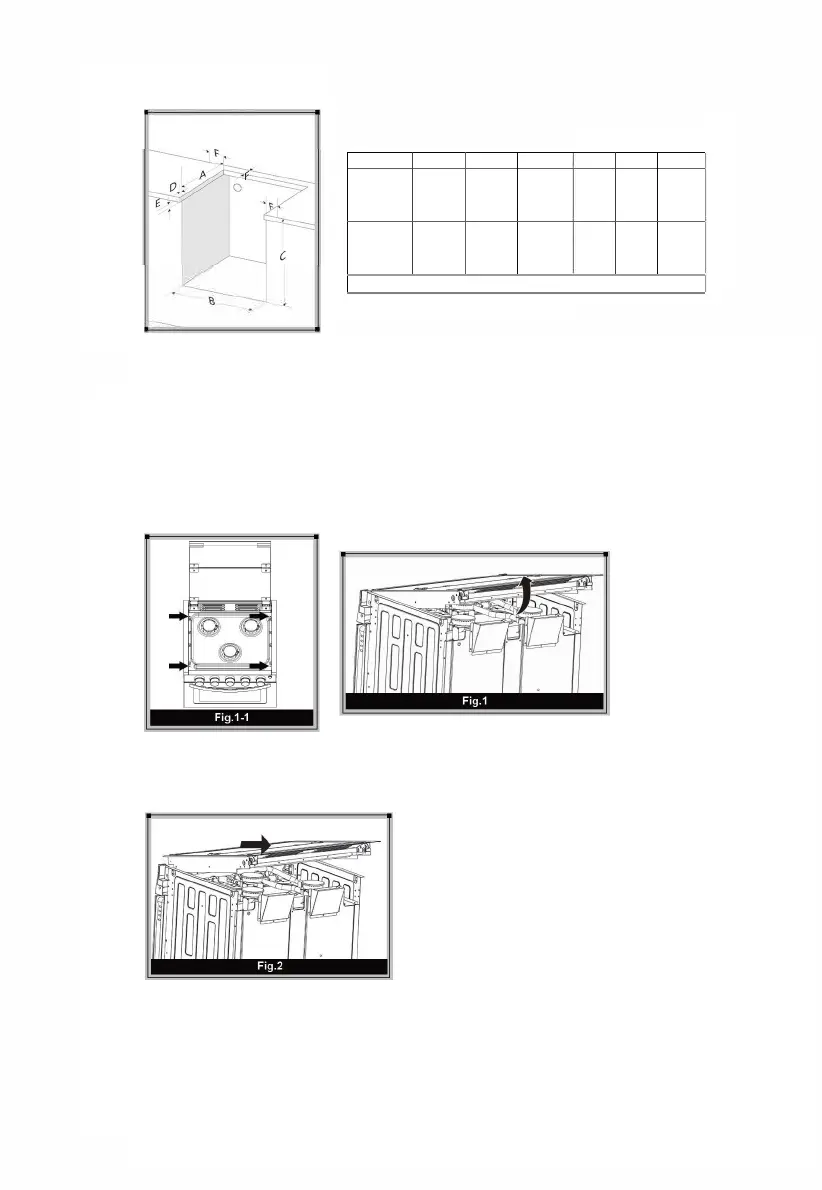

Cabinet and counter cutout:
Model
A B
C
D E
F
17"RV
0.94" 1.56"
2"
Range
17.75"
451mm
20.25"
514mm
16.12"
410mm
23mm
40mm
51mm
max. max.
min.
21" RV
0.94" 1.56"
2"
Range
17.75"
451mm
20.25"
514mm
20.06"
510mm
23mm
40mm
51mm
max. max.
min.
Above is the minimum cutout size
How to Install Gas Range Oven:
Once the gas line is in place and the cabinet has been
prepared in accordance with the dimensions previously
provided:
1. Remove packing material, tape, and any temporary labels
from your range, and unscrew the 4 screws marked on (Fig. 1).
2. Slightly push back the top glass cover assembly and lift
up to remove it from the range oven (Fig. 2).
3. Slide the range oven into the cabinet cavity. Verify that the
oven is level by using a "Level" tool. Confirm the oven is level
rear to front and side to side (Fig. 3).
12IPage
