9

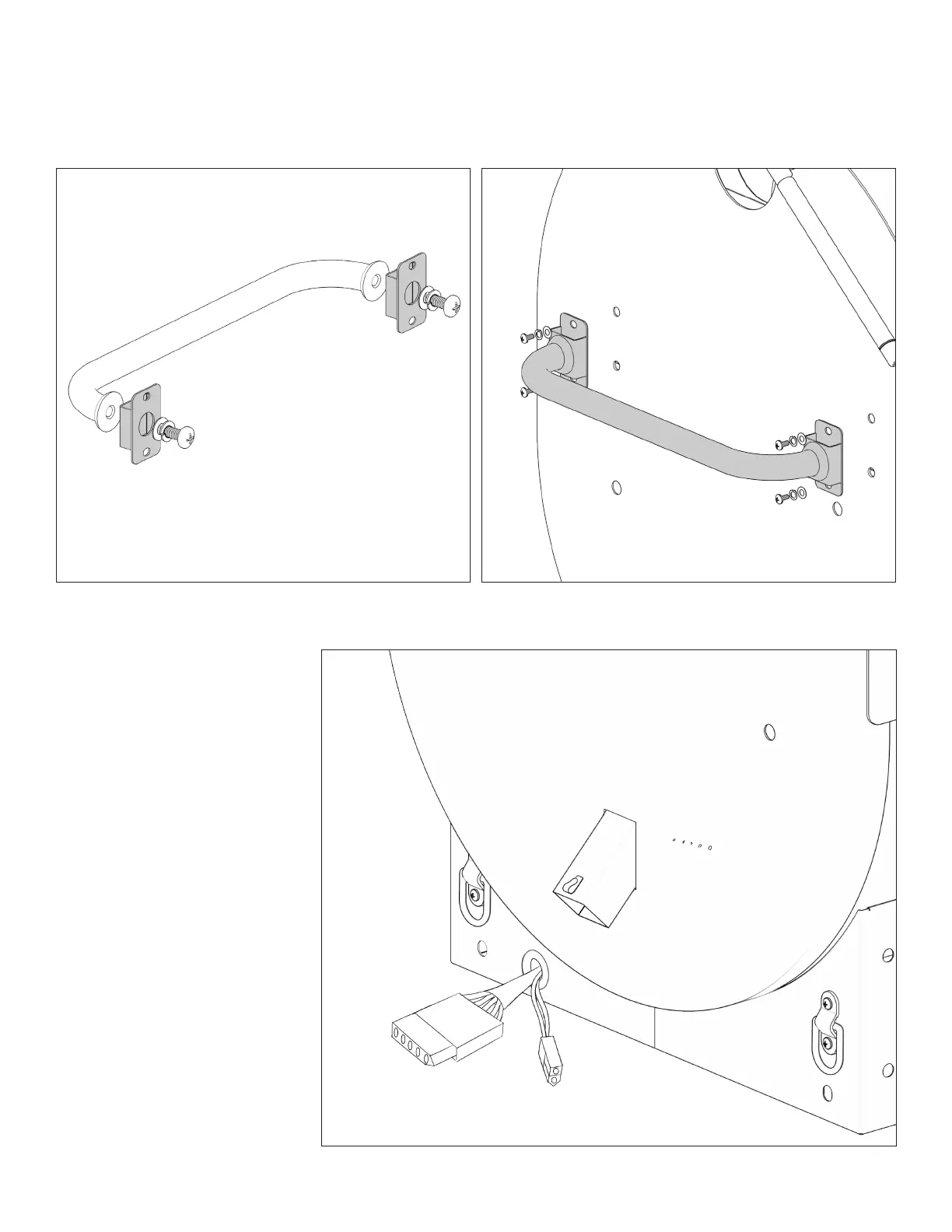

Pull Bar Installation
Step 7
A: Using pre-installed hardware, attach pull bar brackets (6) to both pull bars (5).
B: Attach pull bar handles (5) to each side of the grill body using bolt assembly order.
A B
Prepare RTD Wires for Grill Installation
Step 8
Pull all the slack from 5 pin
connector and RTD wire
connector through rubber
grommeted hole on left side of
grill body.
Be sure not to damage wiring
when installing grill body (1)
onto cart in next step.
To Next Page
