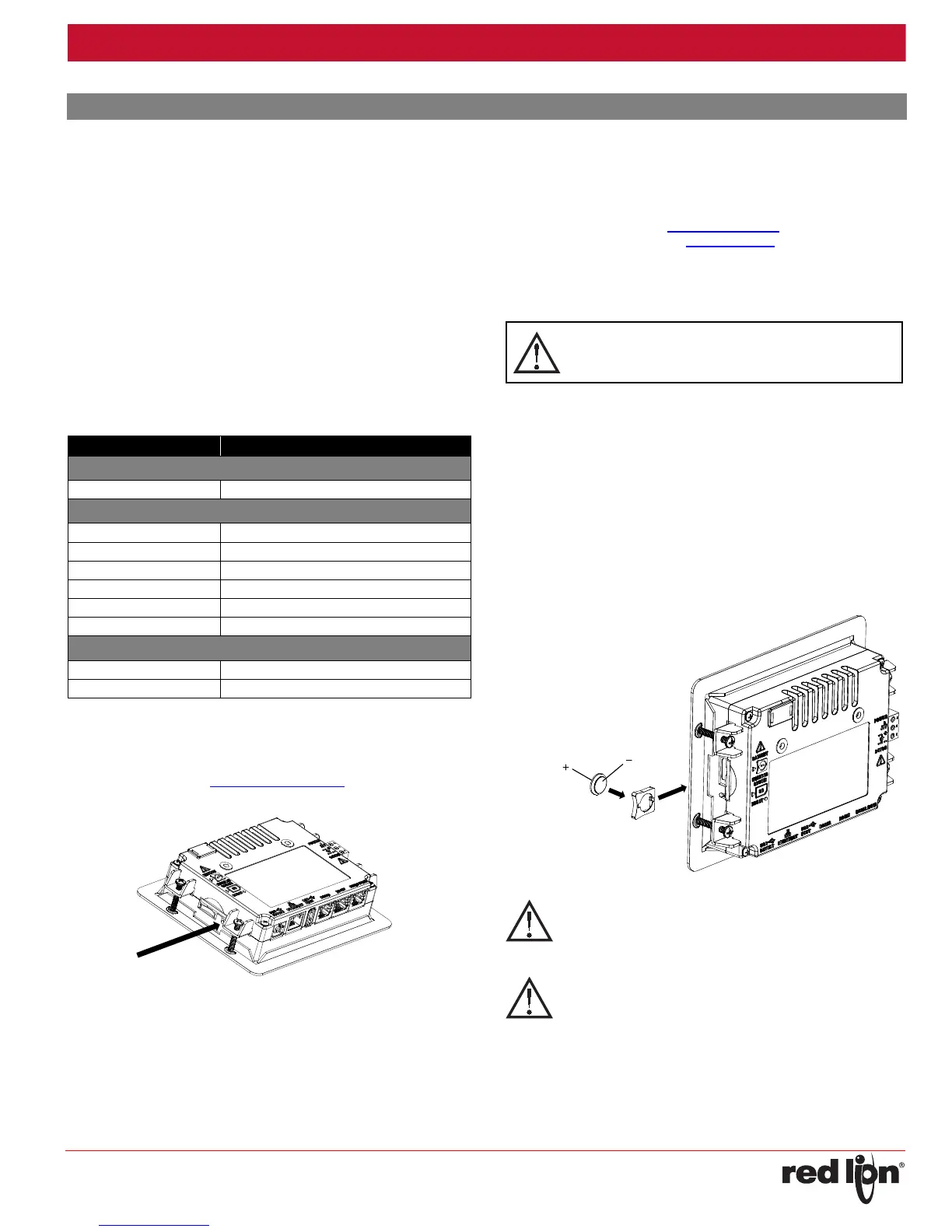

-7-
Released 2018-09-10 Bulletin No. CR3000- B
Drawing No. LP1042
CRIMSON
®
SOFTWARE
Crimson software is available as a no charge download from Red
Lion’s website. The latest version of the software is always available from
the website, and updating your copy is free.
DISPLAY
This operator interface uses a liquid crystal display (LCD) for
displaying text and graphics. The display utilizes an LED backlight for
lighting the display. The backlight can be dimmed for low light conditions.
The LED backlight has a limited lifetime. Backlight lifetime is based
upon the amount of time the display is turned on at full intensity. Turning
the backlight off when the display is not in use can extend the lifetime of
your backlight. This can be accomplished through the Crimson software
when configuring your unit.
FRONTPANELLEDS
There are three front panel LEDs that can be configured using
Crimson. Shown below is the default status of the LEDs.
FACTORYRESETBUTTON
The factory reset button located in the lower right area of the rear panel
can be used to access the system menu. Refer to Crimson 3.1 System
Menu Technical Note at www.redlion.net/TNIA37
for access procedure
and available options.
TOUCHSCREEN
This operator interface utilizes a resistive analog touchscreen for user
input. The unit will only produce an audible tone (beep) when a touch on
an active touchscreen cell is sensed. The touchscreen is fully functional
as soon as the operator interface is initialized, and can be operated with
gloved hands.
TROUBLESHOOTINGYOURCR3000
If for any reason you have trouble operating, connecting, or simply
have questions concerning your new CR3000 unit, contact Red Lion’s
technical support.
Email: support@redlion.net
Website: www.redlion.net
Inside US: +1 (877) 432-9908
Outside US: +1 (717) 767-6511
BATTERY&TIMEKEEPING
A battery is used to keep time when the unit is without power. The
battery of a CR3000 unit does not affect the unit’s memory, all
configurations and data is stored in non-volatile memory.
ChangingtheBattery
To change the battery of a CR3000, first remove power to the unit.
Remove the SD card if one is installed. Insert a small screwdriver into the
slot provided on the battery holder and pry the battery holder with battery
out of the unit. Remove the old battery from the plastic holder and replace
it with a new battery. Make sure the orientation of the battery is correct
and as shown in the diagram.
Re-install the battery holder with battery into the CR3000 unit. Using
Crimson or the unit’s keypad, enter the correct time and date.
CAUTION: Lithium battery. Danger of explosion if battery is
incorrectly replaced. Replace only with the same or equivalent
type recommended by the manufacturer.
Please note that the old battery must be disposed of in a
manner that complies with your local waste regulations. The
battery must not be disposed of in fire, or in a manner whereby
it may be damaged and its contents could come into contact
with human skin.
LED INDICATION
GREEN (▲)
STEADY Unit is powered.
BLUE (▬)
FLASHING
Unit is in the boot loader
OFF No SD card is present.
STEADY Valid SD card present.
FLASHING RAPIDLY SD card being checked.
FLICKERING SD card accessed.
FLASHING SLOWLY Incorrectly formatted SD card present.
RED (■)
FLASHING Data tag is in an alarm active state.
STEADY Data tag is in an alarm accepted state.
WARNING - EXPLOSION HAZARD - DISCONNECT POWER AND
ENSURE THE AREAS IS KNOWN TO BE NON-HAZARDOUS
BEFORE SERVICING/REPLACING THE UNIT AND BEFORE
INSTALLING OR REMOVING I/O WIRING AND BATTERY.
To maintain UL rating, battery must
be replaced with one listed in the
Specifications.
SOFTWARE/UNITOPERATION
