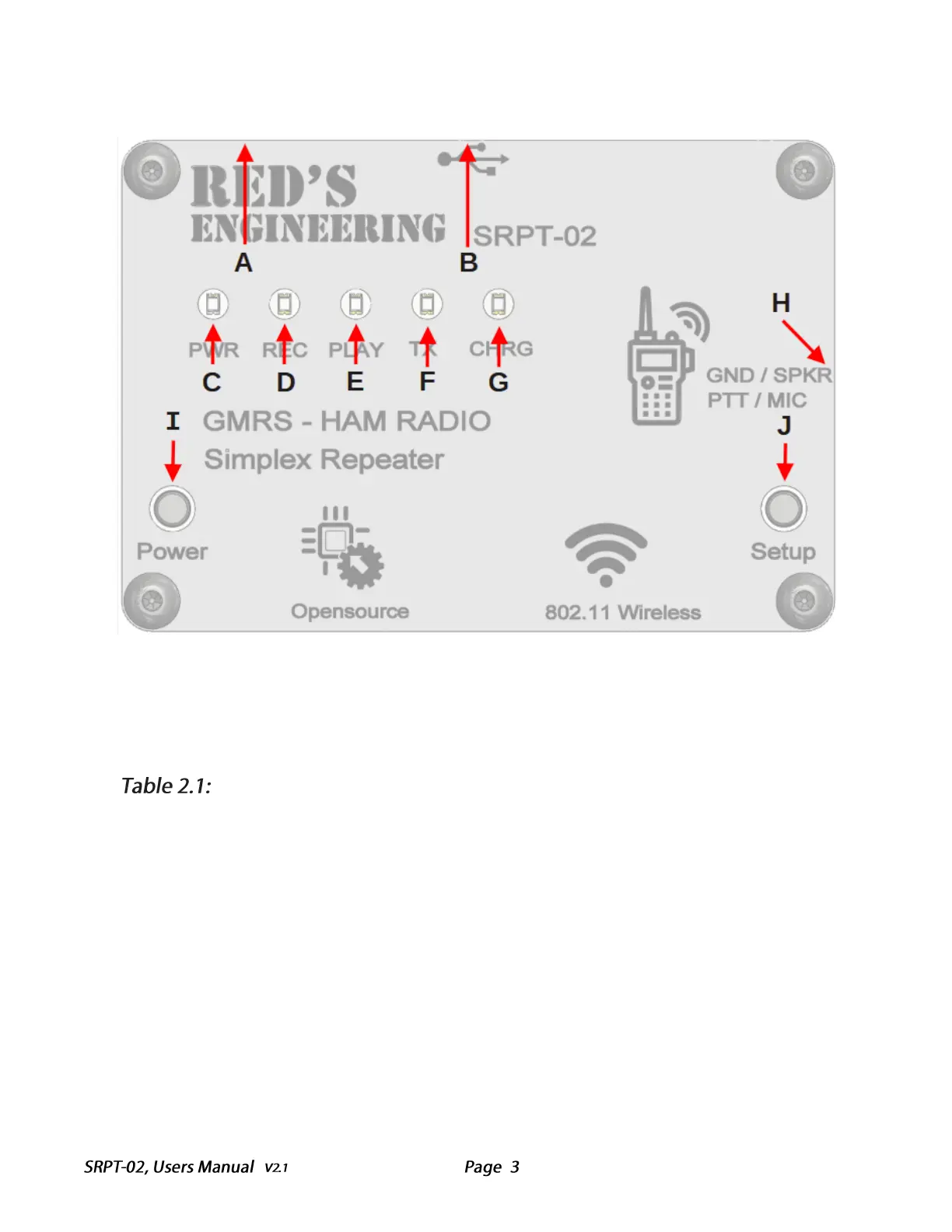

Figure 2.1
A. RESET: System reset switch
B. USB PWR: Power / Charge
C. PWR: Power indicator
D. REC: Voice recording indicator
E. PLAY: Voice playback indicator
F. TX: Radio transmitting indicator
G. CHRG: Battery charging indicator
H. Radio: Radio connector
I. Power: Power switch press on/off
J. Setup: Setup mode / enable wireless configuration
