Connection
What you will need:
▪ A 2-way radio, such as the UV-5R, or UV-K5
▪ SRPT-02 Repeater
▪ UV-5R Speaker/MIC cable (included with SRPT-02)

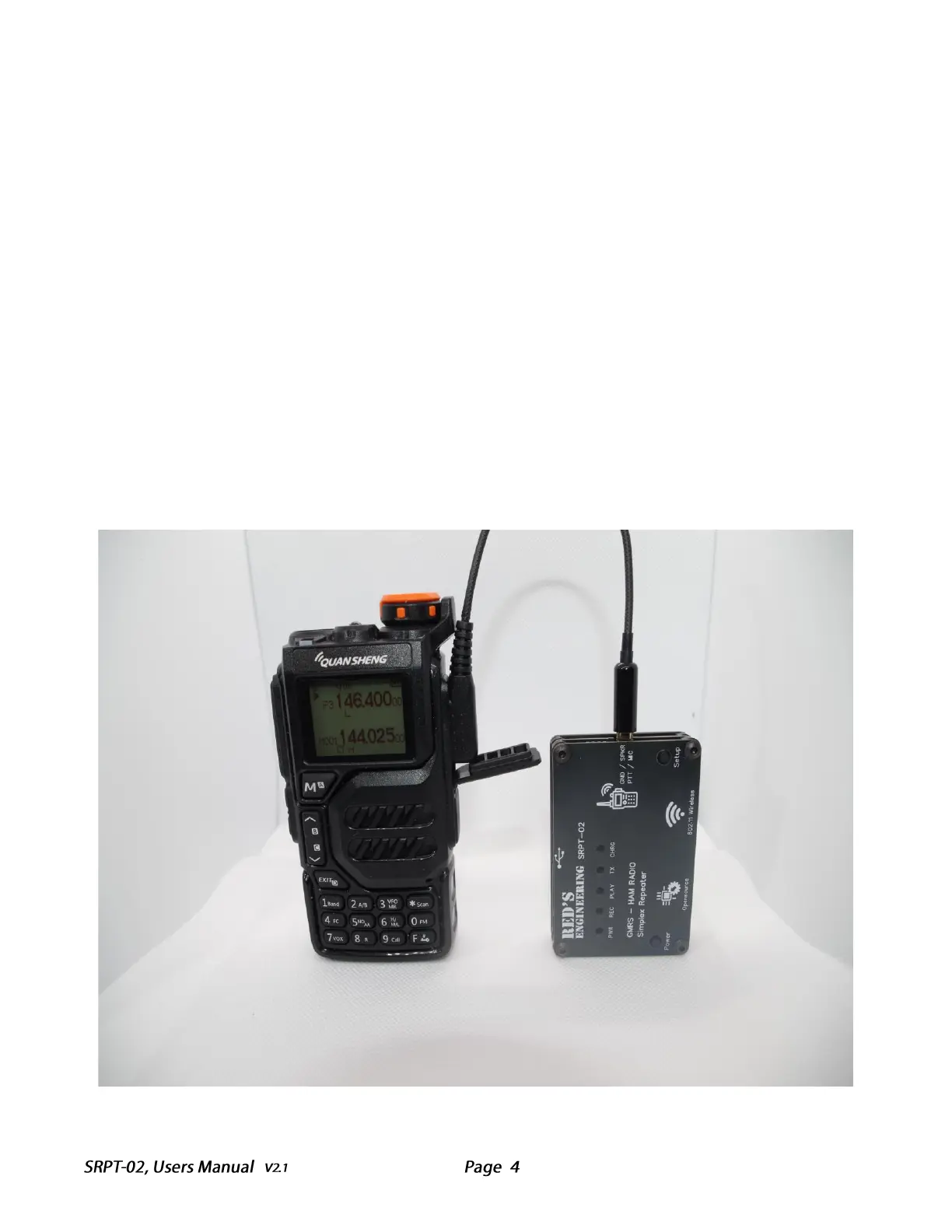

1. Connect the UV-K5 to the SRPT-02 using the supplied cable. See fig. 2.2
2. Enable the repeater by pressing the reset switch
3. Power on the SRPT-02 using the power button lower front of the repeater
4. For more advanced connections, see 3.5mm connection diagram below
