6 Installation of Rear Sump Components
The MAX
®
E-Series aquariums are divided into 2 parts, Aquarium and the Rear Sump that houses all of the filtration and circulation systems.
1. Detachable Surface Skimmer
2. Protein Skimmer
3. Media Rack
4. Carbon
5. Circulation Pump
6. Pump Outlet Nozzle
7. Filter Sponge
8. Multiport Bulkhead
9. Flow Grill / Plug
10. Accessory kit
11. Return pump outlet port (for upgrade)
12. Heater (not supplied)
13. Chiller Pump (not supplied)

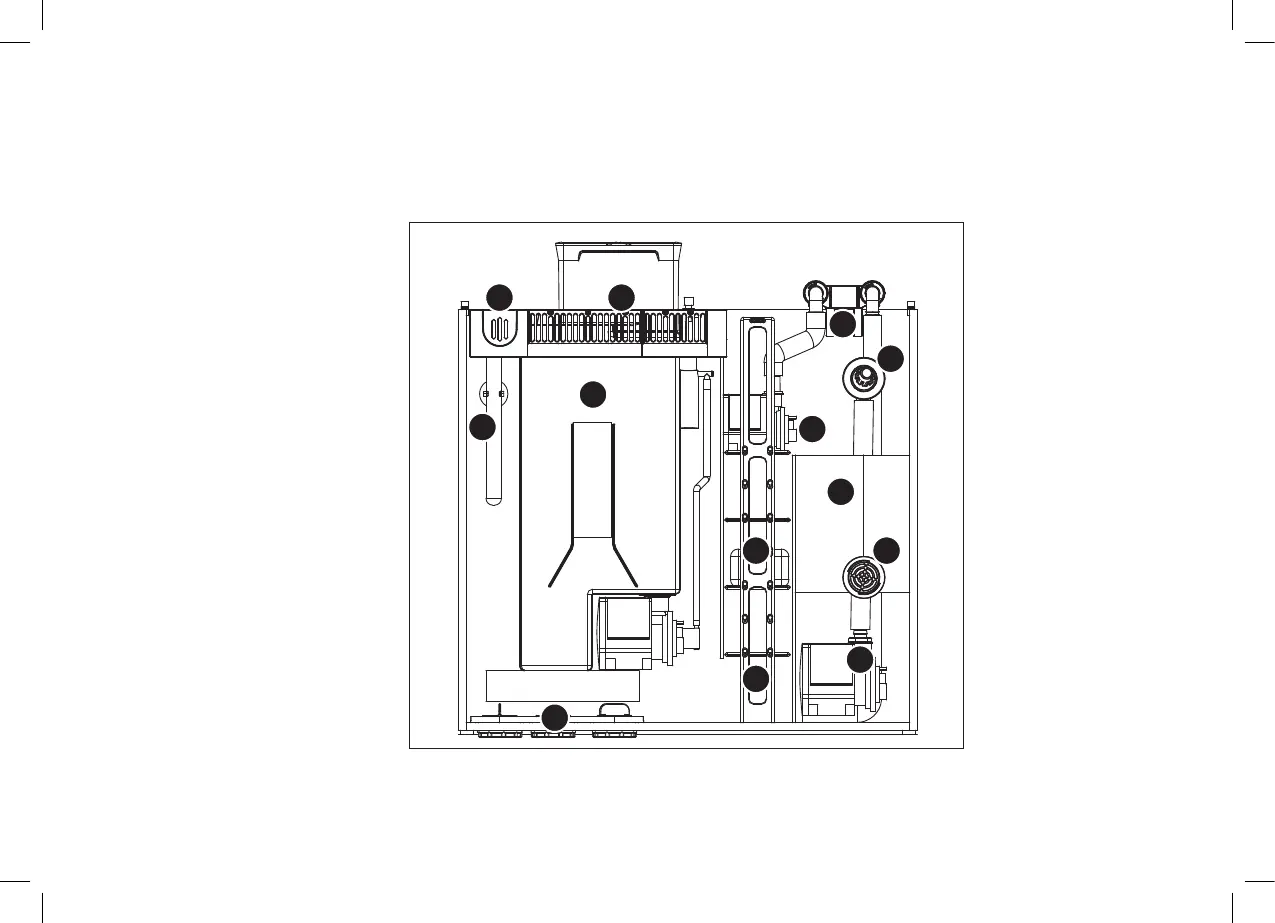

E-170 rear sump component assembly diagram shows
position of optional heater, chiller pump and piping
10
11
13
9
7
2
5
6
3
1
8
4
12
