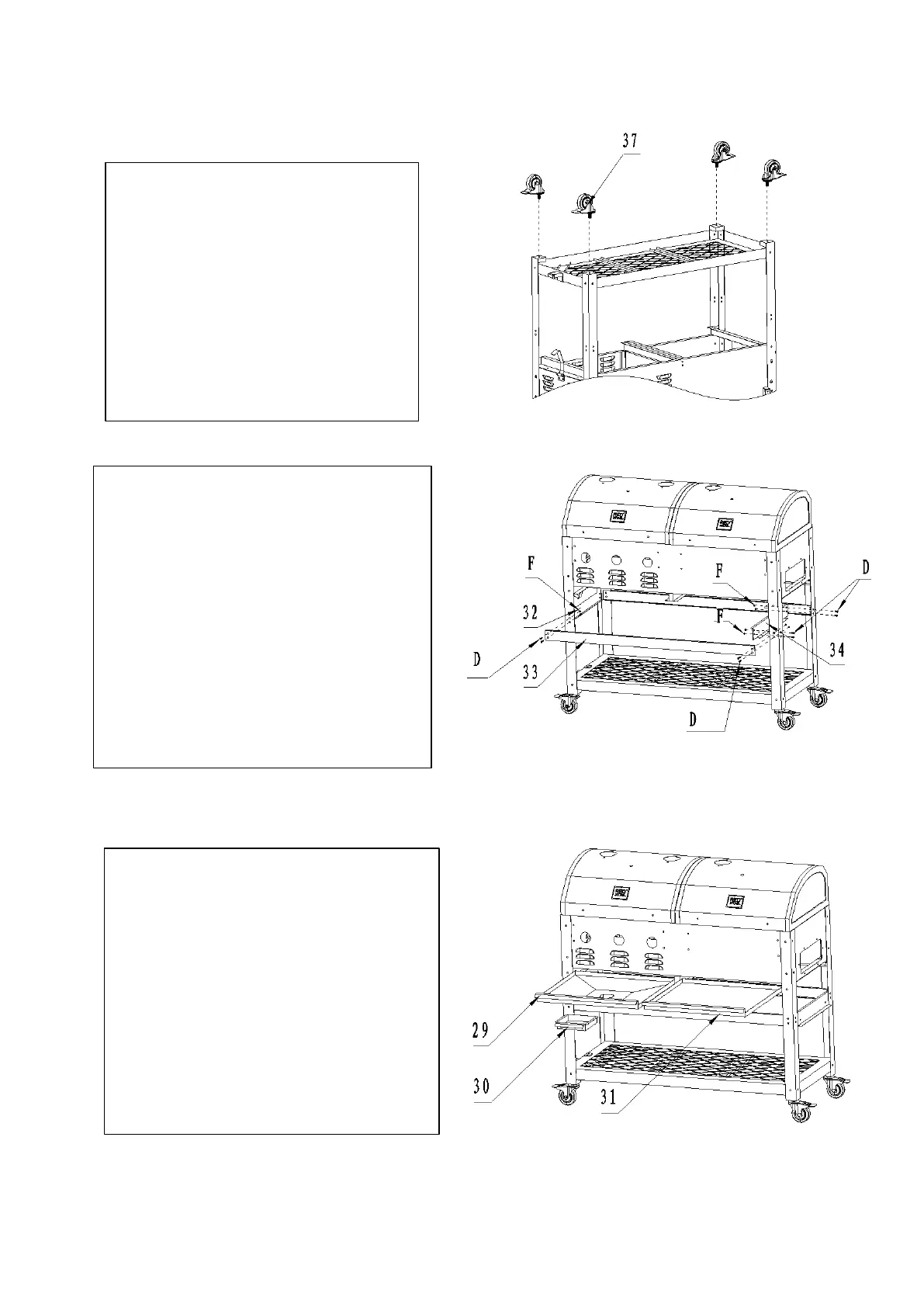

4 .
Tak
e ou t caster s ( 37 ) an d scre w the m
tightl y int o th e botto m hole s o f legs .
5 . Turn the grill assembly upright and attach
the Stabilizing Plate(Left)(32),Stabilizing
Plate(33),Stabilizing Plate(Right)(34) to the
legs. Us e hardwar e M6 x 12 bolts ( D)and M6
Nuts (F).
6. Instal l th e as h pa n ( 31 ) and Instal l th e
dri p pa n (3 0 ) unde r th e ga s section . Pu t
th e greas e tra y ( 29 ) unde r th e dri p pa n (3 0 )
