RED COMPACT 18 - Drawings and Technical Specifications

14
A
B
C
D
E
30°
F
A
B
D
60°
E
C
F
A
B
C
D
E
45°
F

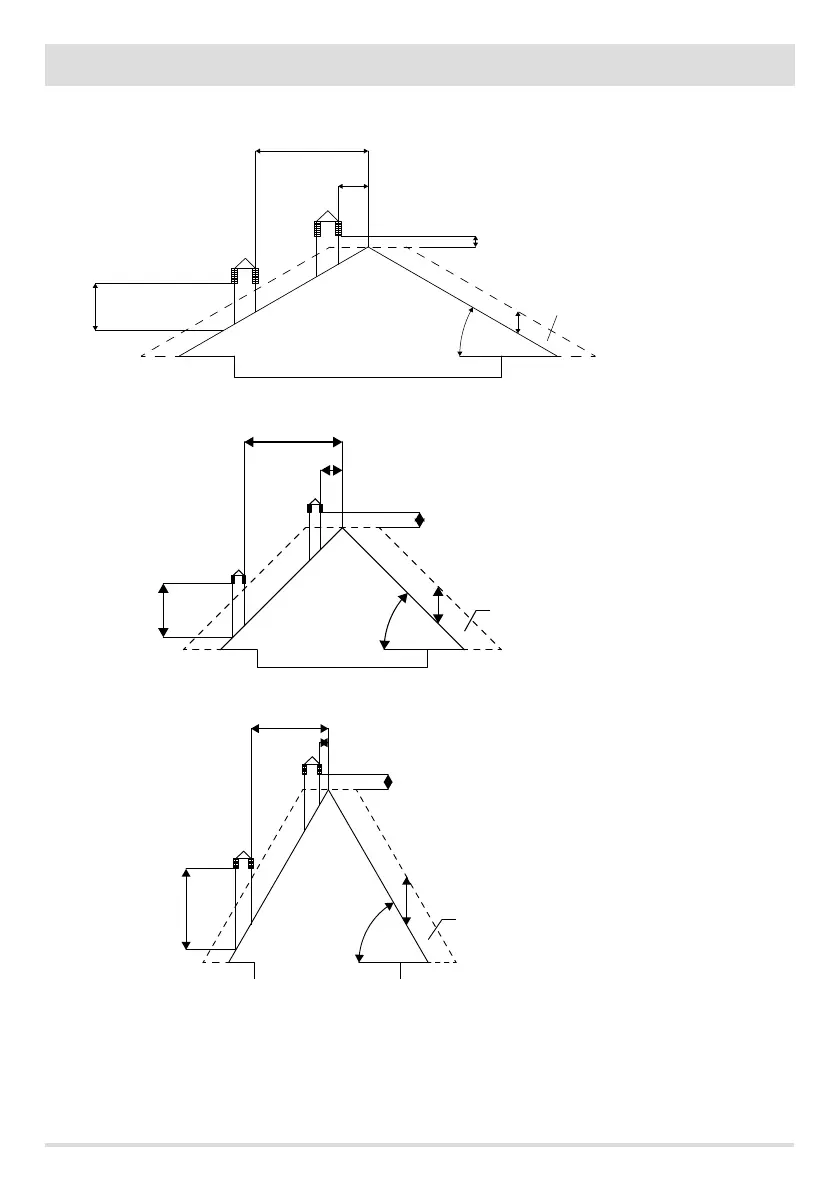

2-INSTALLATION INSTRUCTIONS
ROOF AT 30°
ROOF AT 45°
ROOF AT 60°
A = MIN. 1.30 metres
B = DISTANCE > 1.50 metres
C = DISTANCE < 1.50 metres
D = 0.50 metres ABOVE
HIGHEST POINT
E = 0.80 metres
F = REFLUX ZONE
FIGURE 4
A = MIN. 2.60 metres
B = DISTANCE > 1.20 metres
C = DISTANCE < 1.20 metres
D = 0.50 metres ABOVE
HIGHEST POINT
E = 2.10 metres
F = REFLUX ZONE
FIGURE 6
A = MIN. 2.00 metres
B = DISTANCE > 1.30 metres
C = DISTANCE < 1.30 metres
D = 0.50 metres ABOVE
HIGHEST POINT
E = 1.50 metres
F = REFLUX ZONE
FIGURE 5
