RED COMPACT 18 - 8-Panel Removal

29
U
V
V
U
V
x
x
x
x
8-PANEL REMOVAL
Technical Dept. - All rights reserved - Reproduction is prohibited

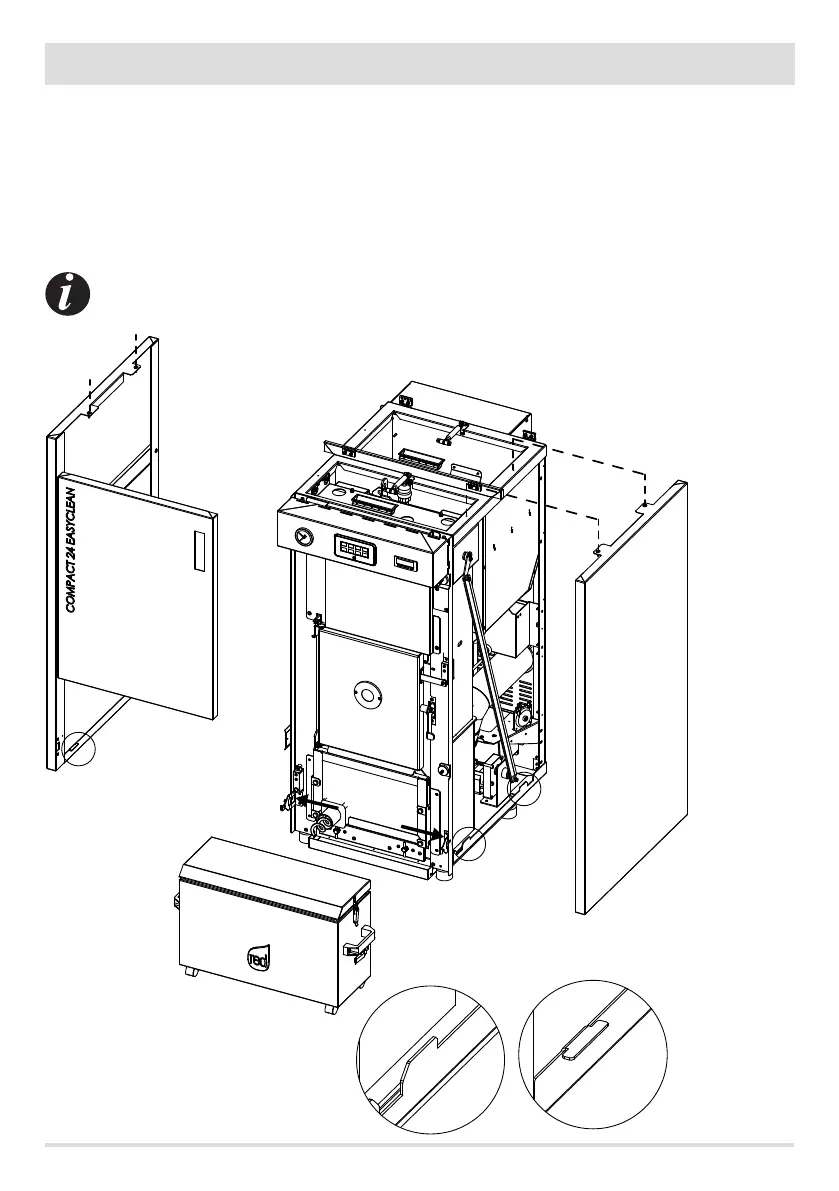

If any work is carried out on some components of the stove or if you are just cleaning it, you need to remove the side panels.
Remove the panels as follows:
• remove the trolley
• lift the two top covers
• open the rebox door
• remove the two top screws that secure the panel to the boiler
• lift the panel and let out the U-V interlocking systems
Note: on the left-hand side (where the door is xed as explained above), the panel and door are removed together.
The door can also be removed by taking o the hinges.
