12-MENU ENTRIES AND OPERATION
Technical Dept. - All rights reserved - Reproduction is prohibited

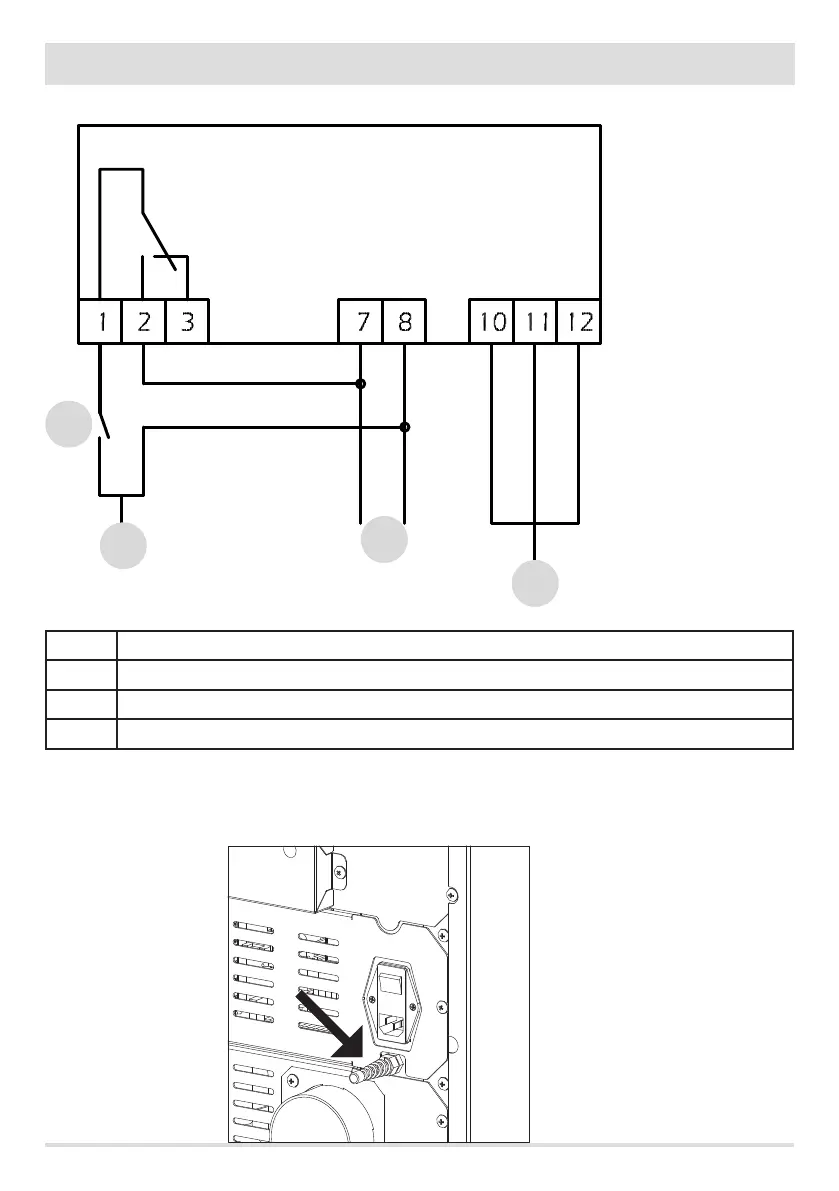

WIRING DIAGRAM OF THE TIMER (ASH REMOVAL SYSTEM)
1 TROLLEY PELLET SAFETY SWITCH
2 ASH CLEANING MOTORS
3 POWER SUPPLY 230 V AC
4 AUTOMATIC THERMOSTAT OPERATION
OPERATING MODE
The operating mode for hydro stoves is only AUTOMATIC (there is no manual operating mode available). The modulation of the ame is
controlled according to the "System conguration" by the room temperature probe located at the back of the appliance (see img.), by the
external thermostat, by the temperature of the water in the boiler or by the NTC probes.
