15-CLEANING AND MAINTENANCE
Technical Dept. - All rights reserved - Reproduction is prohibited
PERIODIC CLEANING PERFORMED BY A QUALIFIED TECHNICIAN
Cleaning pipes

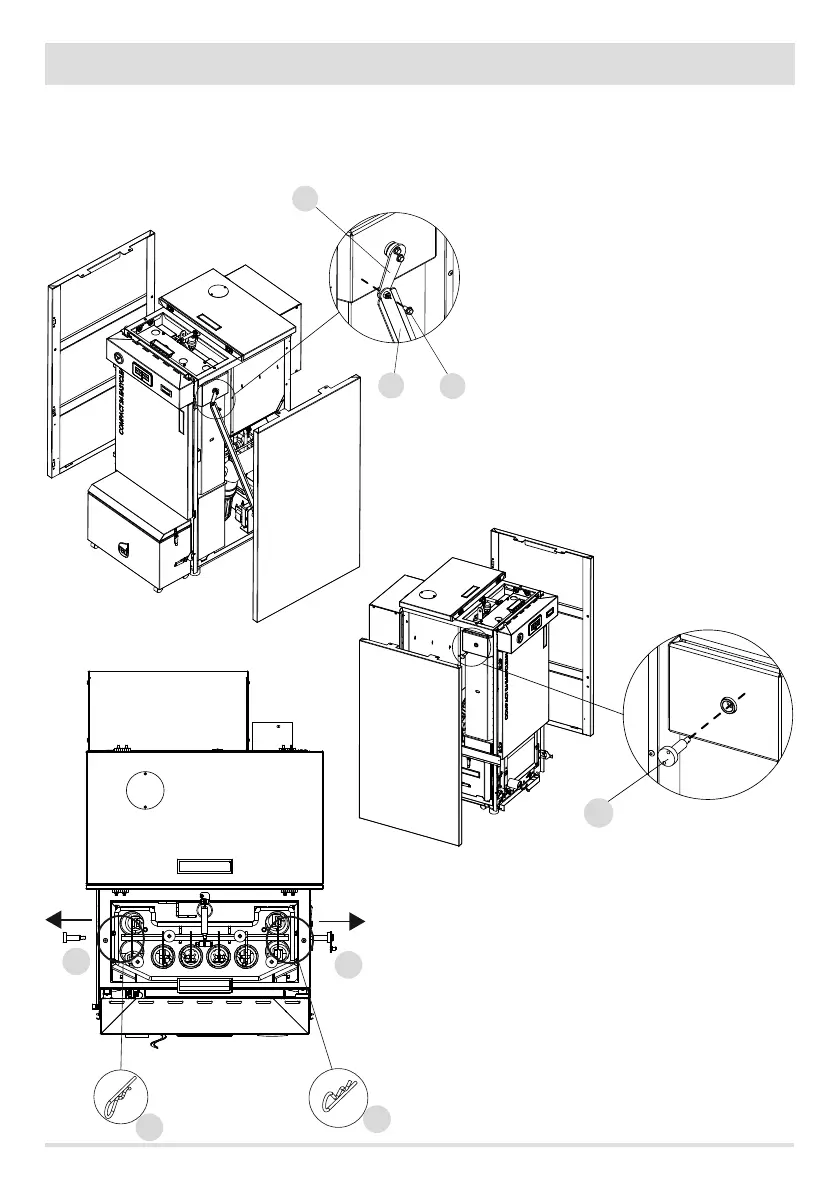

When the boiler is cold, lift the exchanger cover and the tank cover and remove the side panels (see the indications in the dedicated
paragraph). Unlock the fastening system of the turbulators as follows:
• Remove screw “r”
• Move lever “W” down to the ground
• remove the two elastic cotter pins “C1” and “C2”
• remove crank “K”
• remove pin “H” on the left-hand side of the boiler
