2 INSTALLATION GUIDE
Solar
Panel
Load
Fuse
30A
Fuse
20A
Fuse
Start
Battery
House
Battery
Twisted Wires
Current shunt
Common
ground
point
Loads
Battery
Sensor
240V AC
from mains
power
Remote
Monitor
Chassis
Earth
Not
supplied
Not
supplied
Not
supplied
BMS1215S2
Typical 12V Setup
*
* The size of this fuse relates to the total current draw of all the loads connected
to the House Battery, and should be rated slightly higher than this.
1
3
2
4
5
6
7
8
9
Chassis
Earth
+
-
+
+
-
-
+
-

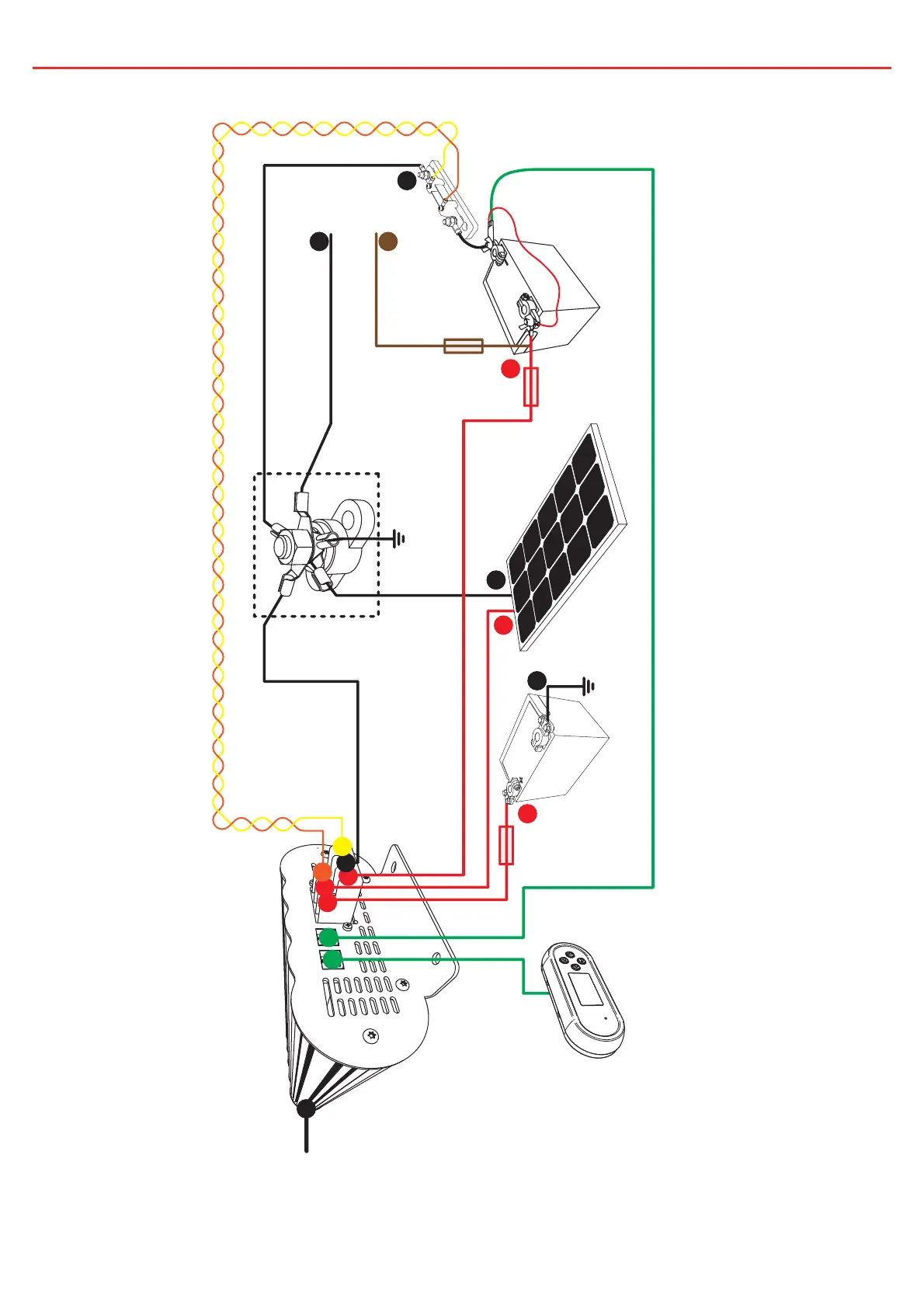

Figure 2.4.2 - Typical 12V setup.
19
