Redarc BMS1215S2 User Manual

2 INSTALLATION GUIDE
IMPORTANT
A partially shaded panel (or low-light conditions such as dawn or dusk) will
increase the target solar panel voltage level to match the maximum power point.
In this situation solar will be selected as a source however little or no current will
be fl owing into the battery.
i
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-

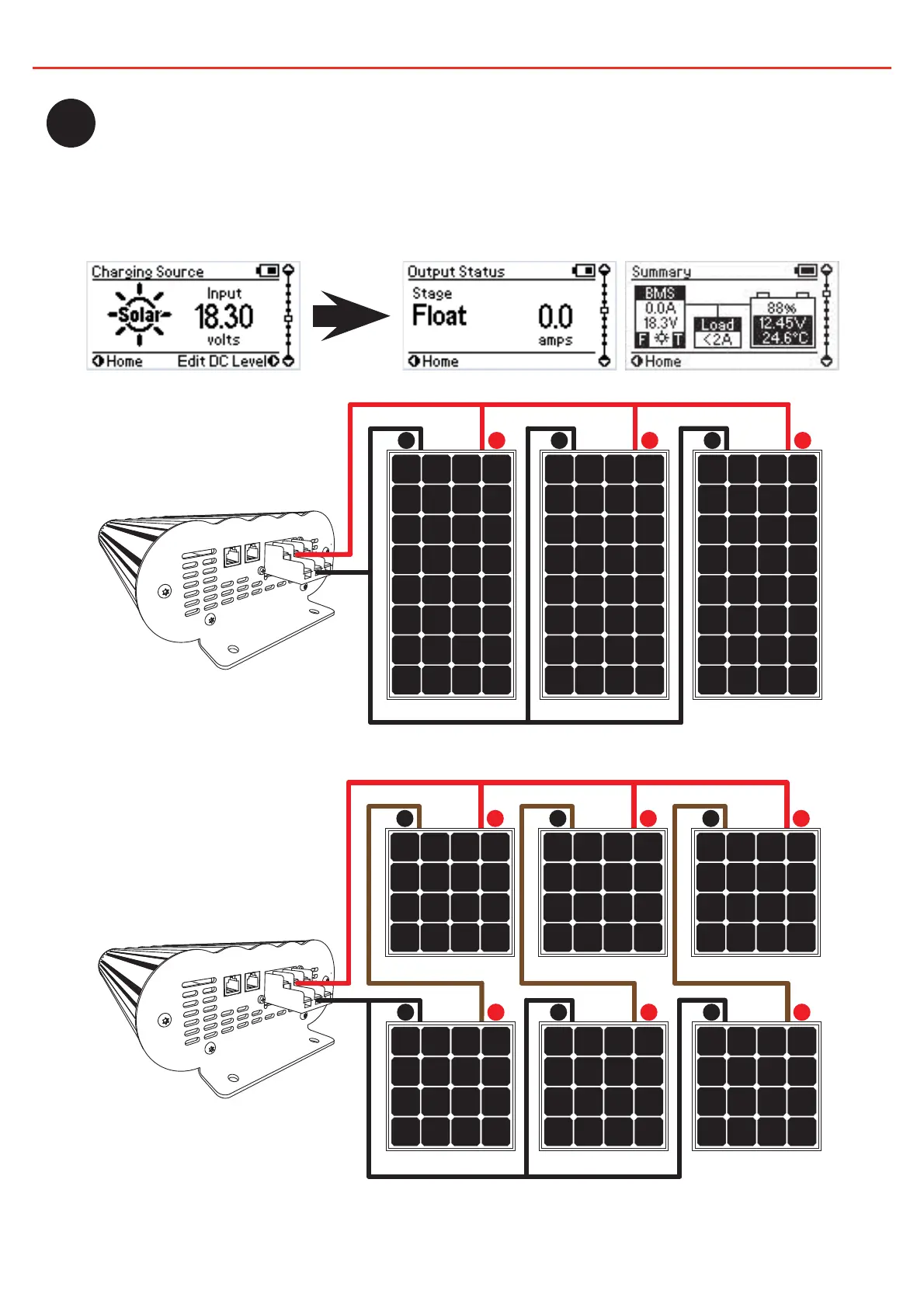

Figure 2.6.1 - Array of 12V Solar Panels
Figure 2.6.2 - Array of 6V Solar Panels
23
