13
2 INSTALLATION GUIDE
2.2.2 Mounting the Remote Monitor
The Remote Monitor should be mounted inside the caravan or RV using
the template provided inside the box. It is acceptable however to mount the
Remote Monitor in any convenient location, as long as it is protected from harsh
environments.
Figures 2.2.2.1 and 2.2.2.2 illustrate how to recess and wall mount the Remote
Monitor unit, Figure 2.2.2.3 illustrates removal of the Remote Monitor.
Recess
Use the template provided (Page 36)
to mark the position and drill and cut
the mounting holes into the wall.
Feed the Remote Monitor cable
through the hole and connect it to
the Remote Monitor.
Mount the Inner Assembly to the
wall using 4 suitably sized screws.
Clip the Front Face to the Inner
Assembly.

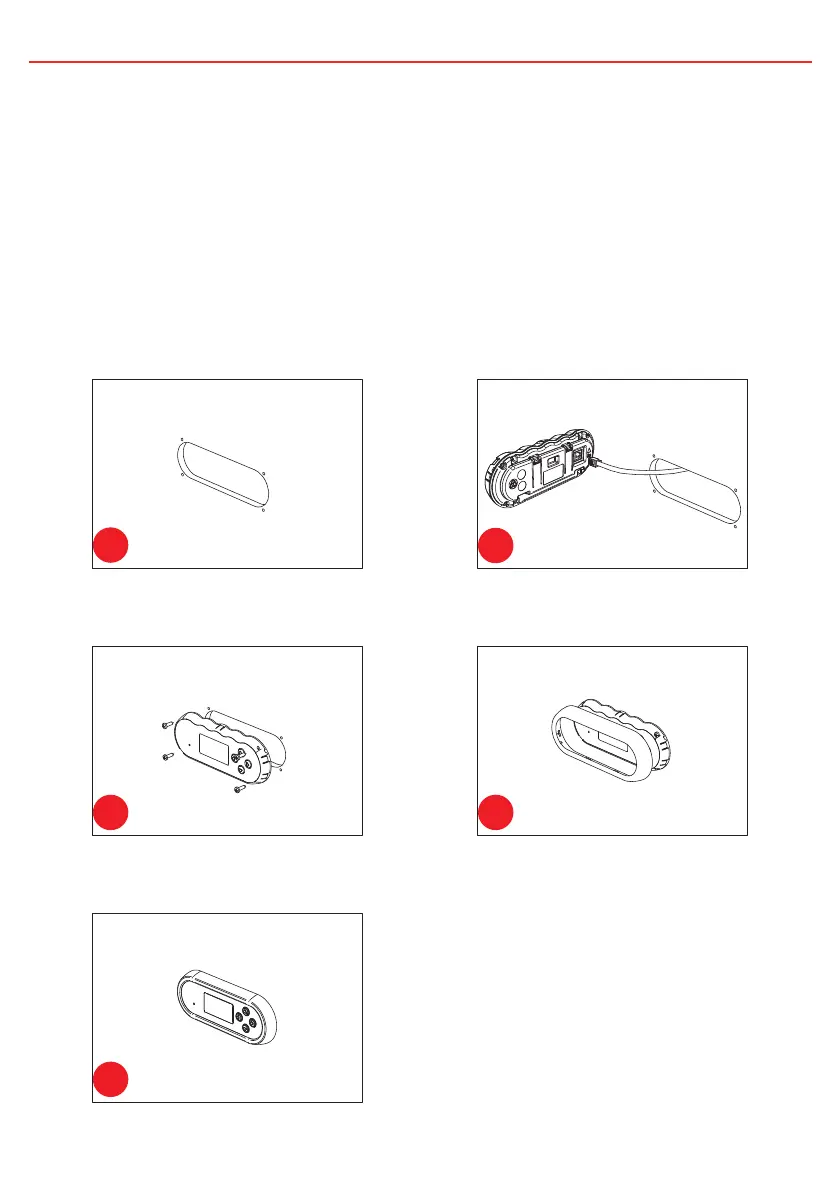

Figure 2.2.2.1 - How to recess the
Remote Monitor into the wall.
1
2
3 4
5
To Next Page
