Redarc Smart Start SBI12 User Manual

CABLE SIZING
Model
Wire
Length
Start Feature with
Pushbutton Override
No Override
Main Stud
Torque
Circuit
Breaker / Fuse
Wire
Circuit
Breaker / Fuse
Wire
SBI12 /
SBI24
Up to 3 m 100 A 19 mm² (4 B&S) 60 A 8 mm² (8B&S) 5 – 6.2 Nm
3 m to 6 m 100 A 32 mm² (2 B&S) 60 A 13 mm² (6B&S) 5 – 6.2 Nm
SBI212 /
SBI224
Up to 3 m 200 A 32 mm² (2 B&S) 120 A 19 mm² (4B&S) 6.5 Nm max.
3 m to 6 m 200 A 40 mm² (1 B&S) 120 A 25 mm² (3B&S) 6.5 Nm max.
MOUNTING
 Mount the SmartStart
®
SBI securely in a convenient
location near the start battery bank.
 Do not mount in direct engine heat.
RECOMMENDED FUSES
REDARC Fuse Kits are recommended as they contain high
quality, reliable fuses and fuse holders.
SBI12 /SBI24:
 FK60
MIDI 60 A Fuse Kit
SBI212 / SBI224:
 FK100
MEGA 100 A Fuse Kit

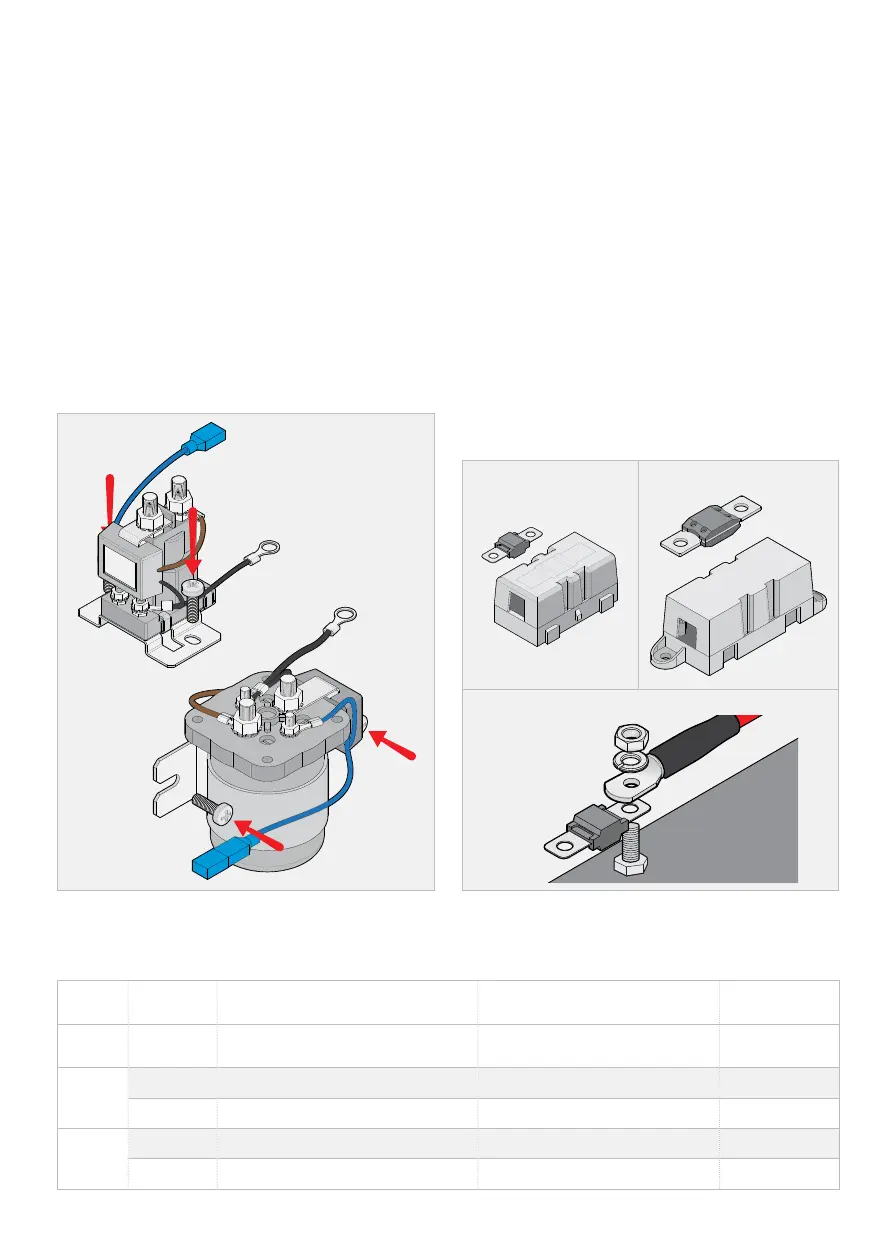

MIDI Fuse with Holder MEGA Fuse with Holder
Fuse Assembly
PRODUCT FUNCTION
The SmartStart
®
SBI is a microprocessor controlled Smart Battery Isolator and is designed specifically for use
in multi battery applications as a solenoid priority system. It protects the start battery from being excessively
discharged by auxiliary loads, whilst still allowing the auxiliary battery to supply non essential loads.
Put simply, once the start battery has had some charge from the alternator, the SmartStart
®
SBI will connect
an auxiliary battery to the charge circuit. Similarly, if the start battery voltage drops too low, the SmartStart
®
SBI
will disconnect any auxiliary batteries or loads from the start battery to conserve charge.

Redarc Smart Start SBI12 Specifications

General

Type	Battery Isolator
Voltage	12V
Continuous Current Rating	100A
Standby Current Draw	<5mA
Protection Features	Over-voltage protection, surge protection
