Controls and Functions
1. CH1 MIC/LINE input (XLR/TRS combo socket, (BAL/UNBAL)
2. CLIP LED / GAIN knob
3. PAD -20dB switch
4. PHANTOM POWER switch +48V d.c. LED
5. LOW/MID/HIGH EQ (3-band for CH1)
6. CH1 MIC/LINE fader
7. EFFECT processor (DELAY & LEVEL knob/ MUTE switch)
8. CH2 INST (Guitar – ¼” INPUT) jack (BAL/UNBAL)
9. INPUT - INST / LINE (LINE / INST-HI-Z) Impedance switch
10. CH3-CH4 input line jacks (6.35mm or 1⁄4”, BAL/UNBAL)

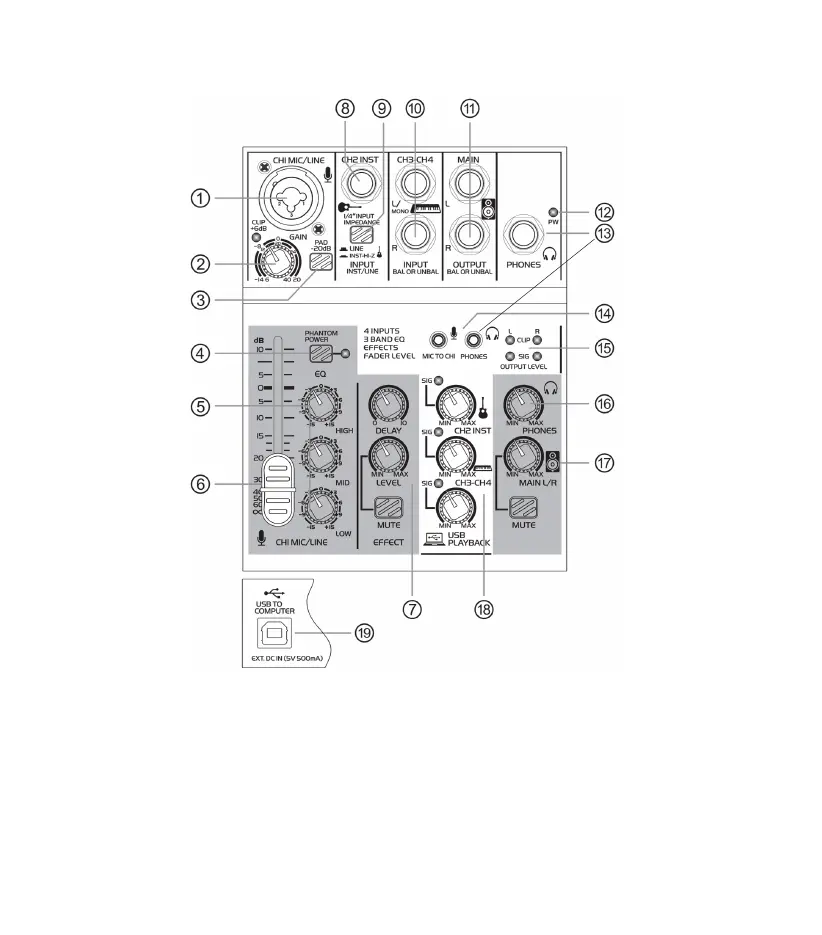

Figure 1
11. MAIN OUTPUT (Monitor) jacks (BAL/UNBAL)
12. PW power on LED
13. PHONES output jacks (6.35mm & 3.5mm)
14. MIC TO CH1 input jack (3.5mm)
15. OUTPUT LEVEL meter (SIG, CLIP)
16. PHONES volume knob
17. MAIN L/R volume knob / MUTE switch
18. INPUTS level knobs
19. USB TO COMPUTER (USB 2.0 Terminal)
