Redback E312D - Exploded View and Parts List

17 / 20

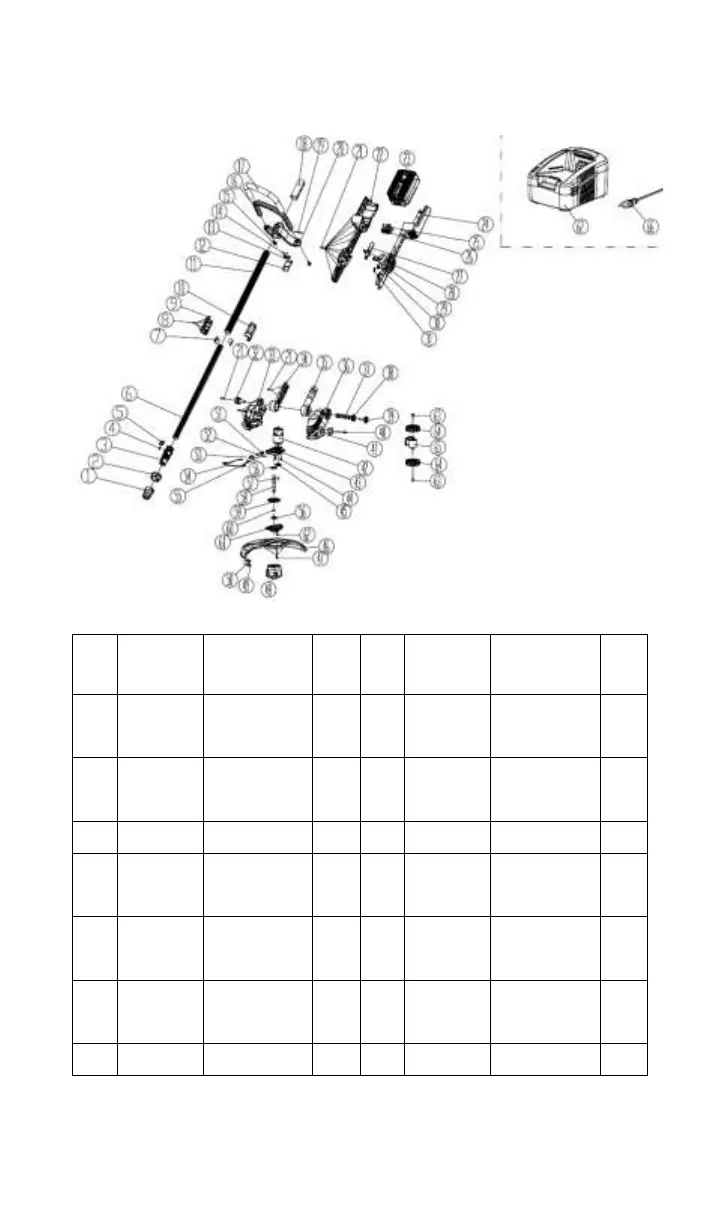

EXPLODED VIEW AND PARTS LIST
No.
Part No.
Description
QTY
No.
Part No.
Description
QTY
1
20910110
Locking block
1
33
20920030
Right
housing
1
2
20910100
Body cover
1
34
20300130
Right
tumbler
1
3
20910090
Pipe sleeve
1
35
20300120
Left tumbler
1
4
60390180
Adjustment
spring
1
36
20920020
Left housing
1
5
20470050
Rotate
switch
1
37
60390190
Adjustment
spring
1
6
71080090
aluminum
pipe
1
38
20430150
Angle adjust
wheel
1
7
20910120
Clip
2
39
20530080
Left switch
1
