Assembly instructions
1. Check that all parts are present before assembly.
2. Place the left and right support frames opposite each other, with the rear connector tube
between them on a at surface (1).
3. Lift the ip clip on both sides of the rear connector tube, lift the left support frame and right
support frame into the rear frame tube. Close the ip clip over the tube and press down until the
ip clip locks in place (2,3).
4. Fit left plastic connector to the left support frame and attach screws. Repeat procedure to t
the right plastic connector and the right support frame (4,5).
5. Fit both ends of the footrest frame together and attach screws (6).
6. Fit both ends of the backrest frame by holding down the spring loaded pin. Push the frames
until the pin locates into the holes (7.).
7. Open the pocket at the rear of the seat cover back. Slide over the seat backrest and stretch
the bottom of the seat cover over the footrest frame (8).

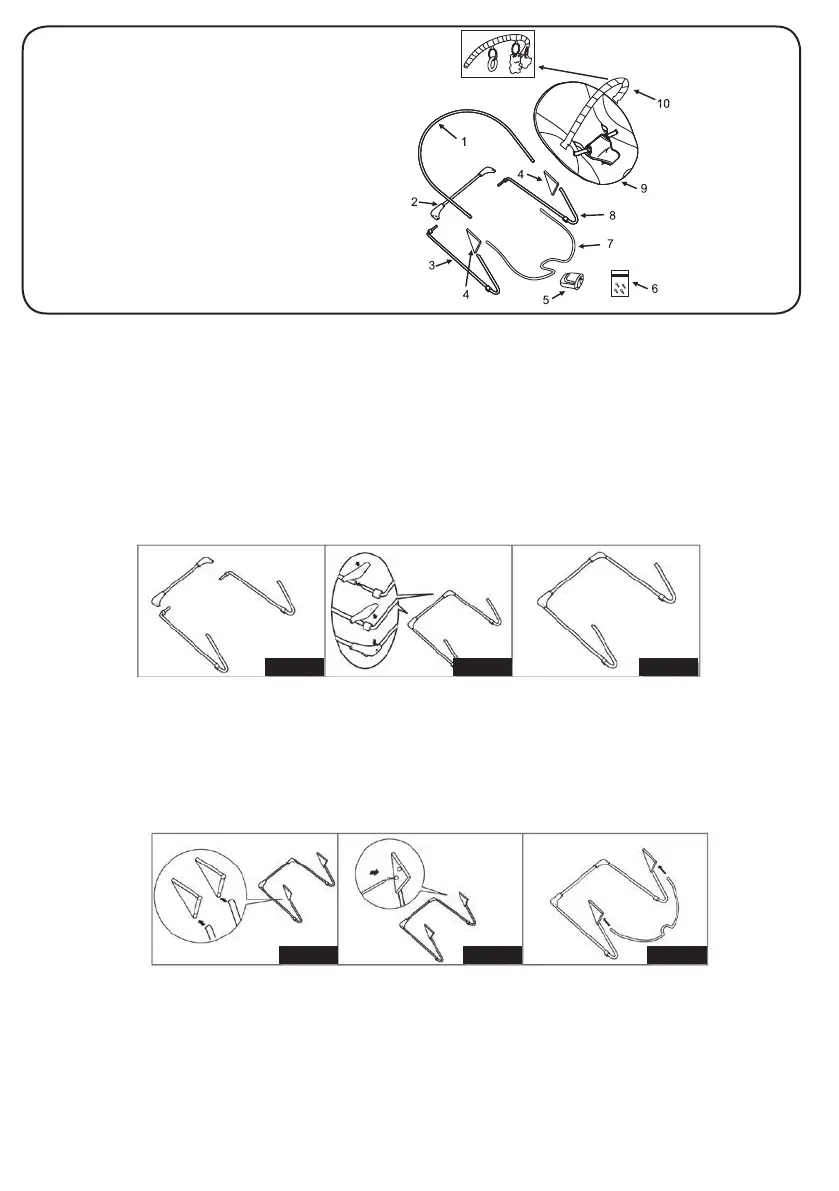

Parts list
1. Backrest frame
2. Rear connector tube
3. Right support frame
4. Left & right plastic connector
5. Music box
6. 13mm screw
7. Footrest frame
8. Left support frame
9. Seat pad
10. Toy bar and toys
Tools required for
assembly:
Cross head
screwdriver (not
supplied).
Fig 1
Fig 4 Fig 5 Fig 6
Fig 2 Fig 3
