Redline Tuning QuickLIFT - Install Gas Springs; Gas Spring Attachment

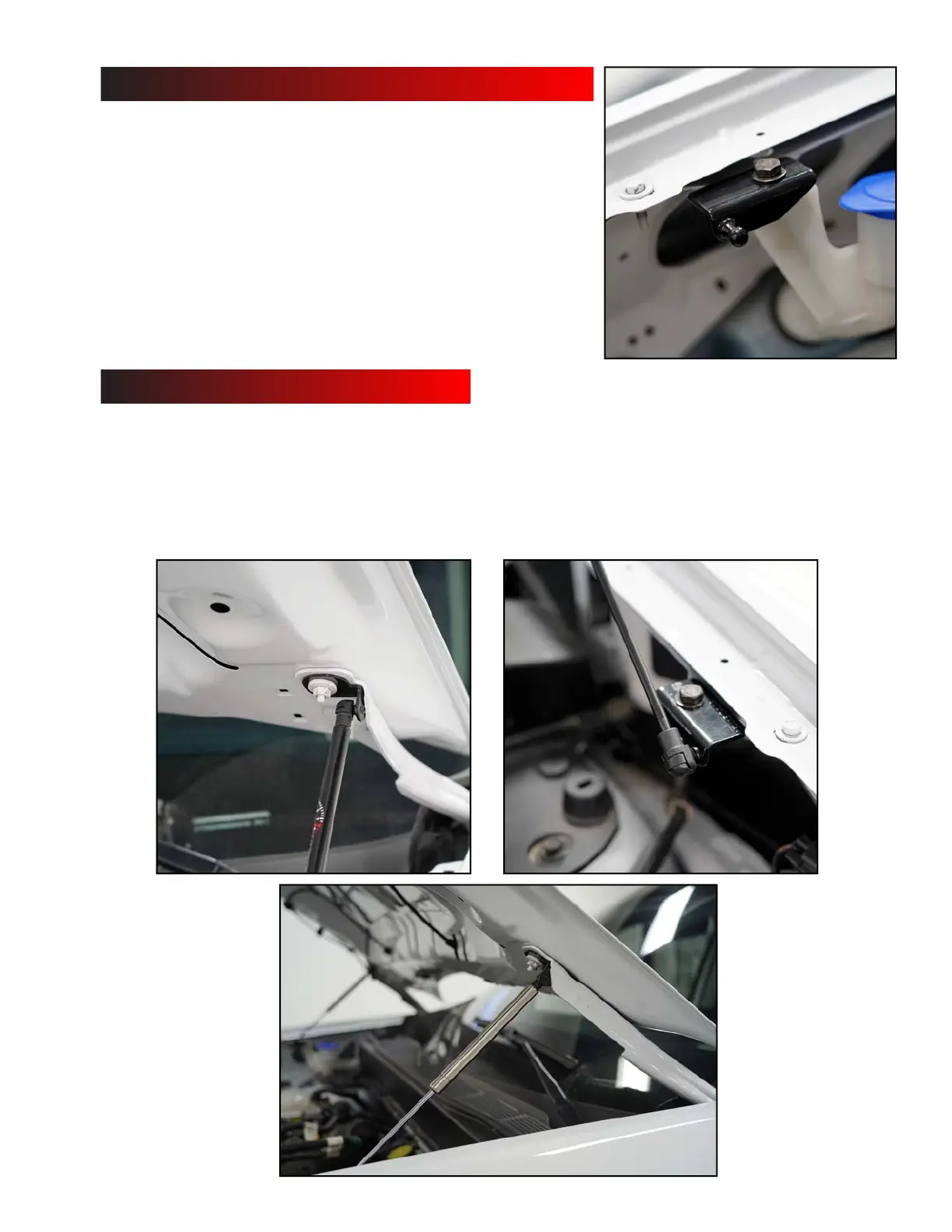

E. Bracket shown in the installed position. Washer bottle is now
retained as it was before with mounting bracket on top.
Step 5 - Continued...
A. The gas springs install with the large housing attached to the TOP or hinge ball-stud. The strut extension
attaches to the fender ball-stud.
NOTE: Carefully rock the gas spring socket over the ball-stud with light pressure from the back side. This allows
the c-clip inside the end-tting to spread and wrap around the ball-stud. If you just force them on, you will bend
the c-clip inward and will need to purchase another end-tting from us (PN: 72-00002).
M
averic
k
Quic
k
LIFT Insta
ll
ation Gui
d
e
Step 6 - Install Gas Springs
