Standard Ethernet cable
* Use appropriate communications cable. See Ordering
Information for descriptions of the available cables.
WARNING: Do NOT use a standard DH-485
cable to connect this port to Allen Bradley
equipment.

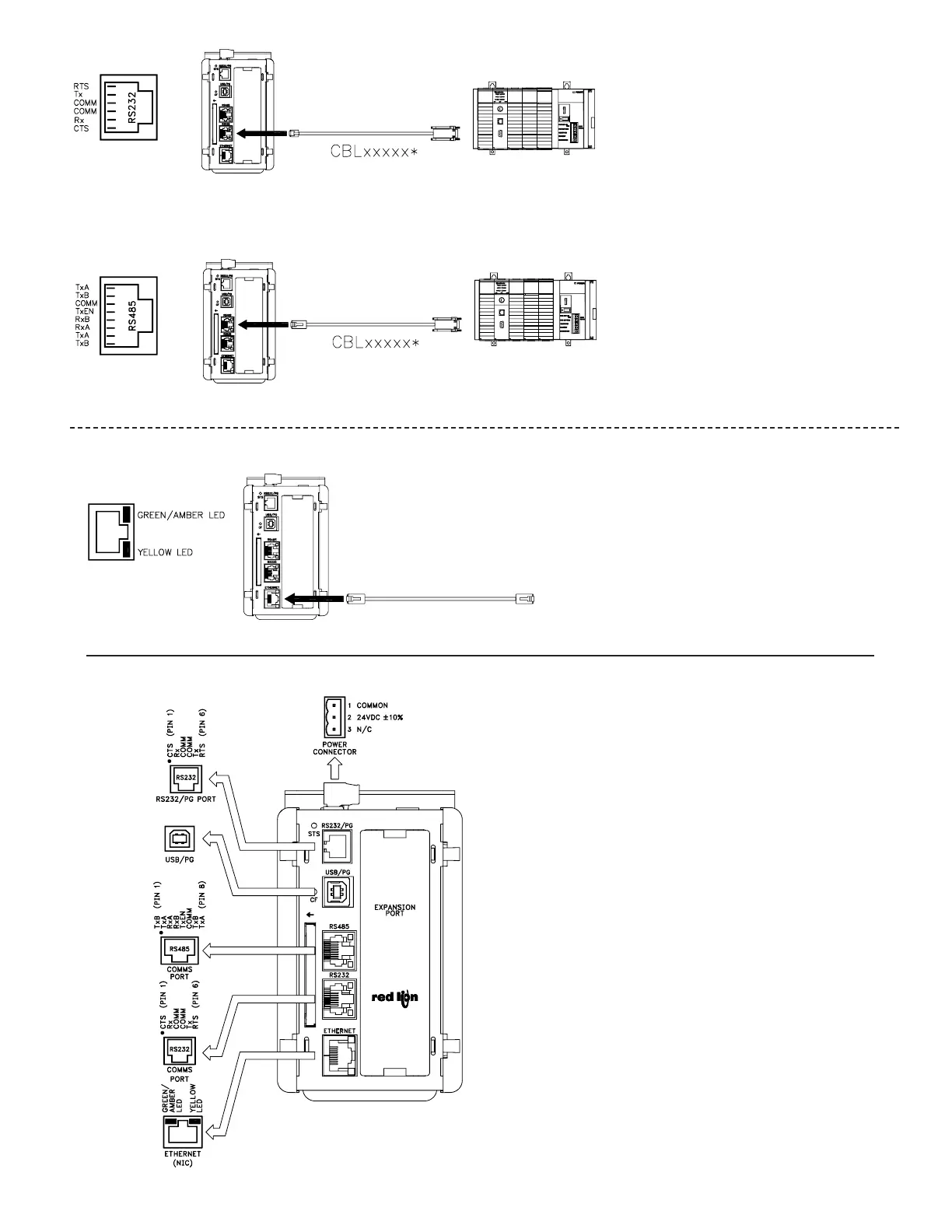

PORT 3 - ETHERNET CONNECTION
RS232
RS485
5
MASTER PORT PIN OUTS
TROUBLESHOOTING
If for any reason you have trouble operating,
connecting, or simply have questions concerning your
new Master, contact Red Lion’s technical support. For
contact information, refer to the back page of this bulletin
for phone and fax numbers.
EMAIL: techsupport@redlion.net
Web Site: http://www.redlion.net
