RedMax BCZ2401S - PARTS AND SPECIFICATIONS; Parts Location; Technical Specifications

4

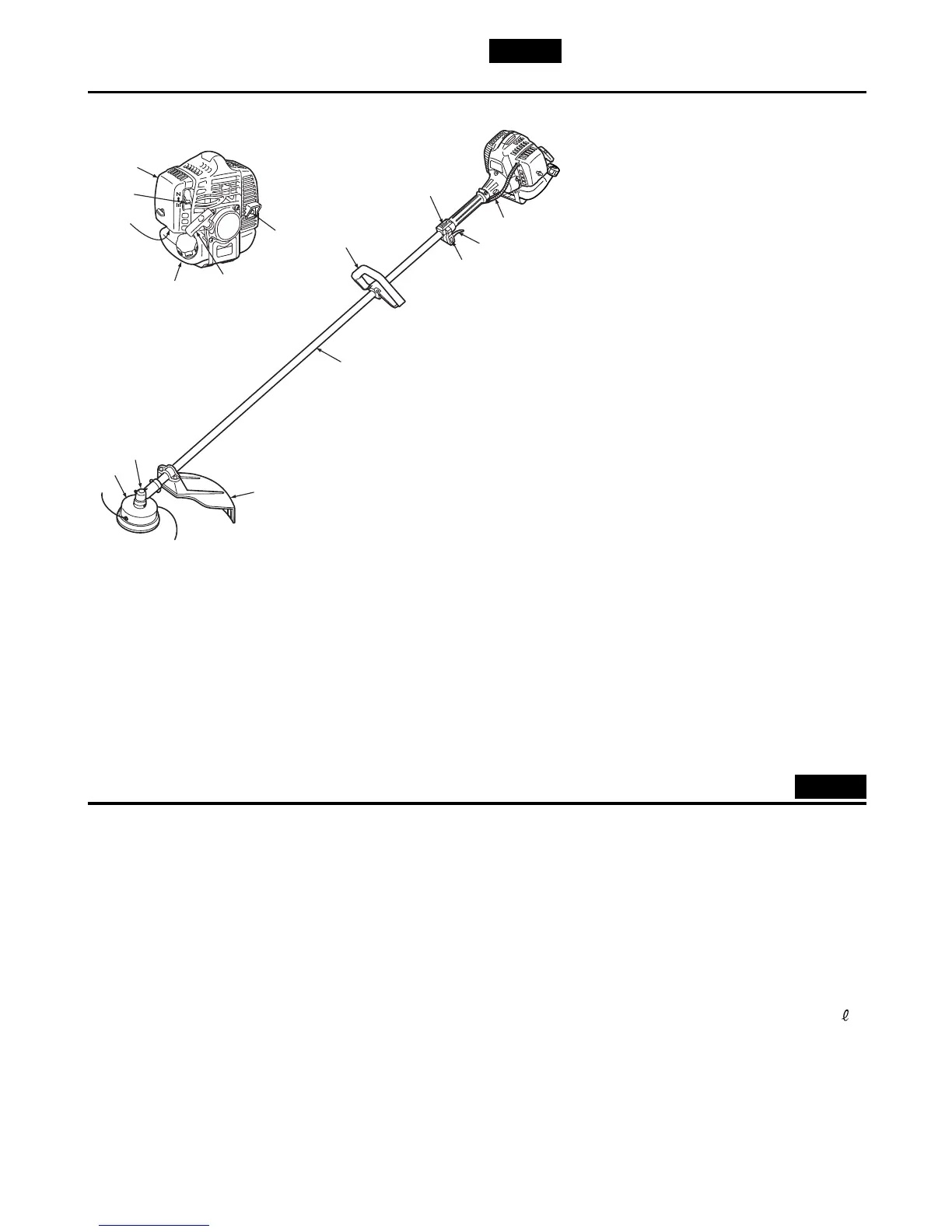

1. Parts location
English
English
■ BCZ2401S/BCZ2401S-CA
Overall size(LxWxH) ····················································································· 71.3(1810)x9.0(228)x11.5(292) in(mm)
Dry weight ··········································································· 11.1 lbs (5.02kg) (11.9 lbs (5.40kg) Including tap head)
Engine Type·················································································································· Air-cooled 2-stroke gasoline
Model················································································································································· GZ23N
Displacement ··················································································································· 1.5cu-in (23.6cm
3
)
Max. output ························································································· 1.15Hp (0.858kW)at 8000/min
-1
(rpm)
Idle speed······················································································································3000±200/min
-1
(rpm)
Fuel ··················································································································· Mixture(Gasoline 50 : Oil 1)
(when using RedMax/ZENOAH genuine oil)
Carburetor ··············································································································· Walbro Diaphragm type
Spark plug ························································································································CHAMPION RZ7C
Fuel tank capacity····························································································································21.3 fl.oz (0.63 )
Transmission········································································································ Centrifugal clutch, Rigid driveshaft
Reduction ratio··················································································································································· 1.462
Cutting head rotating direction·············································································· Counter-clockwise(Operator view)
Durability period···············································································································································300hrs.
Standard Accessories
4 in. 2-line Head ···································································································································· 1 pc.
Goggle··················································································································································· 1 pc.
Tool Kit ·················································································································································· 1 pc.
Specifications are subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1. Loop handle
2. Ignition switch
3. Throttle cable
4. Throttle lever
5. Throttle set button
6. Drive shaft housing
7. Debris guard
8. Cutting line head
9. Gear case
10. Spark arrester
11. Starter knob
12. Fuel tank
13. Primer pump
14. Choke lever
15. Air cleaner cover
2. Specifications
