6. Set up
Tighten the screws gradually by turns.

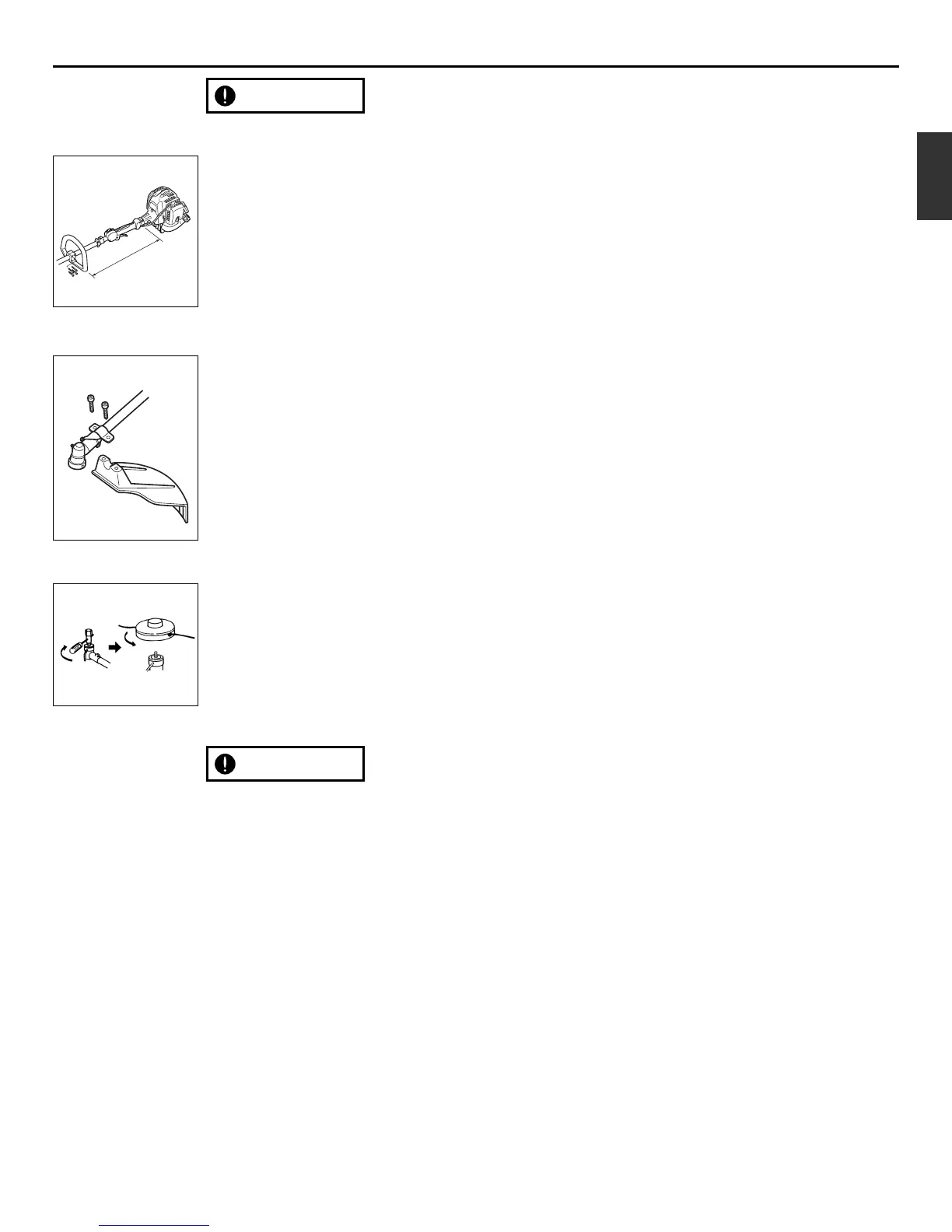

■ INSTALLING HANDLE
• Mount the handle to the shaft tube and
clamp it at a location that is comfortable
to you. (SE1)
(1) About 19 inches (48cm)
■ INSTALLING DEBRIS GUARD
• Put the debris guard on the gear box,
attach it with the screws and hardware
provided. (SE2)
■ INSTALLING LINE HEAD (SE3)
1. While locking the gear shaft, by
inserting the supplied tool into the
upper holder on the gear box, loosen
and remove the hexagon nut(left-
handed)
2. Fit the line head assembly to the gear
shaft over the holders. Hand-tighten it
securely.
• You need not holder (B) and nut when
installing the line head.
• Do not attach any metal blade to
BCZ2650T/BCZ2650SS.
