Parts List : EB7001/EB7001RH

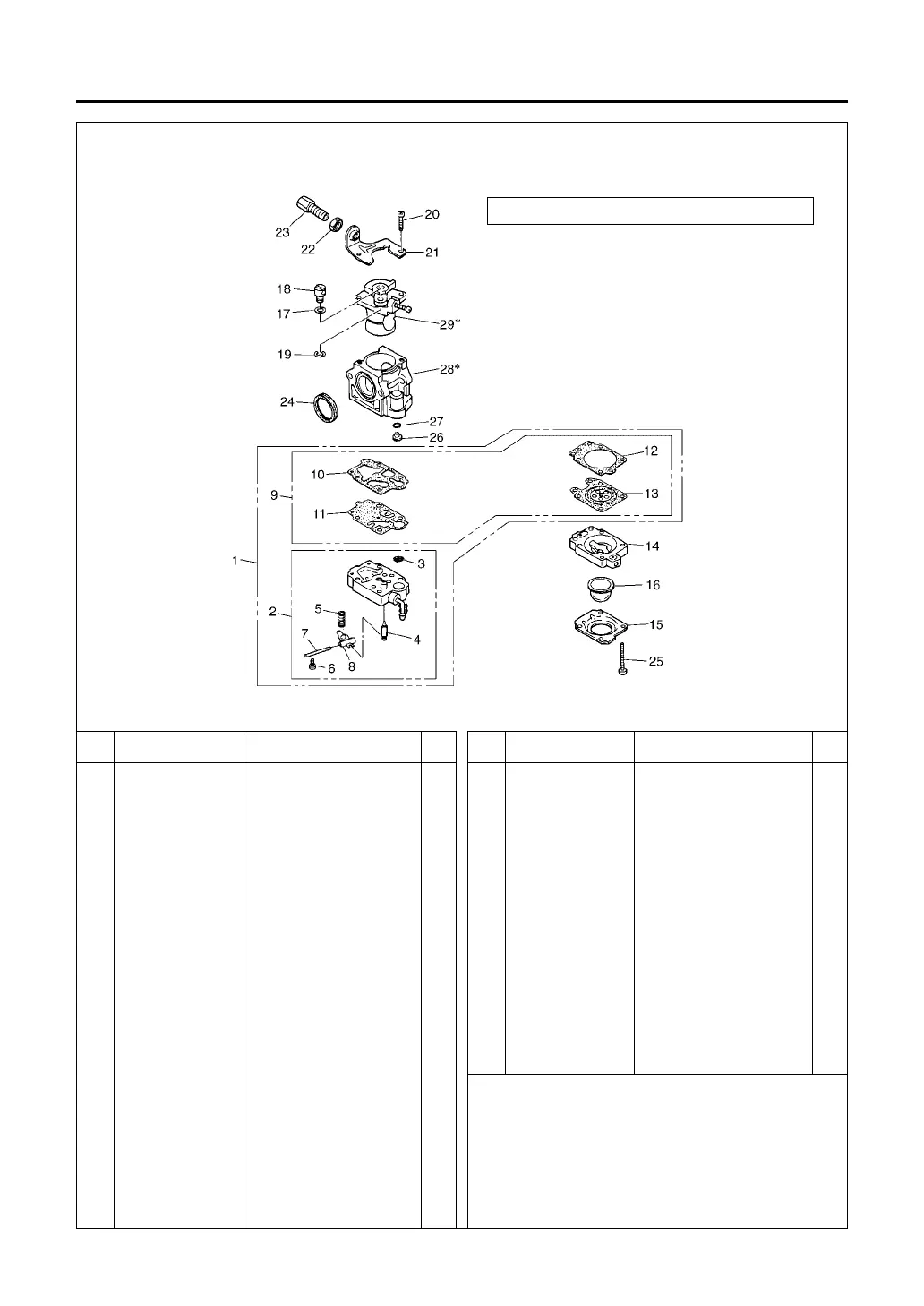

Fig.3 CARBURETOR COMPONENTS (S/N 200101 and up)
Key# Part Number Description Q'ty
1 5602-06030 REBAILT KIT 1
2 1850-81450 • BODY ASS’Y 1
3 ————— • • SCREEN 1
4 ————— • • VALVE 1
5 ————— • • SPRING 1
6 ————— • • SCREW 1
7 ————— • • PIN 1
8 ————— • • LEVER 1
9 5602-06020 • GASKET KIT
10 ————— • • GASKET 1
11 ————— • • DIAPHRAGM 1
12 ————— • • GASKET 1
13 ————— • • DIAPHRAGM 1
14 1850-81490 BODY 1
15 1850-81520 COVER 1
16 1751-81510 PUMP 1
17 5500-81160 WASHER 1
18 1881-81140 SWIVEL 1
19 1751-81130 RING 1
20 1752-81110 SCREW 2
Key# Part Number Description Q'ty
21 5500-81120 BRACKET 1
22 1751-81180 NUT 1
23 1918-81170 SCREW 1
24 1881-81130 RING 1
25 1850-81530 SCREW 4
26 T4012-81250 JET 1
27 1751-81240 O-RING 1
28* ————— BODY 1
29* ————— VALVE ASS’Y 1
[NOTE]
• 28*-Body and 29*-Valve ass’y are not supplied
as an individual part respectively, but supplied
as a carburetor ass’y (P/NO. T4012-81000).
Carburetor Ass’y P/NO. T4012-81000
