RedMax EBZ4800 - Carburetor Components; Carburetor Part Breakdown

Key# Part Number Description Q'ty
1 T1108-81450 Body ass’y 1
2 ————— Screen 1
3 ————— Valve 1
4 ————— Spring 1
5 ————— Screw 1
6 ————— Pin 1
7 ————— Lever 1
8 1850-81490 Body 1
9 1850-81520 Cover 1
10 1751-81510 Pump 1
11 5500-81160 Washer 1
12 1881-81140 Swivel 1
13 1751-81130 Ring 1
14 ————— Gasket 1
15 ————— Diaphragm 1
16 ————— Gasket 1
17 ————— Diaphragm 1
18 1752-81110 Screw 2
Key# Part Number Description Q'ty
19 5500-81120 Bracket 1
20 1751-81180 Nut 1
21 1918-81170 Screw 1
23 1850-81530 Screw 4
24 T1108-81910 Jet #43.5 1
25 1751-81240 O-Ring 1
26
* ————— Body 1
27* ————— Valve ass’y 1
28 4810-06020 Gasket Kit
*Acc
(Key# 14,15,16,17)
[NOTE]
• 26*-Body and 27*-Valve ass’y are not supplied
as an individual part respectively, but supplied
as a carburetor ass’y (P/NO. T1108-81000).
26
Parts List : EBZ4800/EBZ4800RH

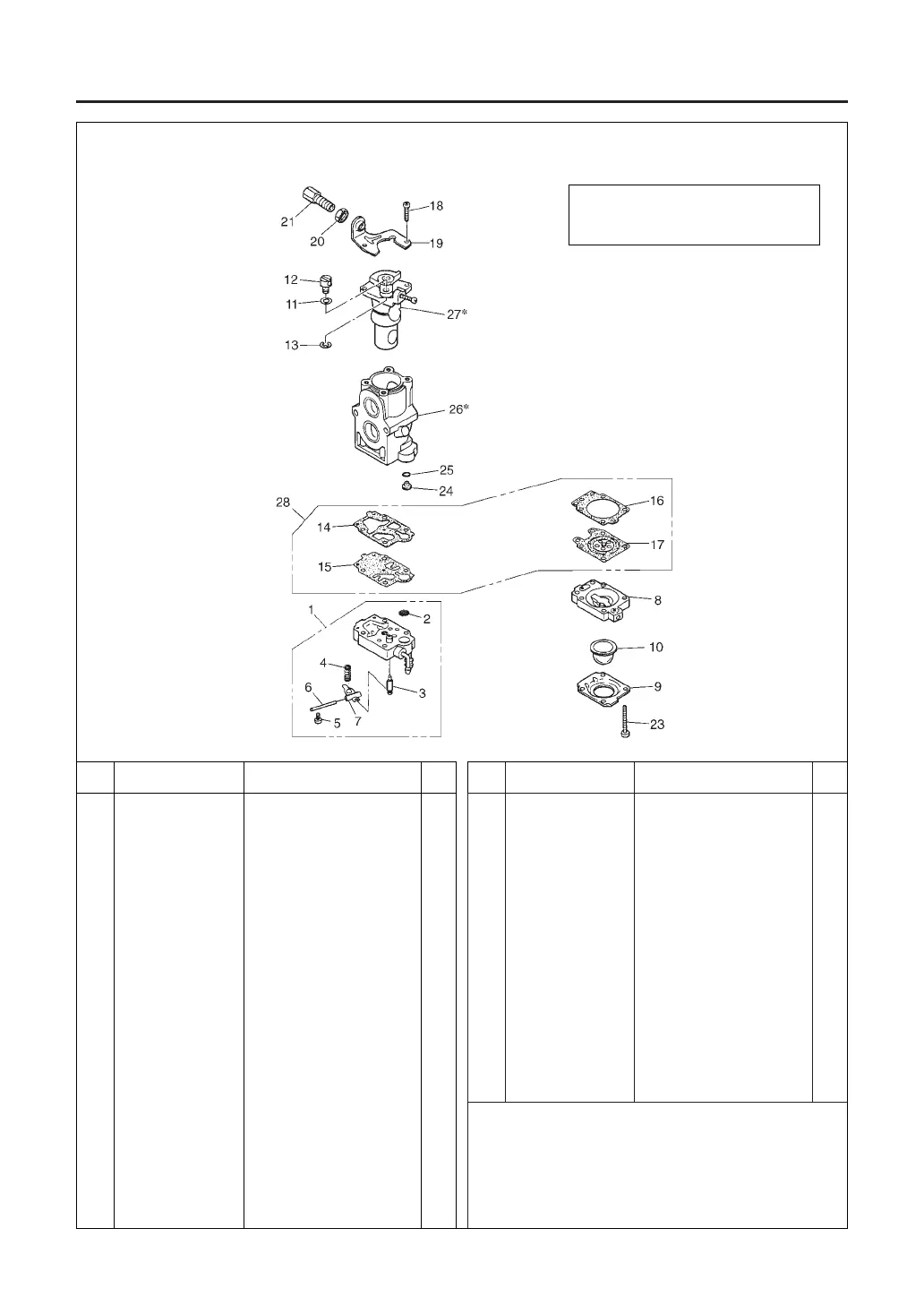

Fig.3 CARBURETOR COMPONENTS (S/N 100101 and up)
Carburetor Ass’y (WYA-24)
P/NO. T1108-81000
*Acc: Accessory, which is not included in standard package.
