Parts List : EBZ5000/EBZ5000RH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
22

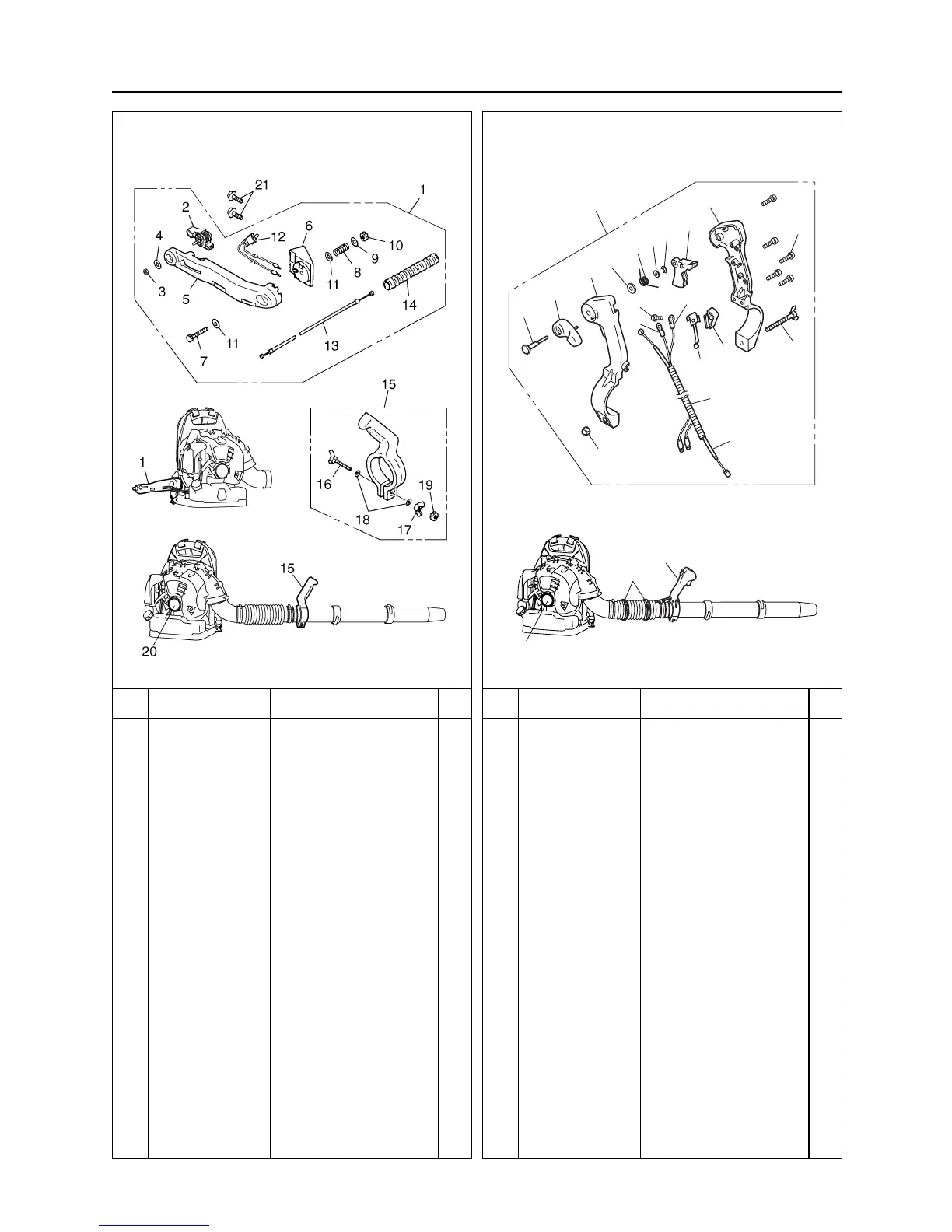

Fig.4 LEVER SET [EBZ5000]
(S/N 300001 and up)
Fig.5 LEVER (R) SET [EBZ5000RH]
(S/N 300001 and up)
Key# Part Number Description Q'ty
1 T4017-25000 LEVER SET 1
2 T4012-25100 • LEVER 1
3 3310-53331 • NUT 1
4 01642-20508 • WASHER 1
5 T4012-25211 • ARM 1
6 T4012-25311 • BRACKET 1
7 3495-25410 • BOLT 1
8 3495-25420 • SPRING 1
9 3495-25440 • WASHER 1
10 01584-00605 • NUT 1
11 3495-25450 • WASHER 2
12 T4017-25510 • SWITCH 1
13 T4012-83110 • CABLE COMP. 1
14 T3002-12240 • TUBE 1
15 2750-51501 GRIP ASSY 1
16 2750-51520 • WING BOLT 1
17 3495-51430 • WING NUT 1
18 3238-15230 • WASHER 2
19 2750-51540 • NUT 1
20 848-L3B-90C0 LABEL 1
21 T4960-51631 SCREW 2
Key# Part Number Description Q'ty
1 848-L54-3411 LEVER (R) SET 1
2 T4023-25210 • COVER 1
3 848-L54-34A1 • CASE 1
4 T4023-25310 • SCREW 4x14 5
5 T4023-25410 • LEVER, throttle 1
6 848-L54-34D1 • LEVER 1
7 T4023-25440 • SHAFT 1
8 T4023-25450 • WASHER 1
9 T4023-25460 • SPRING 1
10 3238-15230 • WASHER 1
11 T4023-25480 • CLIP 1
12 T4023-25710 • SWITCH 1
13 T4023-25721 • SPRING 1
14 T4023-25730 • SCREW 4x10 1
15 T4023-25740 • CORD 1
16 T4023-25750 • CORD 1
17 T4023-83100 • CABLE 1
18 848-8H1-9402 • TUBE 1
19 3495-51420 • WING BOLT 1
20 2750-51540 • NUT 1
21 3486-84110 BAND 2
22 848-L3B-90C0 LABEL 1
