RedMax EBZ5100 - Lever Set Components

51
13. Parts List : EBZ5100/EBZ5100RH/BZ5100-CA/EBZ5100RH-CA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
22a
22b

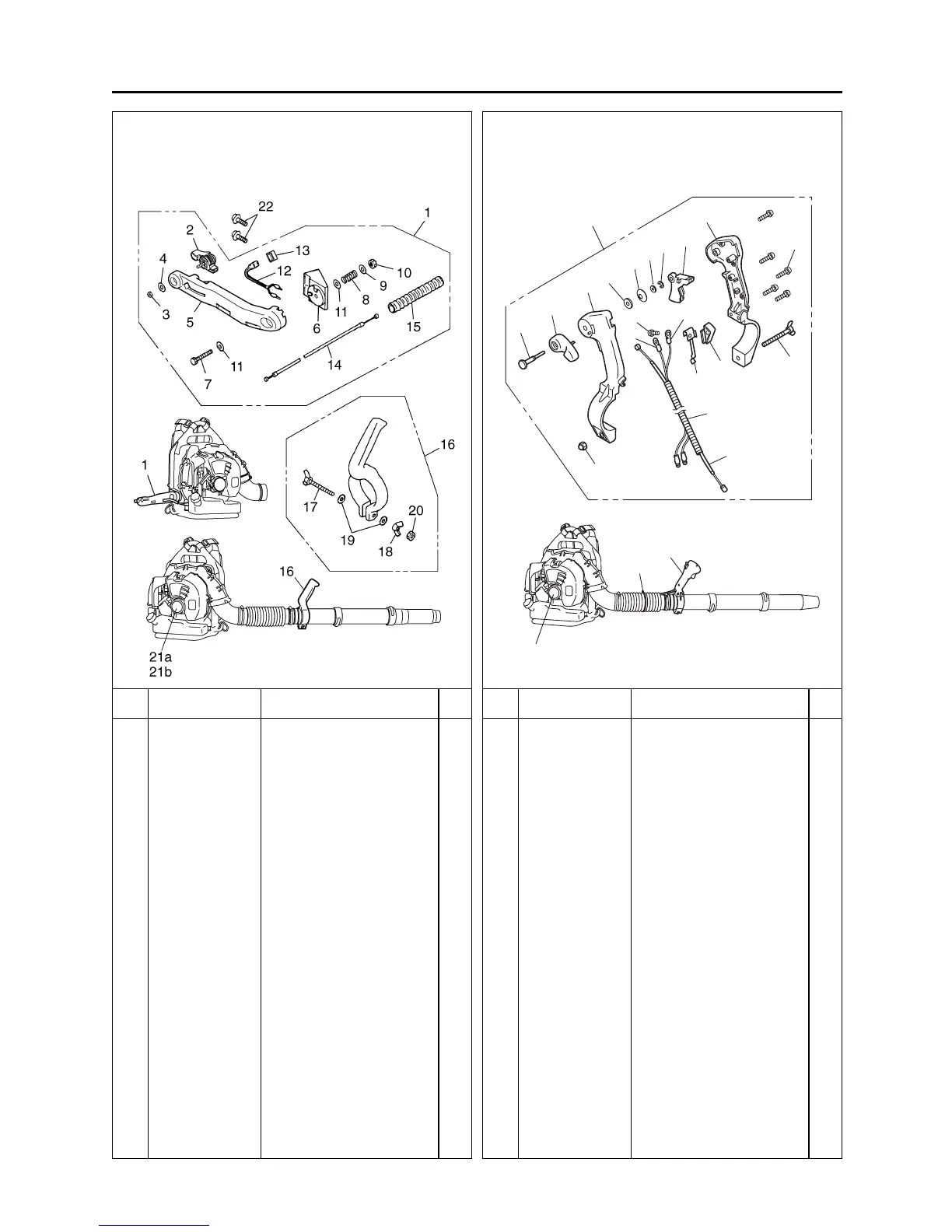

Fig.4 LEVER SET
[EBZ5100] [EBZ5100-CA]
(S/N 70100001 and up)
Fig.5 LEVER (R) SET
[EBZ5100RH] [EBZ5100RH-CA]
(S/N 70100001 and up)
Key# Part Number Description Q'ty
1 848-L58-3300 LEVER SET 1
2 T4012-25100 • LEVER 1
3 3310-53331 • NUT 1
4 01642-20508 • WASHER 1
5 T4012-25211 • ARM 1
6 T4012-25311 • BRACKET 1
7 3495-25410 • BOLT 1
8 3495-25420 • SPRING 1
9 3495-25440 • WASHER 1
10 01584-00605 • NUT 1
11 3495-25450 • WASHER 2
12 T4012-25511 • SWITCH 1
13 1601-72411 • CAP 1
14 T4012-83110 • CABLE COMP. 1
15 848-8H1-3052 • TUBE 1
16 848-L58-6521 GRIP ASSY 1
17 2750-51520 • WING BOLT 1
18 3495-51430 • WING NUT 1
19 3238-15230 • WASHER 2
20 2750-51540 • NUT 1
21a 848-L3H-90C0 LABEL, RECOIL 1
21b 848-L3L-90C0
LABEL, RECOIL (CA only) 1
22 T4960-51631 SCREW TORX 2
Key# Part Number Description Q'ty
1 848-L3J-3410 LEVER (R) SET 1
2 T4023-25210 • COVER 1
3 848-L54-34A1 • CASE 1
4 T4023-25310 • SCREW 4x14 5
5 T4023-25410 • LEVER, throttle 1
6 848-L54-34D1 • LEVER 1
7 T4023-25440 • SHAFT 1
8 T4023-25450 • WASHER 1
9 T4023-25460 • SPRING WASHER 1
10 3238-15230 • WASHER 1
11 T4023-25480 • CLIP 1
12 T4023-25710 • SWITCH 1
13 T4023-25721 • SPRING 1
14 T4023-25730 • SCREW 4x10 1
15 848-8M1-0690 • CORD 1
16 848-8M1-0700 • CORD 1
17 T4023-83100 • CABLE 1
18 848-8H1-6802 • TUBE 1
19 3495-51420 • WING BOLT 1
20 2750-51540 • NUT 1
21 848-L3E-65G0 CLAMP 1
22a 848-L3H-90C0 LABEL, RECOIL 1
22b 848-L3L-90C0
LABEL, RECOIL (CA only) 1
