RedMax EBZ5100 - Carburetor Components

50
13. Parts List : EBZ5100/EBZ5100RH/BZ5100-CA/EBZ5100RH-CA
Key# Part Number Description Q'ty
1 T1108-81450 BODY ASSY 1
2–SCREEN 1
3–VALVE 1
4–SPRING 1
5–SCREW 1
6–PIN 1
7–LEVER 1
8 1850-81490 BODY 1
9 1850-81520 COVER 1
10 1751-81510 PUMP 1
11 5500-81160 WASHER 1
12 1881-81140 SWIVEL 1
13 1751-81130 RING 1
14 4810-81410 GASKET 1
15 1065-81420 DIAPHRAGM 1
16 1850-81470 GASKET 1
17 848-HE0-81K0 DIAPHRAGM 1
18 1752-81110 SCREW 2
Key# Part Number Description Q'ty
19 5500-81120 BRACKET 1
20 1751-81180 NUT 1
21 1918-81170 SCREW 1
23 1850-81530 SCREW 4
24 T1048-81250 JET #43 1
25 1751-81240 O-RING 1
26* – BODY 1
27* – VALVE ASSY 1
[NOTE]
26*-BODY and 27*-VALVE ASSY are not supplied
as an individual part respectively, but supplied as a
CARBURETOR ASSY (P/NO. 848-HE0-8100).

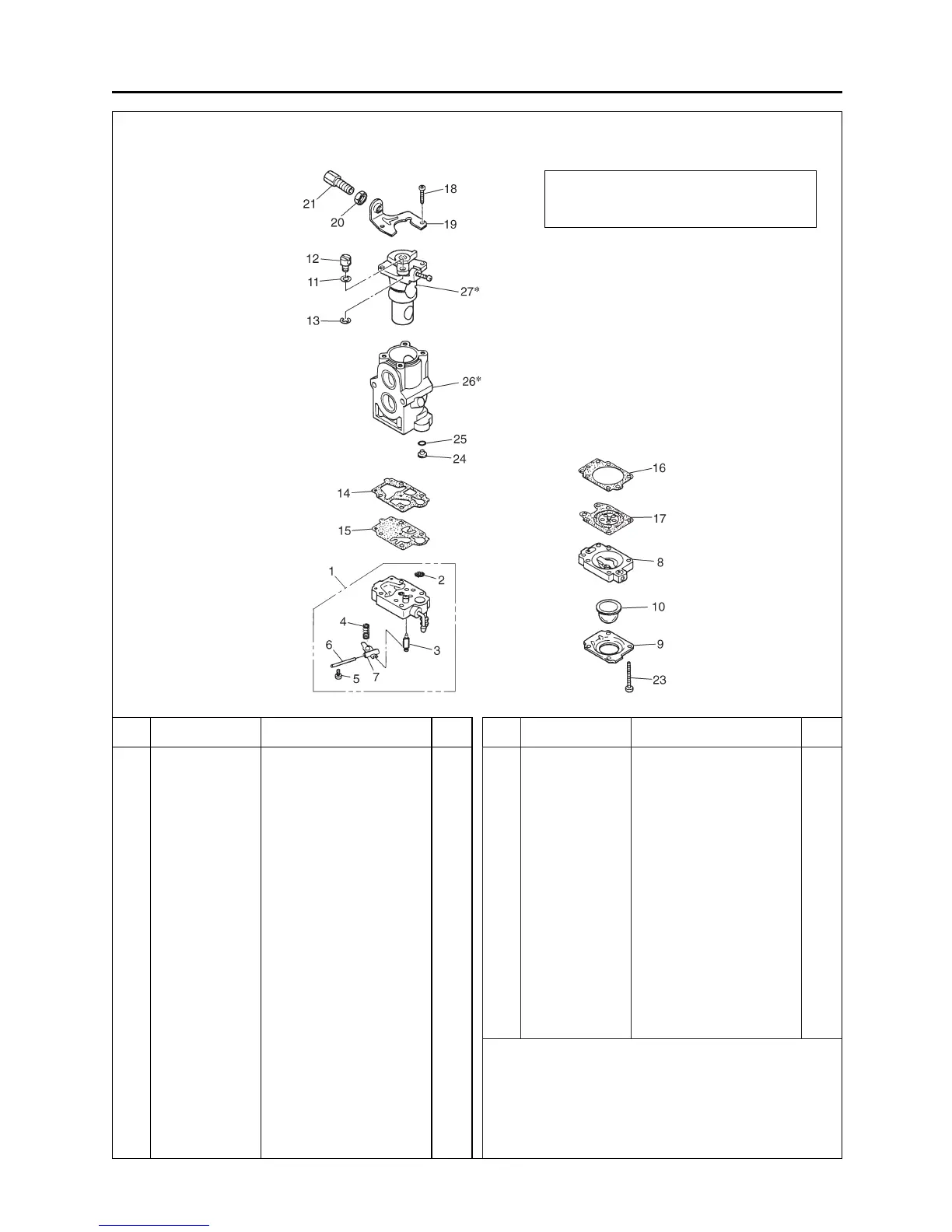

Fig.3 CARBURETOR COMPONENTS (S/N 70100001 and up)
CARBURETOR ASSY (WYA-74)
P/NO. 848-HE0-8100
