RedMax EBZ7150 - 6. Set up; BLOWER TUBES; THROTTLE LEVER; THROTTLE CABLE

US-8
EBZ7150/RH

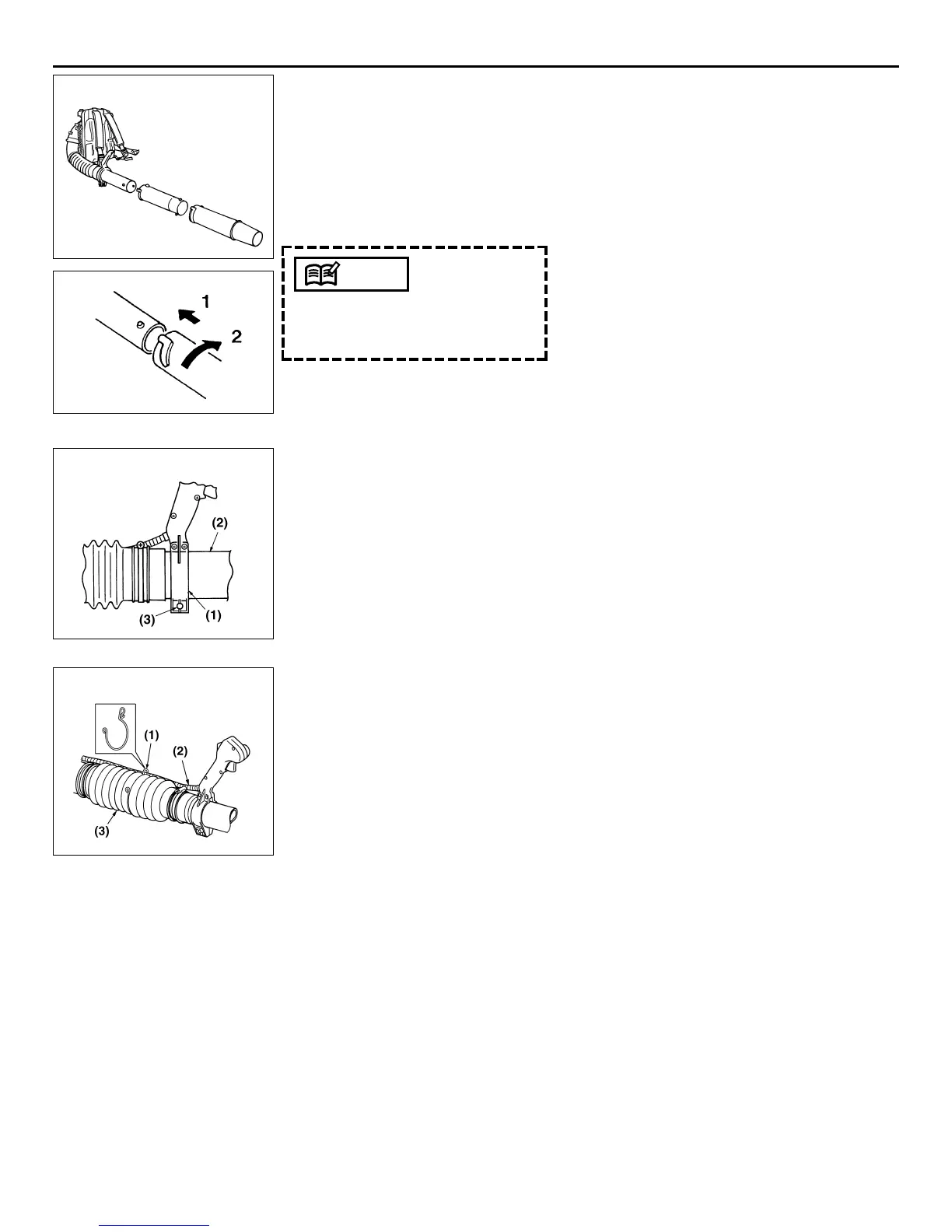

6. Set up
■ BLOWER TUBES
1. Connect the blower and swivel joint
with flexible hose. Clamp both ends of
the flexible hose securely with the
hardware supplied with the unit.
2. Align the protrusion and the groove
provided on the tube ends and twist the
tube until connection is locked up.
A light lubricant may be used to ease
assembly of flexible pipe to blower
elbow.
■ THROTTLE LEVER
[EBZ7150RH]
• Set up the clamp to the swivel and
tighten the screw on the clamp.
(1) Clamp
(2) Swivel
(3) Screw
■ THROTTLE CABLE
[EBZ7150RH]
• Use the clamp to fasten the colgate
tube containing the throttle cable and
the power cable to the hose.
(1) Clamp
(2) Cable
(3) Hose
NOTE
F1
F2
F3 [EBZ7150RH]
F4 [EBZ7150RH]
