RedMax EBZ8001RH - Page 48

Key# Part Number Description Q'ty
1 T1108-81450 BODY ASSY 1
2–SCREEN 1
3–VALVE 1
4–SPRING 1
5–SCREW 1
6–PIN 1
7–LEVER 1
8 1850-81490 BODY 1
9 1850-81520 COVER 1
10 1751-81510 PUMP 1
11 5500-81160 WASHER 1
12 1881-81140 SWIVEL 1
13 1751-81130 RING 1
14 4810-81410 GASKET 1
15 1065-81420 DIAPHRAGM 1
16 1850-81470 GASKET 1
17 4810-81260 DIAPHRAGM 1
18 1752-81110 SCREW 2
Key# Part Number Description Q'ty
19 5500-81120 BRACKET 1
20 1751-81180 NUT 1
21 1918-81170 SCREW 1
22 848-H00-80A0 RING, PACKING 1
23 1850-81530 SCREW 4
24 2750-81250 JET #59.0 1
25 1751-81240 O-RING 1
26* – BODY 1
27* – VALVE ASSY 1
[NOTE]
26*-BODY and 27*-VALVE ASSY are not supplied
as an individual part respectively, but supplied as a
CARBURETOR ASSY (P/NO. 848-H00-8100).

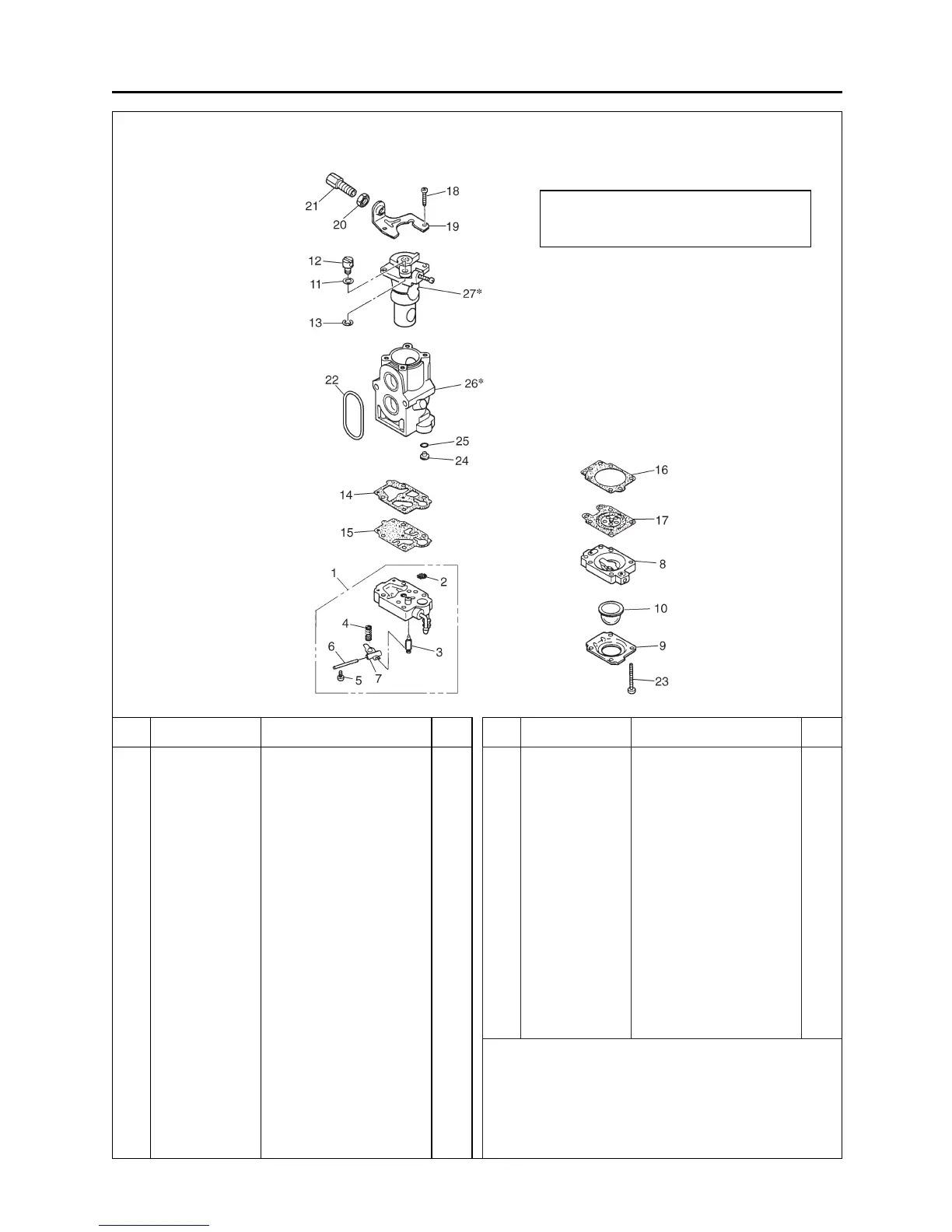

Fig.3 CARBURETOR COMPONENTS
CARBURETOR ASSY (WYA-44)
P/NO. 848-H00-8100
48
12. Parts List : EBZ8001/EBZ8001RH
(EBZ8001 : S/N 61206884 and up)
(EBZ8001RH : S/N 61201408 and up)
