RedMax EBZ8560RH - Assembly: Tube and Handle (EBZ8560); Assemble Tube and Handle (EBZ8560)

4. Attach the cable to the flexible hose with the cable
clamp.
5. Attach the intermediate pipe to the control pipe.
6. Attach the blower nozzle to the intermediate pipe.
To assemble the tube and handle on
the product : EBZ8560

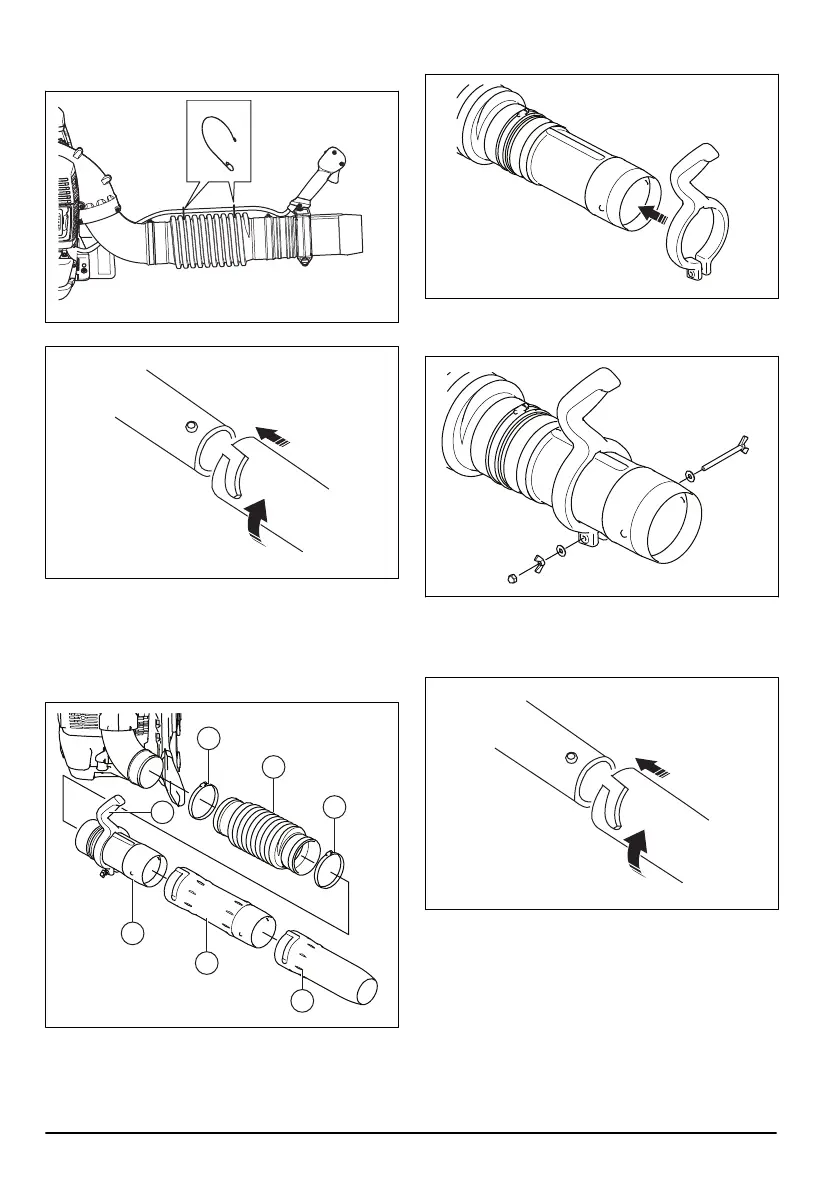

1. Attach the flexible tube (A) to the pipe angle with the
clamp (C).
C
A
D
B
E
F
G
2. Push the handle (E) onto the control pipe (B)
.
3. Attach and tighten the bolt, washer and nuts as
shown in the illustration.
4. Attach the control pipe (B) to the flexible tube (A)
with the clamp (D). Make sure that the mark on the
control pipe is up.
5. Attach the intermediate pipe (F) to the control pipe.
6. Attach the blower nozzle (G) to the intermediate
pipe.
10
1654 - 002 - 19.04.2021
