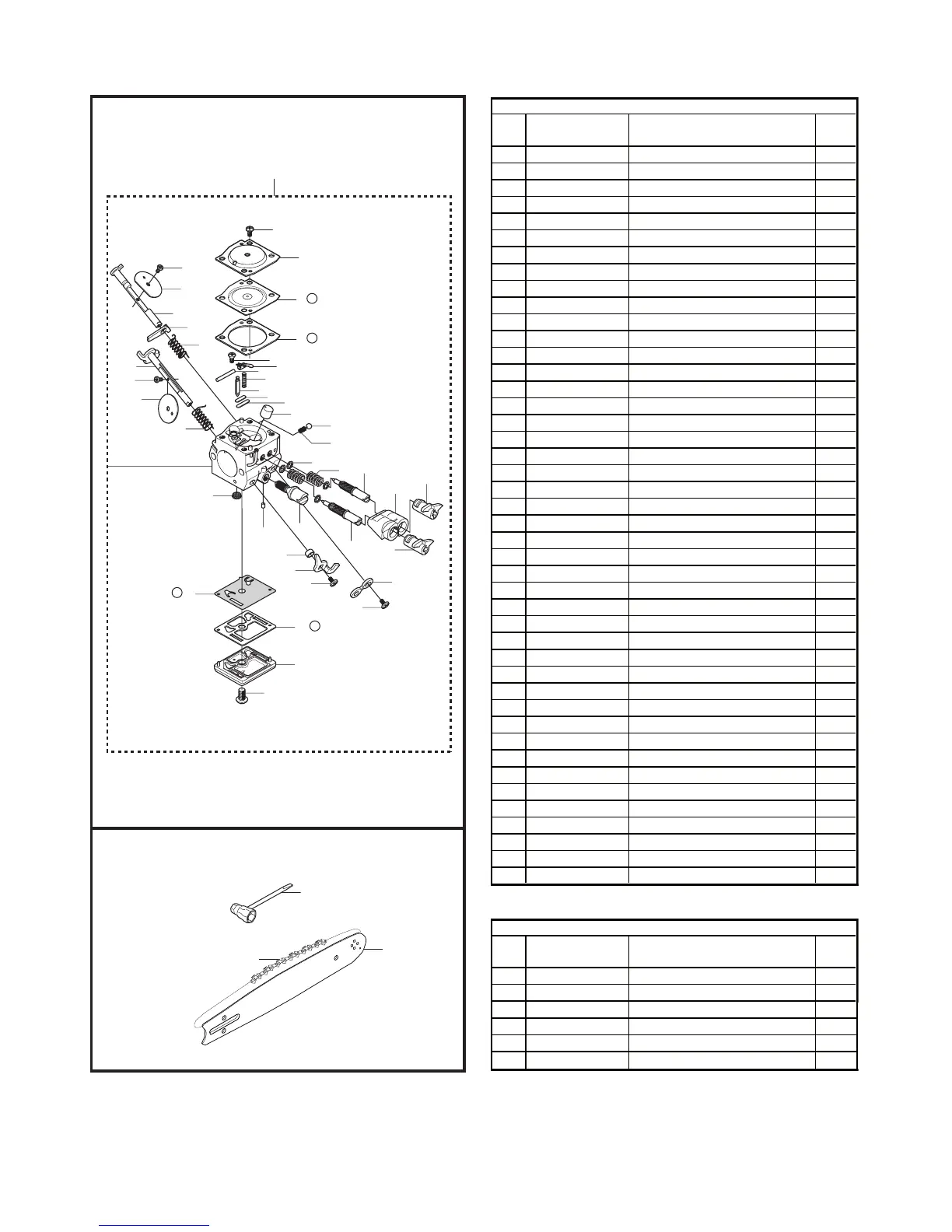

RedMax G5300 - Page 126

126
B
B
B
B
M
N
ZAMA C3-EL32
H
L
C 3
1
3
2
4
5
6
7
8
9
10
11
12
13
23
24
15
14
16
17
18
19
20
21
22
41
40
42
39
37
38
37
36
35
32
33
34
31
29
28
27
25
26
1
30
Tillbehör
Accessories
Zubehöre
Accessoires
Accesorios
1
G5300 (810)
Key# PART NUMBER DESCRIPTION
QTY/
UNIT
1 503 28 32-10 CARBURETTOR 1
2 503 48 05-01 SCREW 4
3 537 17 60-01 COVER 1
4 537 17 59-01 DIAPHRAGM (B) 1
5 503 88 44-01 GASKET (B) 1
6 503 48 01-01 SCREW 1
7 537 17 64-01 LEVER 1
8 503 48 00-01 PIN RETAINING SCREW 1
9 537 17 63-01 SPRING 1
10 537 17 62-01 VALVE 1
11 537 17 78-01 PLUG 1
12 503 53 56-01 PLUG WELCH 1
13 537 41 61-01 NOZZLE ASSY 1
14 503 52 36-01 SCREW 1
15 544 05 66-01 CHOKE VALVE 1
16 537 26 67-01 SHAFT ASSY 1
17 544 05 67-01 LEVER 1
18 537 17 66-01 SPRING 1
19 537 26 63-01 SHAFT ASSY 1
20 503 48 18-01 SCREW 1
21 537 26 66-01 VALVE 1
22 537 17 61-01 SPRING 1
23 537 01 25-01 BALL 1
24 537 01 26-01 SPRING 2
25 503 90 31-01 WASHER 4
26 503 48 08-01 SPRING 2
27 537 17 85-01 SCREW 1
28 503 90 34-01 RETAINER 1
29 503 90 33-01 LIMITER CAP 1
30 537 26 70-01 SCREW 1
31 503 90 32-01 LIMITER CAP 1
32 503 53 57-01 STRAINER 1
33 503 48 11-01 PIECE 1
34 537 17 76-01 SCREW 1
35 503 48 19-01 COLLAR 1
36 537 17 69-01 LEVER 1
37 503 47 90-01 SCREW 2
38 537 17 75-01 LEVER 1
39 537 38 02-01 DIAPHRAGM (B) 1
40 503 61 66-01 GASKET PUMP (B) 1
41 537 17 68-01 COVER 1
42 503 47 96-01 SCREW 1
B 537 38 03-01 GASKET KIT 1
Key# PART NUMBER DESCRIPTION
QTY/
UNIT
1 501 69 17-01 COMBINATION WRENCH 1
2 G5018 GUIDE BAR 18”, 0.325” 1
2 G5020 GUIDE BAR 20”, 0.325” 1
3 33SL72X CHAIN 1
3 33SL78X CHAIN 1
M
N
2
3
