48

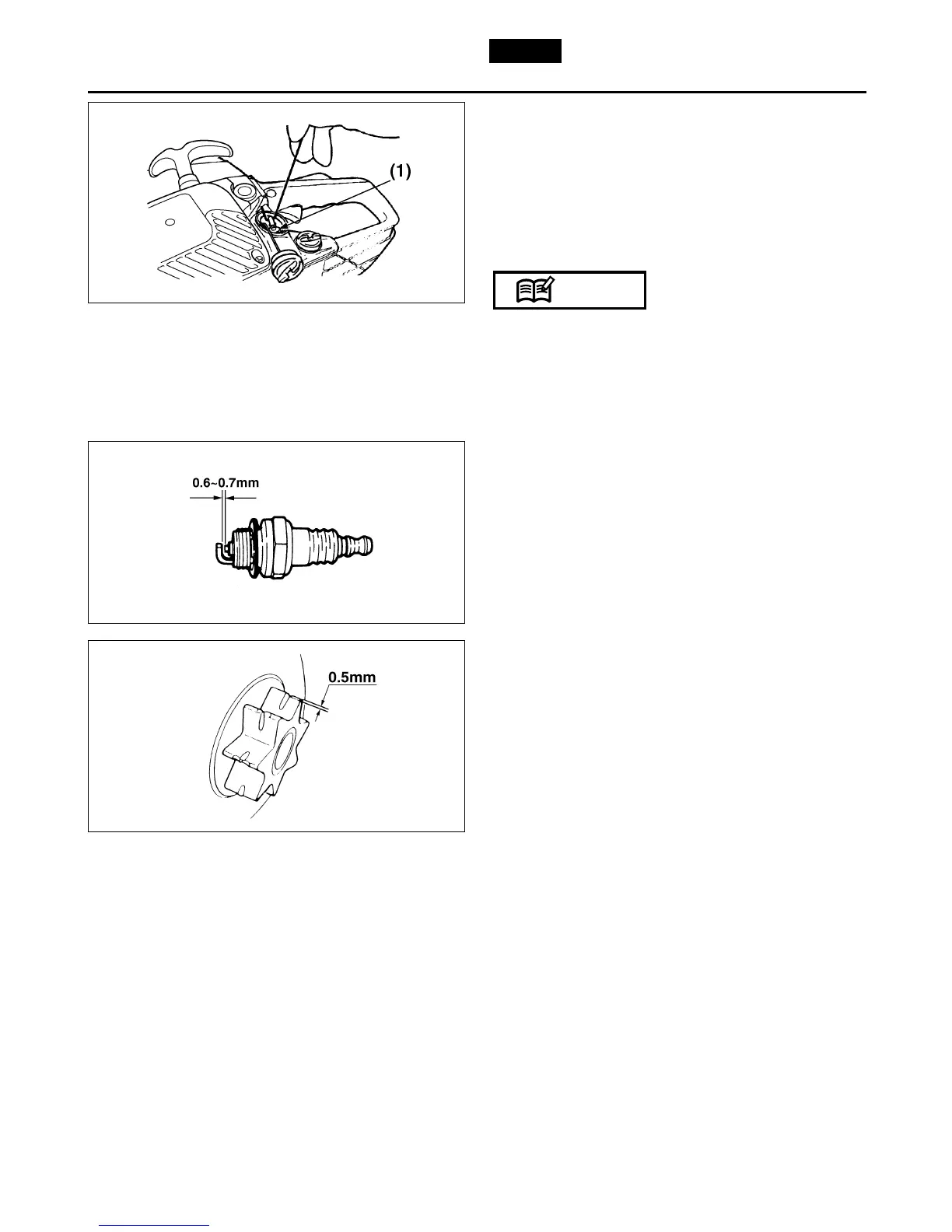

4. Fuel filter
(a) Using a wire hook, take out the filter from the filler
port. (F10-8)
(1) Fuel filter
(b) Disassemble the filter and wash with gasoline, or
replace with new one if needed.
• After removing the filter, use a pinch to hold the end
of the suction pipe.
• When assembling the filter, take care not to allow
filter fibers or dust inside the suction pipe.
5. Spark plug
Clean the electrodes with a wire brush and reset the
gap to 0.65 mm as necessary. (F10-9)
NGK CMR7H
6. Sprocket
Check for cracks and for excessive wear interfenng
with the chain drive. If the wearing is found obviously,
replace it with new one. Never fit a new chain on a
worn sprocket, or a worn chain on a new sprocket.
(F10-10)
