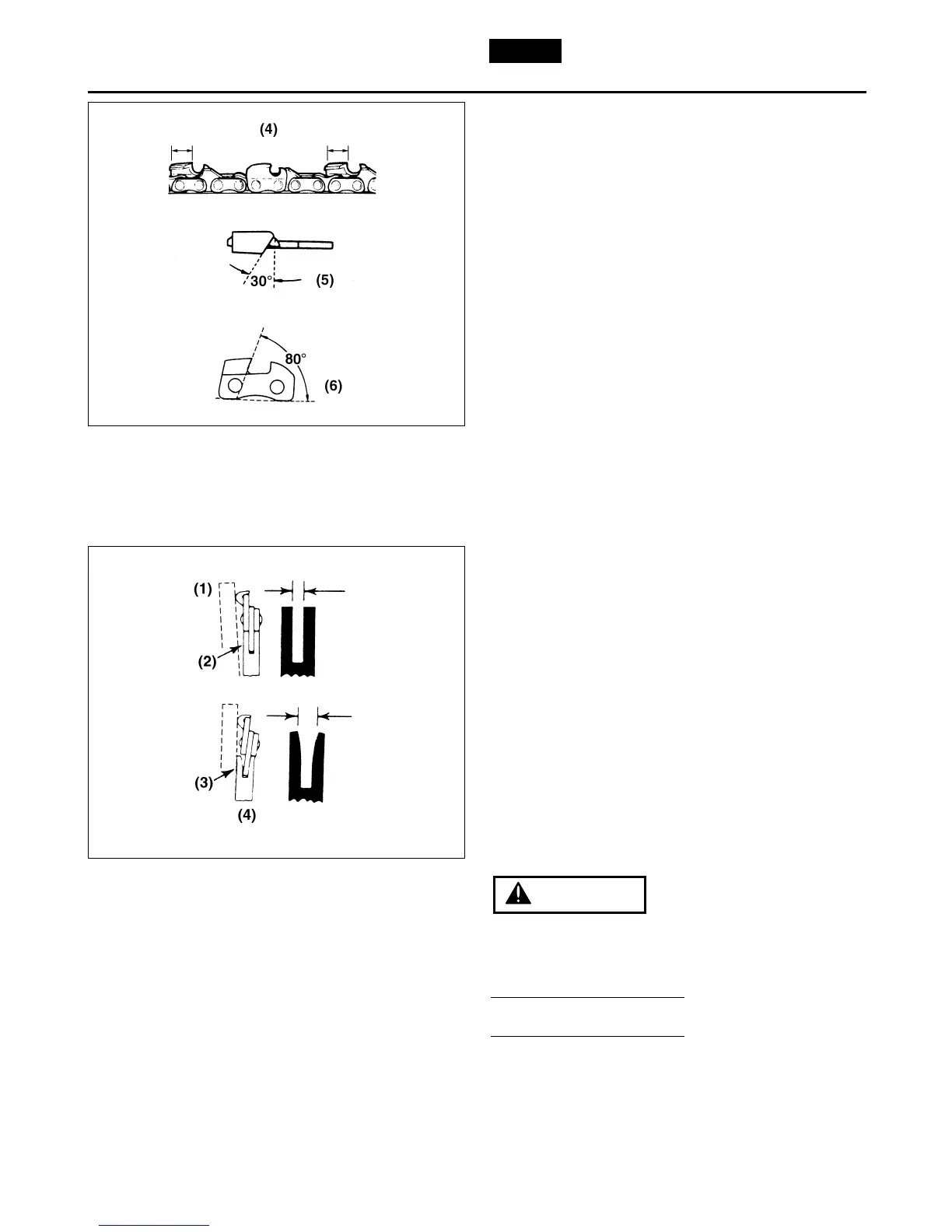

Make sure every cutter has the same length and edge
angles as illustrated. (F11-5)
(4) Cutter length
(5) Filing angle
(6) Side plate angle
■ GUIDE BAR
•Reverse the bar occasionally to prevent partial
wear.
• The bar rail should always be a square. Check for
wear of the bar rail. Apply a ruler to the bar and the
outside of a cutter. If a gap is observed between
them, the rail is normal. Otherwise, the bar rail is
worn. Such a bar needs to be corrected or replaced.
(F11-6)
(1) Ruler
(2) Gap
(3) No gap
(4) Chain tilts
This saw is equipped with one of the following low
kickback bar/chain combinations:
Model GZ400
18" Bar : 6712-41011
18" Chain : 6712-58001
