RedMax HB250 - Page 18

Key# Part Number Description Q'ty
1 848-L0F-55A1 VOLUTE CASE 1
2 848-L0F-55B0 VOLUTE COVER 1
3 T4970-52000 SCREW TORX 12
4 6811-11130 GURD NET 1
5 6811-11170 SCREW 1
6 6811-11160 STOPPER 1
7 6811-11150 LEVER 1
8 6811-72200 SWITCH 1
9 848-L0F-31A0 ENGINE COVER 1
10 T4960-53510 SCREW TORX 4
11 6811-12110 FAN 1
12 1650-43230 182301 NUT 1
13 6811-12220 WASHER 2
14 848-L0F-90S0 LABEL, CAUTION 1
15 848-L0F-90C0 LABEL, RECOIL 1
Key# Part Number Description Q'ty
16 6811-51211 PIPE CT2-18 1
17 6811-51220 PIPE, END CT2-19 1

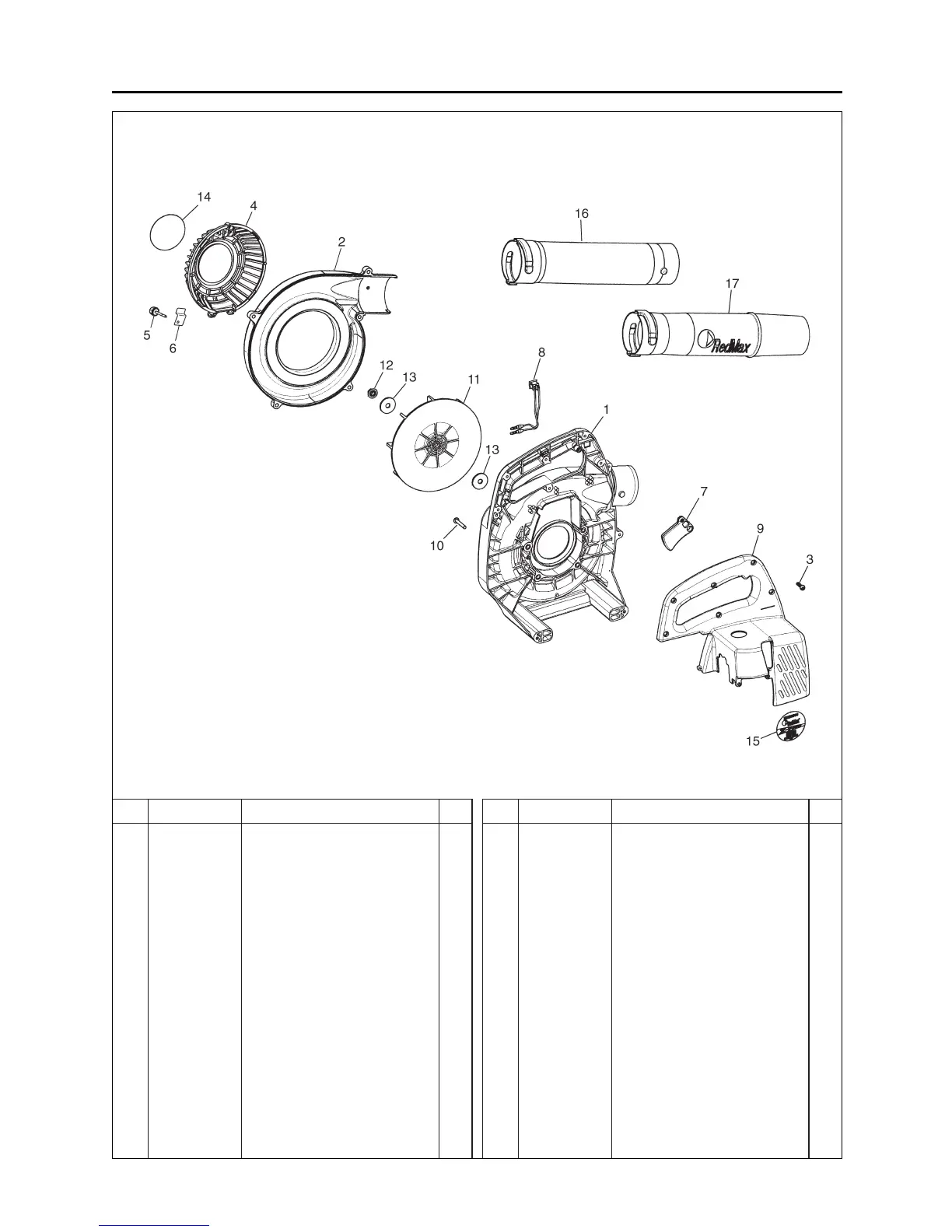

Fig.2 BLOWER GROUP HB250
