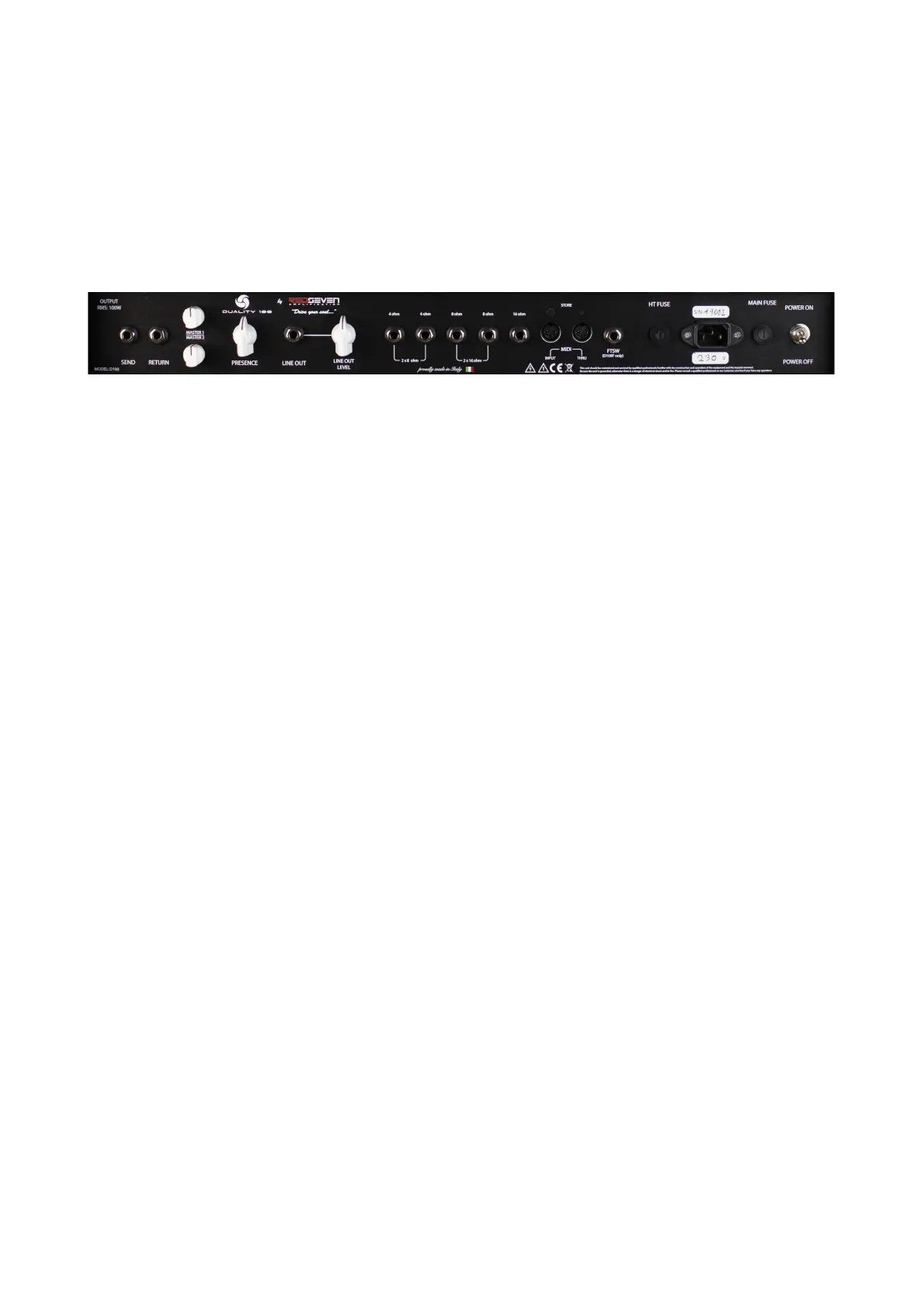

REAR PANEL
(from left to right)
• SEND & RETURN: Connection between pre amp and power amp. D100 is
shipped with pedal friendly signal level.
• MASTER ½: Master volume controls.
• PRESENCE: global setting for presence control. It acts on every channel.
• LINE OUT: jack and level pot for line out signal, taken from the output jacks.
Please remember you MUST use a cabinet anytime in conjunction with this
output. Using Line Out by itself without any load will damage this amplifier.
• OUTPUT: output jacks for connect the amp to cabinets. Please read carefully the
impedance before connect your cabinets.
• MIDI IN & MIDI THRU: sockets for midi communications. Midi IN receive midi
signal, Midi THRU left midi signal pass thru without modify original messages.
• FOOTSWITCH: input jack for Duality D100F footswitch. Pay attention: others
footswitches can damage the amp.
• STORE SWITCH: tactile switch for saving combinations of sounds into amplifier
digital memory.
• HT FUSE: (1A slo blow) high current fuse. Replace ONLY with same type.
• MAIN FUSE: (2.5A slo blow) input voltage fuse. Replace ONLY with same type.
• IEC SOCKET: connect power cable here.
• POWER ON / POWER OFF SWITCH: turn the amplifier on or off.
