INSTALLATION
REDZONE
TM

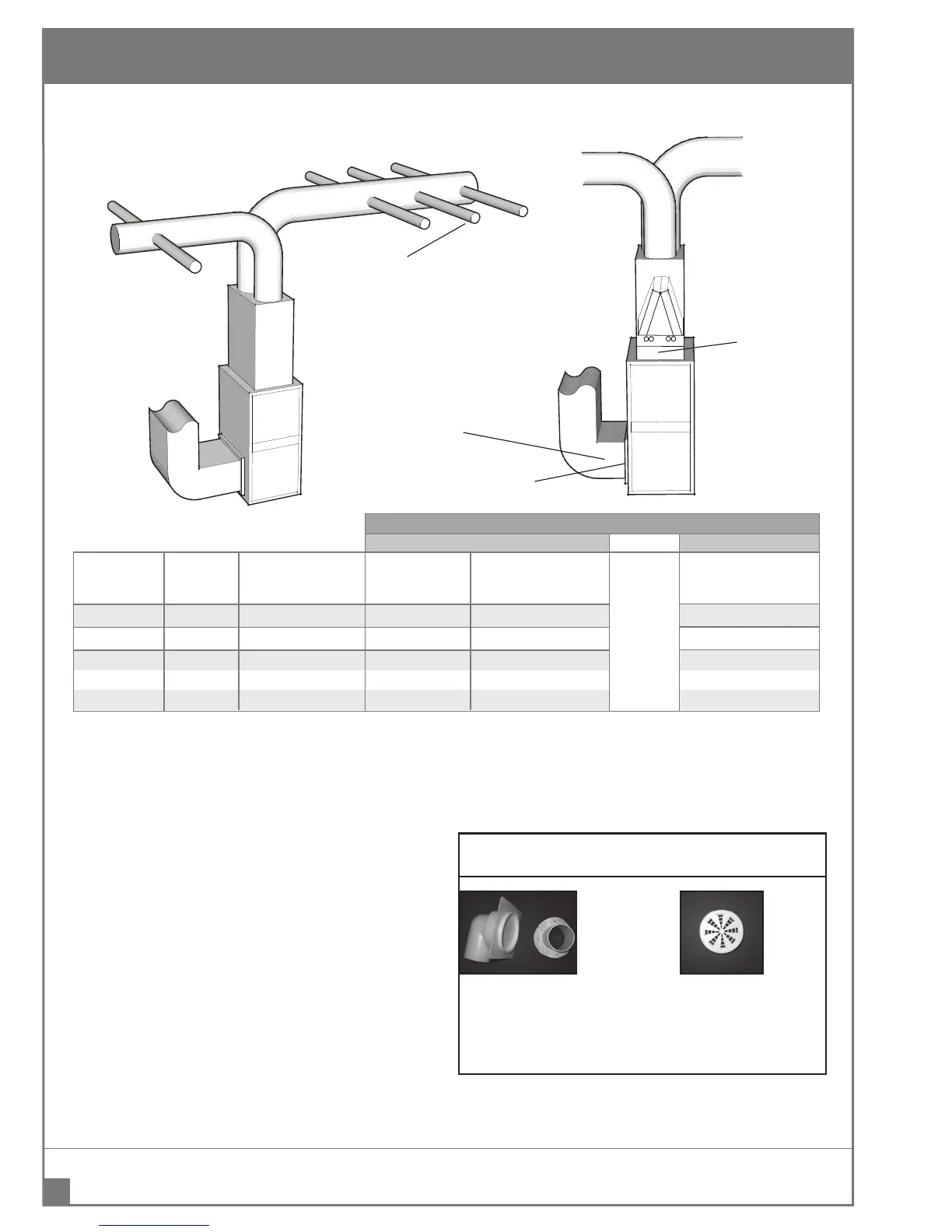

DVS SERIES AIR HANDLER MANUAL
NO MORE THAN
0.6” H
20 SUPPLY
SIDE EXTERNAL
STATIC
FILTER RACK
(SUPPLIED WITH UNIT)
NO MORE THAN
0.2” H
2O RETURN SIDE
EXTERNAL STATIC
3“ FLEX DUCT
SEE ACCOMPANYING CHART FOR TYPICAL
NUMBER OF 3” DUCTS REQUIRED
TYPICAL DUCTING USING 3” DIAMETER FLEX
METHOD A METHOD B
TYPICAL MAIN MINIMUM # TYPICAL # OF 3” DIA. MAXIMUM EXT.
MODEL TYPICAL DUCT DIAMETER OF 3” DIA. FLEX FLEX DUCT RUNS STATIC ON
CFM OR EQUIVALENT DUCT RUNS AT 6-10 FEET EACH SUPPLY SIDE
DVS400 400 6“ + 6” 8 10 0.6” H2O
DVS600 600 8“ + 6” 12 14 0.6” H
2O
DVS800 800 8” + 8“ 16 18 0.6” H
2O
DVS1000 1000 8” + 10“ 20 22 0.6” H
2O
DVS1200 1200 10” + 10“ 24 26 0.6” H
2O
OR
TYPICAL DVS MID-V INSTALLATION WITH A-COIL
BRANCH DUCTWORK
After the floor and ceiling holes have all been located
and drilled, it’s time to install the 3” branch ducts. Run
the 3” duct parallel to the joists whenever possible as this
takes less space. The 3” duct should then be fastened to
the joist with strapping material. If the 3” duct is in an
unconditioned space, it must be insulated to local code
then all connections must be tapped to ensure a continuous
vapor seal. Do not damage the vapor barrier on the 3” duct.
If it is damaged, the holes must be taped with foil tape.
If possible run the 3” duct between the insulation and
the vapor barrier. Use of non-insulated ductwork can be
used in conditioned spaces.
Theminimumlengthof3”ductis5’andthemaximum
idealis15’.Ifarunisshorterthantheexlength,
then the 3” duct can be coiled in the cavity. The minimum
bend radius is 4”. When installing a branch duct with
aminimumradiusensuretheductisextendedfully
to allow full airflow through the elbow.
Pleasedonotabusethe3”exasthehelixwillcrush
and unravel.
The RedZone
TM
DVS Air Handler was tested with the
above fittings. Use of other fittings may result in
improper air flow and air noise.
RZROUGHKIT
Rough-in Assembly
including Elbow,
Saddle and Dust
Cap
RZGRILL
Round Grill
including
Damper
NOTICE
To Next Page
