RedZone DVS1200 - Physical Data

5
UNIT SIZE
A B C D E F G H
in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm
DVS400 17 432 23 584 35.5 902 20 508 12 305 18 457 11 279 10 254
DVS600 17 432 23 584 35.5 902 20 508 12 305 18 457 11 279 10 254
DVS800 17 432 23 584 35.5 902 20 508 12 305 18 457 11 279 10 254
DVS1000 21.25 540 23 584 43.75 1111 20 508 16 406 18 457 15 381 14 356
DVS1200 21.25 540 23 584 43.75 1111 20 508 16 406 18 457 17 432 16 406
Table 1 – Physical Data

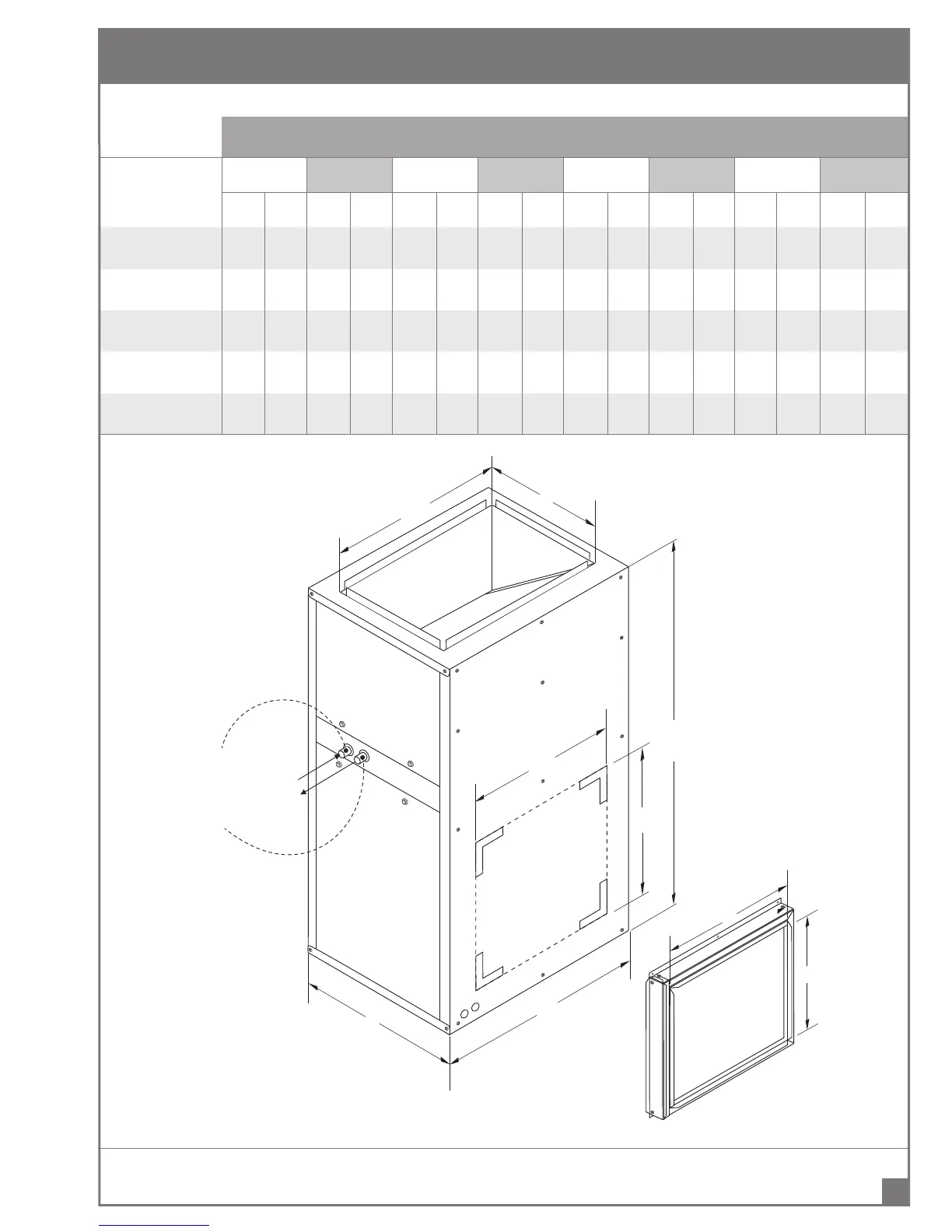

DIMENSIONS
REDZONE
TM
DVS SERIES AIR HANDLER MANUAL
E
D
A
18 "
Water In
Water Out
1/2” Dia. Pipe
1/2” Dia. Pipe
B
C
H
F
G
FIGURE 2
