Reece HIDEAWAY - INSTALLATION INSTRUCTIONS

HIDEAWAY
ACTIVE SENSOR-FLUSH URINAL
Plumbers, please ensure a copy of the installation
instructions is left with the end user for future reference
HIDEAWAY
ACTIVE SENSOR-FLUSH URINAL
INSTALLATION INSTRUCTIONS
1.0 Check contents of packaged unit:
- Flush control unit is fitted with short 100mm cables for sensor and power and 1500mm long cable for solenoid flush valve
connection
- Solenoid valve is fitted with 200mm cable and 2 pin connector (Fig. 1)
- Cables are supplied as follows:
 Sensor extension cable 2500mm long with female/male 4 pin connectors
 1800mm power cable wired with single male connector one end and other end hard wired to a transformer/power
supply (AC adaptor 240V AC/6V DC)
- Flush valve kit (Fig. 2) consisting of an isolation/shutoff valve,
solenoid valve and vacuum breaker/air break
- Active urinal complete with paper template, wall mounting brackets and screws
Note: Optional battery powered model is also available
Flush
control unit

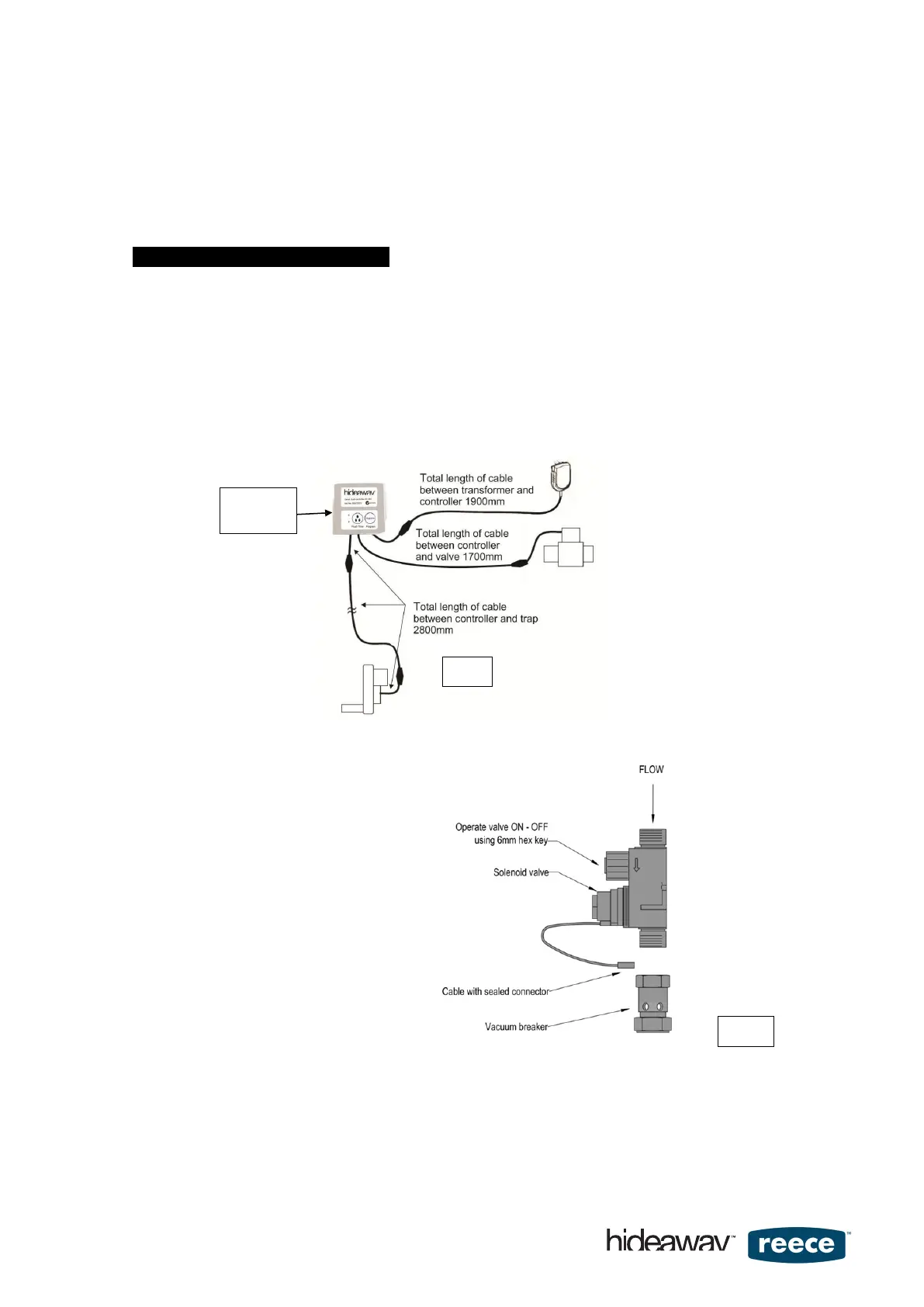

Fig. 1
Fig. 2
page 2 of 16
