HIDEAWAY
ACTIVE SENSOR-FLUSH URINAL
Plumbers, please ensure a copy of the installation
instructions is left with the end user for future reference
HIDEAWAY
ACTIVE SENSOR-FLUSH URINAL
8.0 Installation Types:
Use the following figures to provide installation guidance:

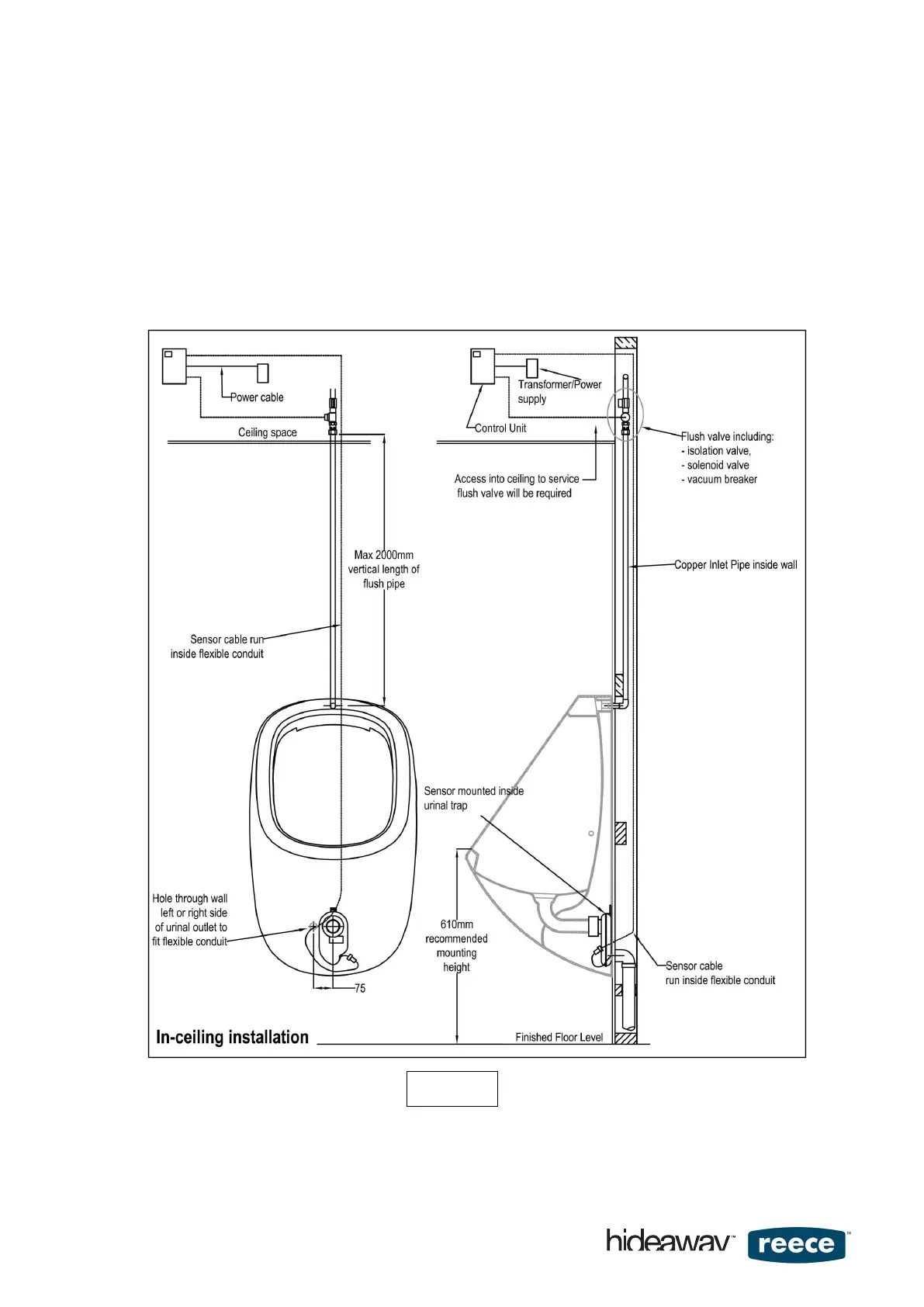

Fig. 11 In-ceiling installation
Fig 12 In-duct installation
Fig 13 In-wall installation
page 9 of 16
