REED B Series - Hydraulic Agitator Cont

B20HPC-SKE-V25
PARTS
B20HPC-SKE-V-25 52 of 56
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
909-287-2100
HYDRAULIC AGITATOR CONT.
ID #
PART #
PART DESCRIPTION
QUANTITY
1
GREASE FITTING, 1/8” NPT STRAIT
1
EA
2
70219
REMIX SHAFT BUSHING
1
EA
3
77877
SPACER, REMIX
1
EA
4
86824
FLAT WASHER, ¾” SAE
1
EA
5
70214
IDLER SHAFT, AGITATOR
1
EA
6
70210
IDLER BREARING HOUSING
1
EA
7
80030
HEX NUT-M20X2.5 PLATED
1
EA

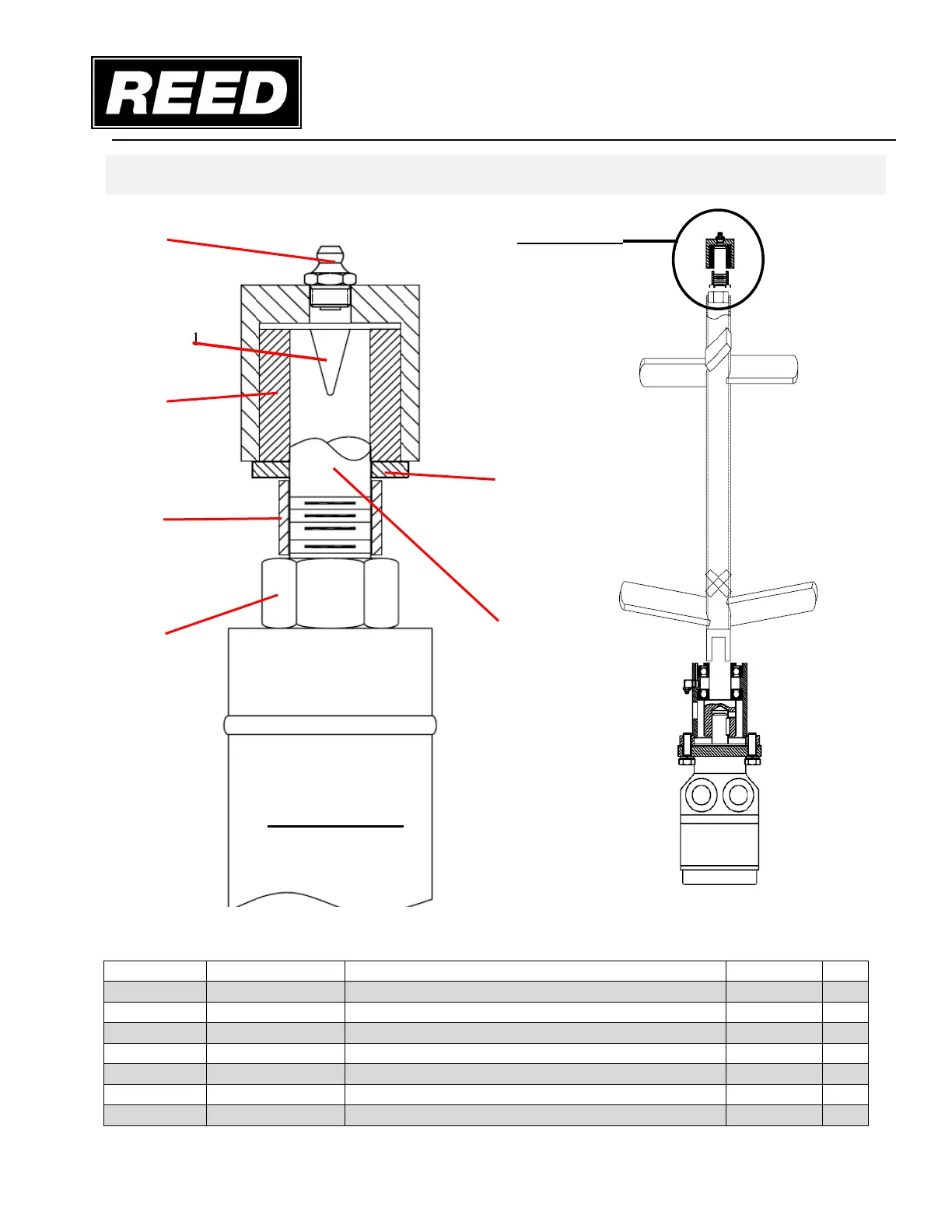

DETAIL G
1
2
3
5
4
6
NOTE* Install
Grove as shown
DETAIL G
