REED EHTP500 - EHTP Models Parts List

POWER HYDROSTATIC TEST PUMP OPERATING INSTRUCTIONS

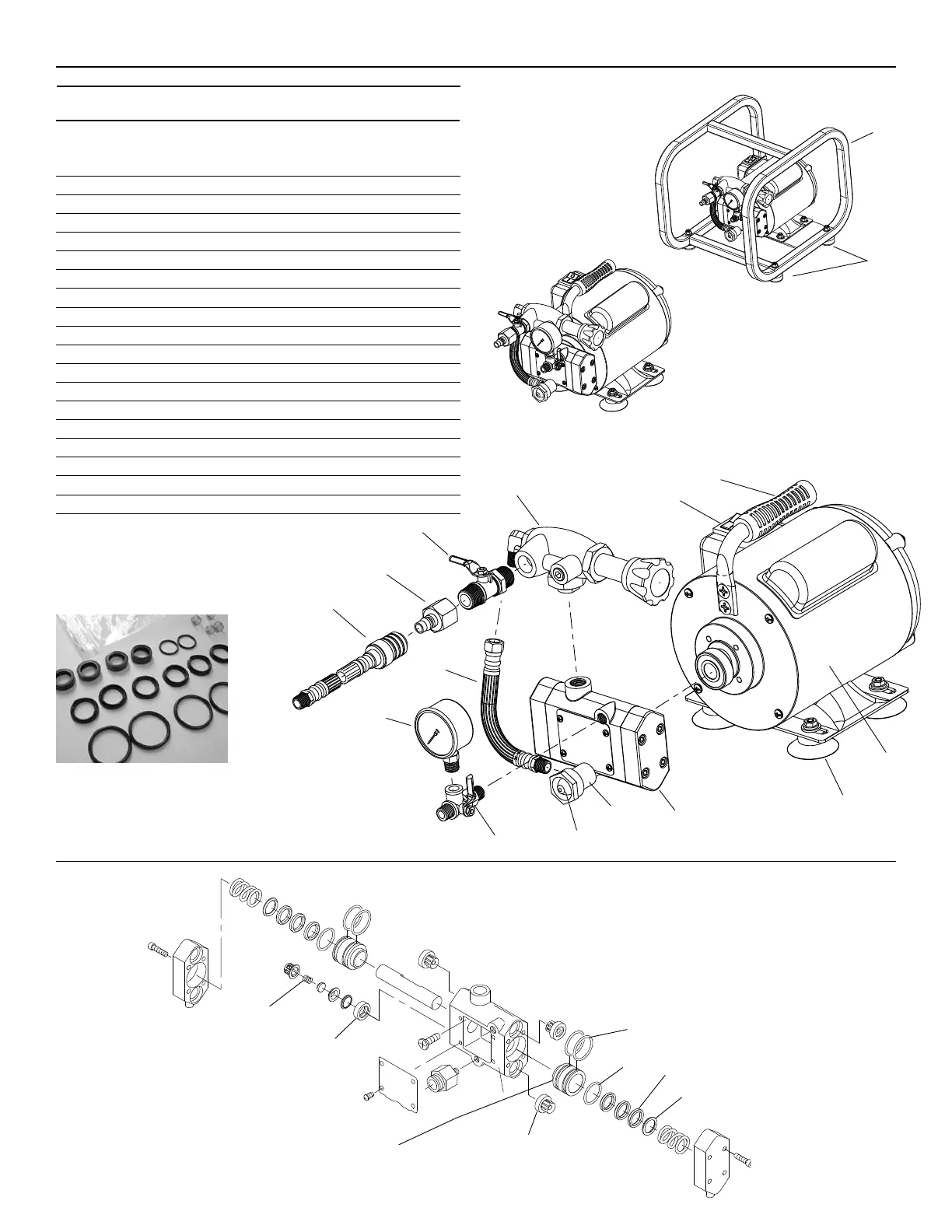

PARTS DIAGRAM OF PUMP
SEAL KIT PARTS QTY
1. External O-Ring 4
2. Internal O-Ring 2
3. Seals 6
4. Spring 4
5. Seal 4
Piston
Seals
BrassWasher
Not Included
Check
Valve
1
2
3
4
5
Check
Valve
Only Requires 2 of Item 1.
Do Not Remove Brass Piston Bushings.
4
7
4
10
5
1
2
3
6
8
13
14
15
9
16
17
EHTP500C
or EHTP500CE
EHTP500
or EHTP500E
11
12
Parts List for EHTP
See also RP-99
EHTP500 EHTP500C
EHTP500E EHTP500CE
Ref. No. Description Item Code Item Code Qty.
1 Bypass Hose 48183 48183 1
2 Pressure Gauge 48185 48185 1
3 High Pressure Output Hose 08172 08172 1
4 Regulator Assembly 48189 48189 1
5A* Motor Assembly 110V. 48187 48187 1
5B* Motor Assembly 220V. 48196 48196 **
6 Pump Assembly 48188 48188 1
7 Seal Kit 48181 48181 1
8 Pump Feet 48190 — 4
9 Carrying Handle 48191 — 1
10 Electric Switch / Cover 48193 48193 1
11 Cage Feet — 48186 4
12 Cage With Feet — 48195 1
13 Male Quick Connect 48200 48200 1
14 High Pressure Valve 48201 48201 1
15 3-Way Valve 48202 48202 1
16 Hose Washer With Screen 98180 98180 1
17 Intake Hose Fitting 48204 48204 1
* Motor Assembly also includes #8, #9 and #10.
** Choose the proper voltage.
