5. The system is now isolated.
A. The hose can quick disconnect from the pump and remain
with the system being tested, if necessary, so that the
pump can be used to test another system or stored.
WARNING: Protect the pump from freezing. Store and
transport in a warm place. Or use food grade propylene
glycol in the pump to guard against freezing.
Safety and Precautionary Instructions:
 •DonotuseadamagedorwornHighPressureHose.
 •Donotrunthepumpwithoutawatersupply.
 •Beforestoringthepump,ushitwithcleanwaterand 
then operate it with a solution of water and food grade
propylene glycol to protect and lubricate the internal parts.
TROUBLESHOOTING
Pump Loses Pressure: Do not run the pump without the washer
screen #98180 in the intake. Debris may cause damage to the
pump or may cause the pump to loose pressure. If the pump does
not build pressure, there may be debris lodge in the check valves.
There are two check valves under each end cap. Remove the end
caps using a 5mm hex wrench and inspect the check valves. If the
issue is not solved, the pump seals may have to be replaced using
Seal Kit #48181.
PERIODIC MAINTENANCE:
Every 100 hours, inspect and lubricate the piston and bearing.
This is behind the front cover plate of the pump. To access this
area, remove the four screws and take off the cover plate. Do not
remove the front cover plate while the pump is plugged in or run-
ning. Never run a pump without reinstalling the front cover plate.
Lubricate with a water resistant, all-purpose lithium grease.
POWER HYDROSTATIC TEST PUMP OPERATING INSTRUCTIONS
3
DPHTP500 DRILL POWERED MODELS
Drill Motor Recommendations
Corded drill with ½” chuck, or ½” cordless 18V or
higher drill, capable of 1500 RPM
Pump Specifications
Adjustable Pressure up to a Maximum of 500 psi
(34 bar - kg/cm2)
1.3 gallons per minute (4.5 liters/min)
Air bleed-off valve (for easier pump priming and draining)
EHTP500 ELECTRIC MODELS
Motor Specifications
UL Certified
3/4 HP 0.55KW Single Phase Induction
Voltage: 110/220V
Amperage: 12/6.2A
Frequency: 50/60 Hz.
Pump Specifications
Adjustable Pressure up to a Maximum of 500 psi
(34 bar - kg/cm2)
2 gallons per minute (7 liters/min)
Air bleed-off valve (for easier pump priming)
See also RP-124

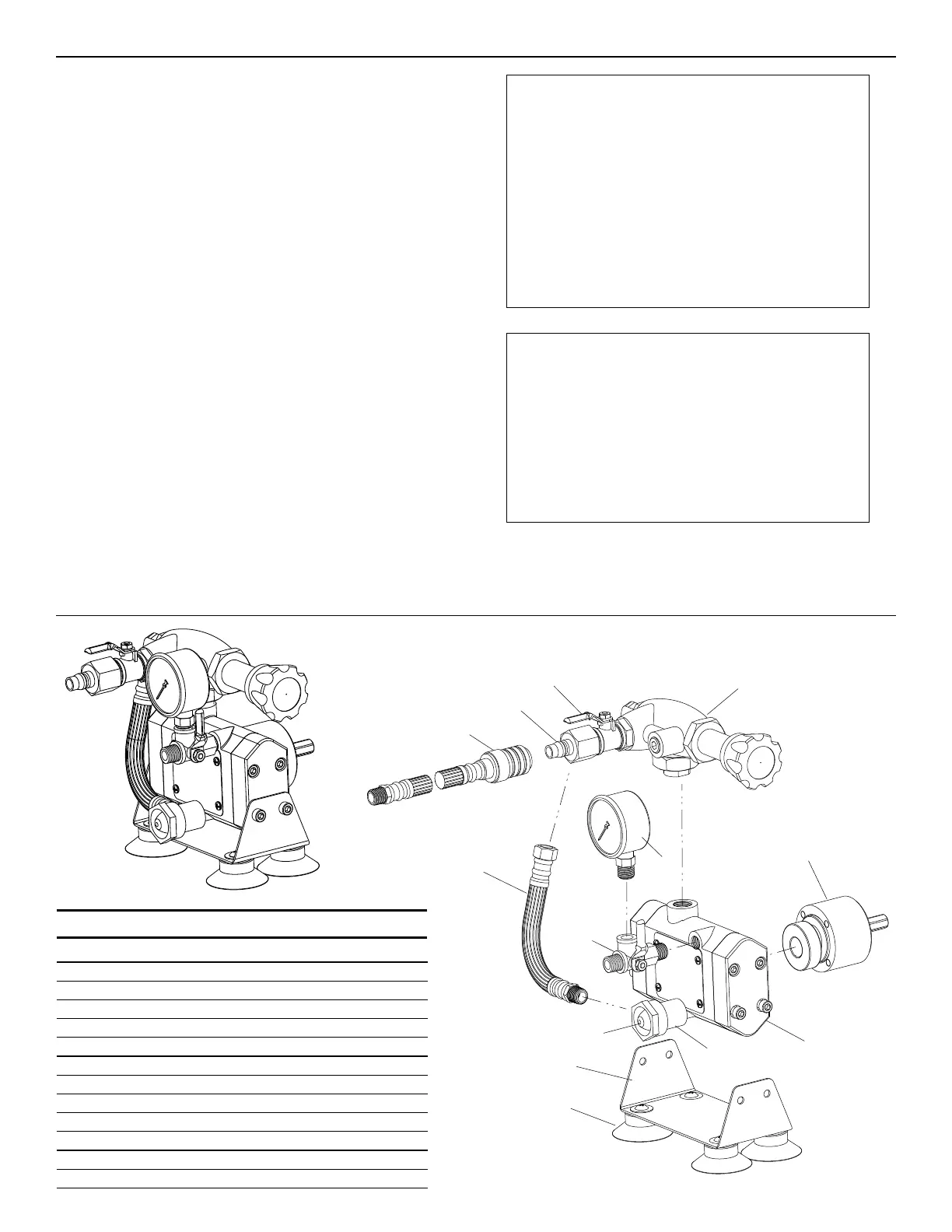

Ref. No. Description Item Code Qty. Used
1 Bypass Hose 48183 1
2 Pressure Gauge 48185 1
3 High Pressure Output Hose 08172 1
4 Regulator Assembly 48189 1
5 Pump Assumbly 48188 1
6 Seal Kit (Not Shown) 48181 1
7 Pump Feet 48190 4
8 1/2” Male Quick Connect 48200 1
9 1/2” High Pressure Valve 48201 1
10 3-Way Valve 48202 1
11 Hose Washer/Screen 98180 1
12 Intake Hose Fitting 48204 1
Parts List for DPHTP500
4
ALOJAMIENTO DE COJINETES
BASE
1
2
3
5
7
8
9
10
11
12
DPHTP500
BEARING HOUSING
