Use of the mixer in a crawler:
In a crawler where every chain is controlled via a dedicated motor with speed controller, channel 2 "CH2" and channel
3 "CH3" can be used for driving. The control then takes place with the two control levers and the mixing function can
be switched off. When both control levers are in the centre positions, the vehicle is standing still (see upper illustration
in gure 14). If connected correctly, the two drive chains run as the two control levers at the transmitter are moved.

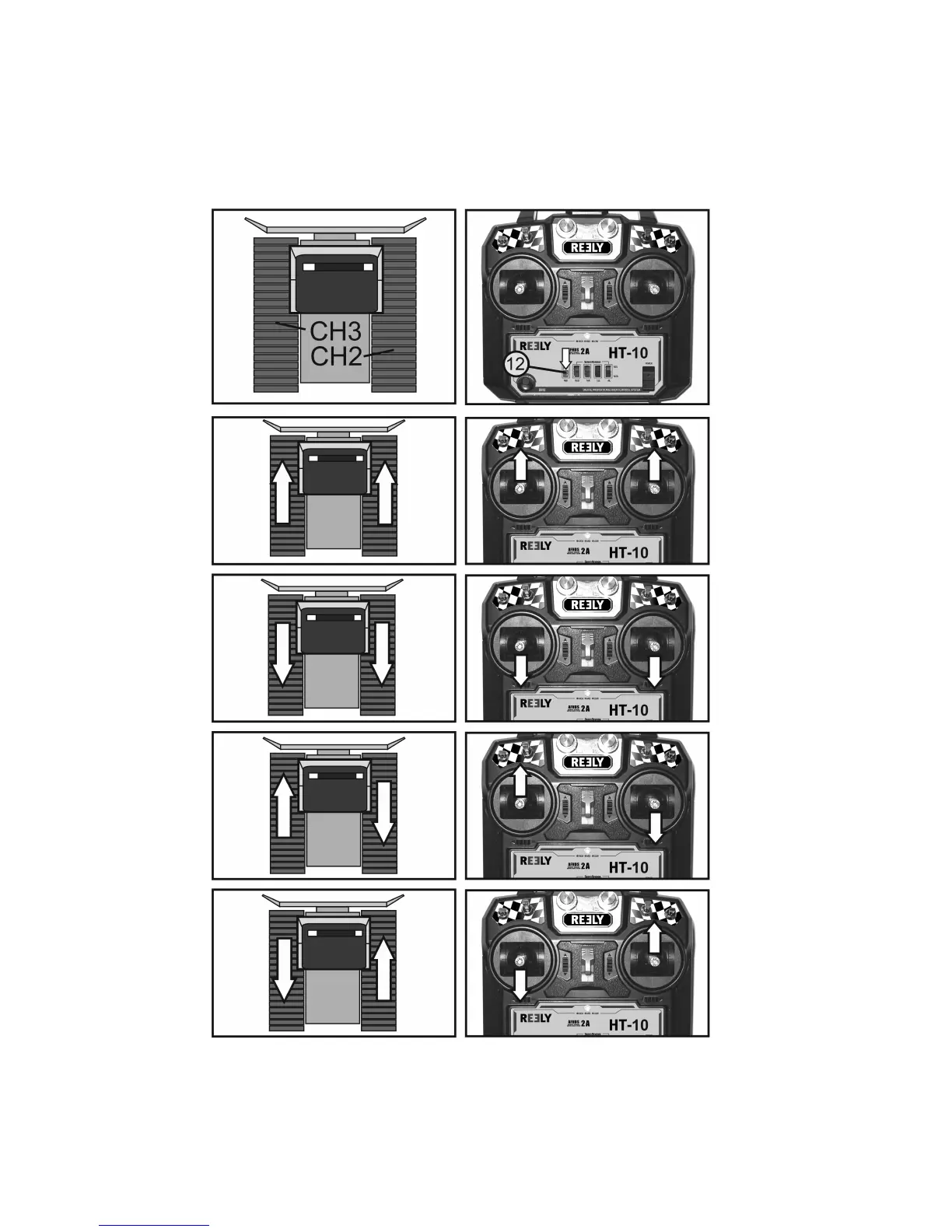

Figure 14
