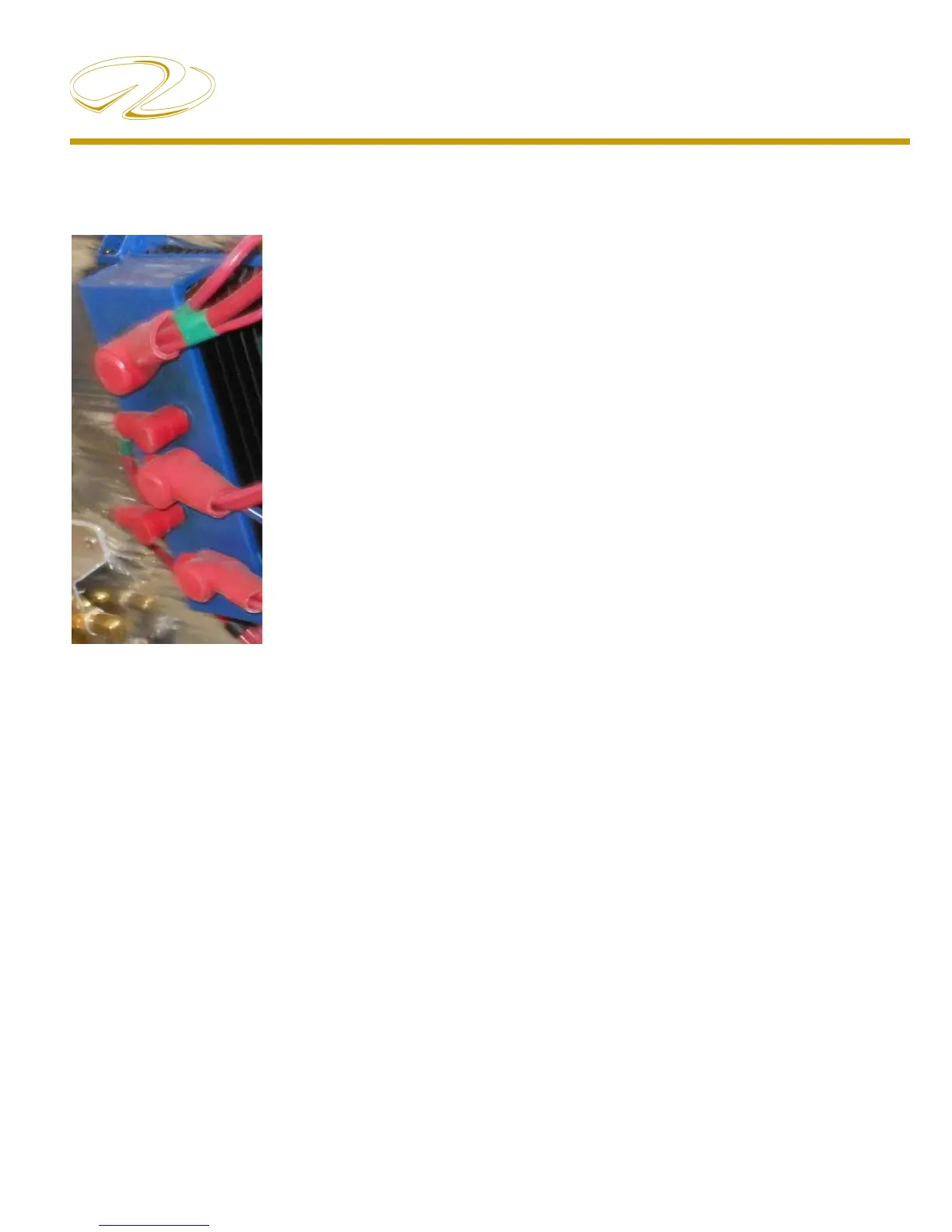

TYPICAL BATTERY ISOLATOR
The battery isolator is locat-
ed aat the fi rewall bulkhead
beside the battery charger.
The battery isolator is a solid
state electronic device con-
taining diodes which work
in conjunction with the
battery charger to keep each
battery charged as needed.
The diodes act as an elec-
tronic “gate” opening and
closing as needed. When
a battery is fully charged
the gate closes and battery
current will be routed to an
open gate which is in fact
one of the other batteries
needing a charge. This cycle
continues depending on
which battery or batteries
will need a charge.
Periodically check the isolator for loose connections and
make sure each red “boot” in on its post securely. No other
maintenance is normally required.
