TYPICAL AIR CONDITIONING SYSTEM
Overview
The current air conditioning dual zone system features
a total output of 18,000 BTU’s (British Thermal Units).
The system utilizes a single 230 volt pump which delivers
cooler seawater to the evaporator/condenser found under
the main cabin/salon fl oor. Warmer seawater exits the boat
through a manifold and various thru-hull fi ttings.
The evaporator/condenser unit incorporates a compressor
to compact the R-22 refrigerant.
The Elite control panel (thermostat) for the air condi-
tioning system is located in the main cabin (salon).

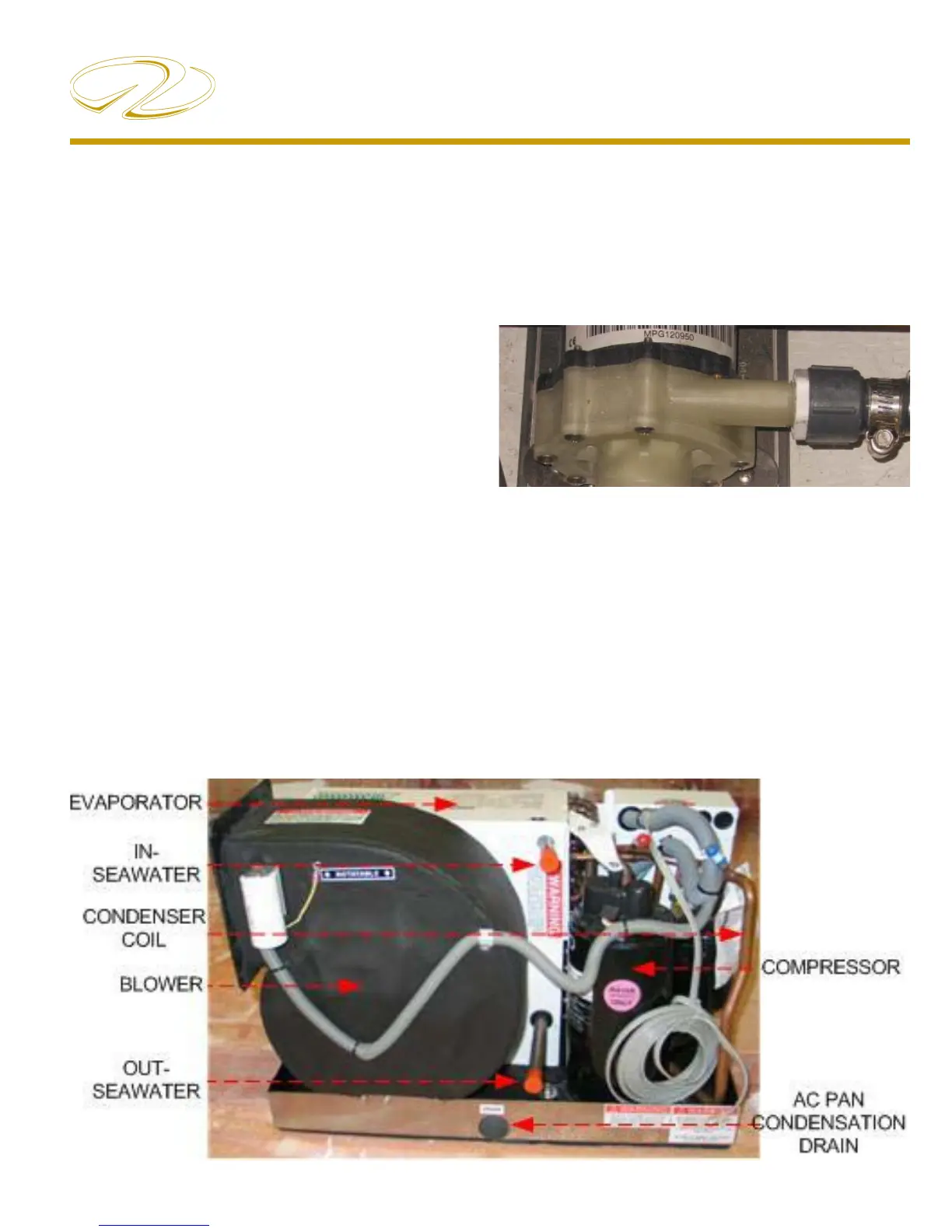

TYPICAL
AIR CONDITIONING EVAPORATOR/CONDENSER UNIT
TYPICAL A/C PUMP
